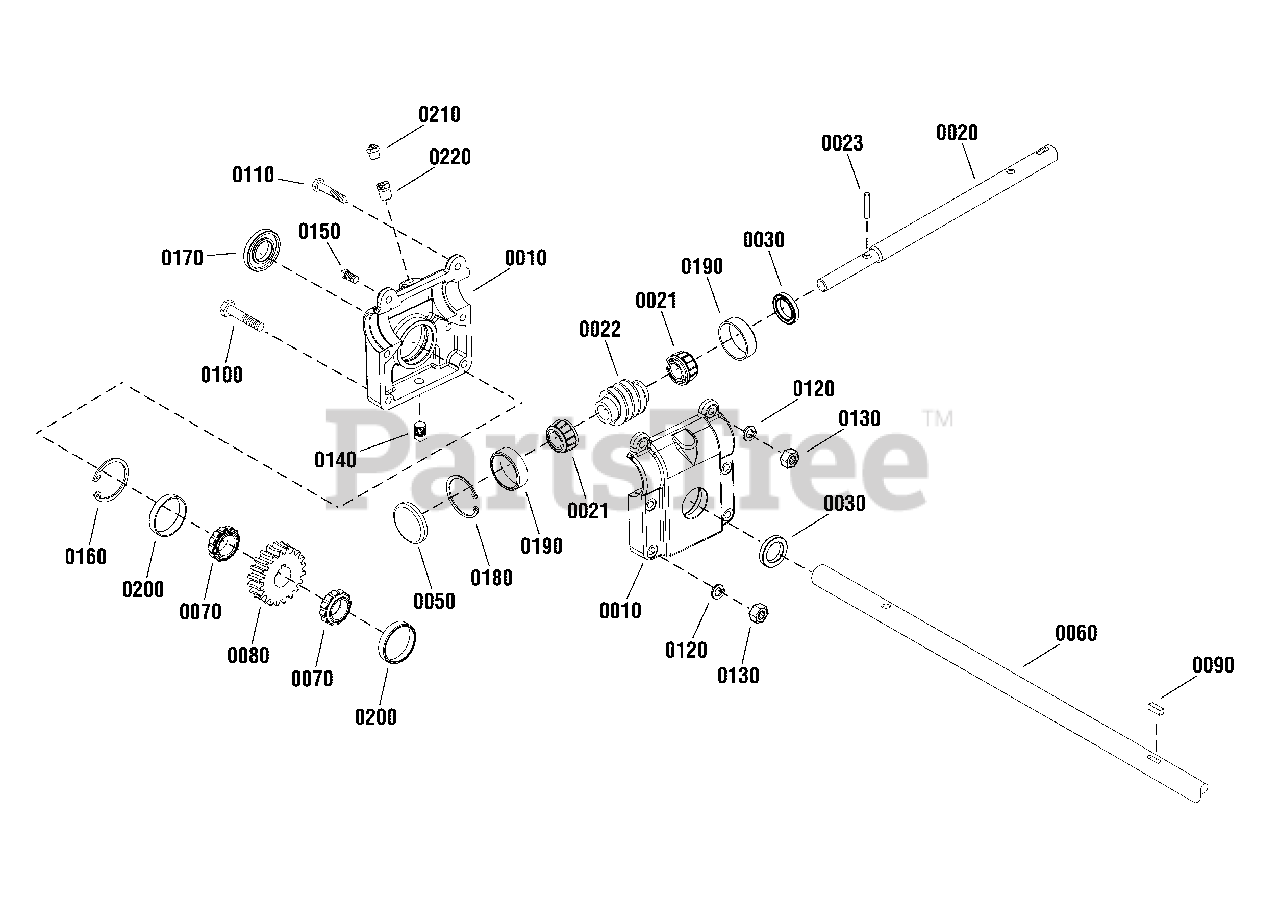

1696422-00 - Simplicity 47" Two- Stage Snow Thrower Attachment Gear Box & Shaft Assembly (1756181) Parts Diagram

47" Two- Stage Snow Thrower Attachment

Gear Box & Shaft Assembly (1756181) Parts Diagram

  • Title

0010

Simplicity 1709663SM

GEAR CASE (2-halves)

$672.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1721781SM

SHAFT, Input, 18.23"

$170.99

$

Usually ships in 2-12 days

0

0021

Simplicity 1709666SM

BEARING, Roller Tapered

$84.99

$

Usually ships in 2-12 days

0

0022

Simplicity 1756176YP

GEAR, Worm,10:1

$173.99

$

In Stock, only 1 left!

0

0023

Simplicity 1720368SM

PIN, Groove

$9.49

$

In Stock, only 1 left!

0

0030

Simplicity 1709665SM

SEAL, Oil

$24.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1709668SM

PLUG

$9.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1709669SM

SHAFT, Auger, 46"

$176.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1709670SM

BEARING, Roller Tapered

$50.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1756563YP

GEAR, Worm,10:1

$204.99

$

In Stock, only 1 left!

0

0090

Simplicity 1725611SM

KEY, Parellel

$7.99

$

In Stock, only 1 left!

0

0100

Simplicity 703868

CAPSCREW, Hex Head, 5/16-18 X 2 1/2, GR 5

$4.99

$

In Stock, only 4 left!

0

0110

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 X 1 1/4, GR 5

$4.99

$

In Stock, Qty 12

0

0120

Simplicity 703116

LOCKWASHER, Split, 5/16

$3.49

$

In Stock, Qty 20+

0

0130

Simplicity 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 703122

PLUG,1/4-18 NPTF

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1668971SM

FITTING, Pipe

$4.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1709672SM

RING, Retainer

$7.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1709673SM

SEAL, Oil

$38.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1709674SM

RING, Retainer

$3.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1709675SM

RACE, Bearing

$28.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1709676SM

RACE, Bearing

$34.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1709635SM

VENT, Relief

$26.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1720489SM

BUSHING, 1/4

$8.49

$

Usually ships in 2-12 days

0
