1696422-00 - Simplicity 47" Two- Stage Snow Thrower Attachment Housing & Chain Case Group (991153) Parts Diagram

47" Two- Stage Snow Thrower Attachment

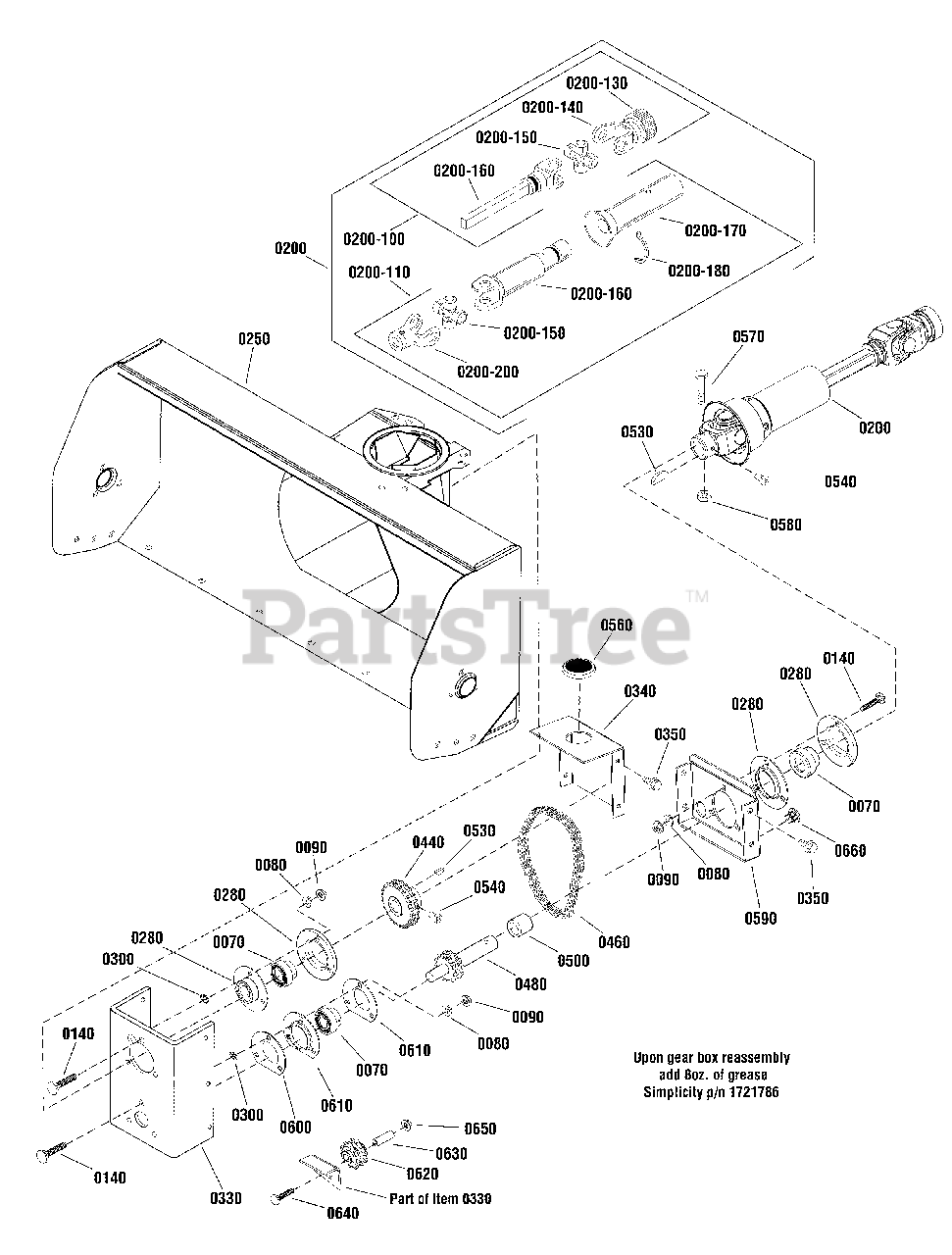

Housing & Chain Case Group (991153) Parts Diagram

  • Title

0070

Simplicity 1709624SM

BEARING

$60.99

$

In Stock, only 2 left!

0

0080

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0140

Simplicity 1931334SM

CARRIAGE BOLT, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

0200

Simplicity 1717484SM

SHAFT ASSEMBLY (Includes Ref. Nos. 1-3, 5-7)

$638.99

$

Usually ships in 2-12 days

0

0200-100

Simplicity 1718838SM

JOINT & SHAFT ASSEMBLY (Includes Ref. Nos. 1, 2, 3, & 38)

$426.99

$

Usually ships in 2-12 days

0

0200-110

Simplicity 1709348SM

DRIVE SHAFT JOINT&TUBE ASSEMBLY

$364.99

$

Usually ships in 2-12 days

0

0200-130

Simplicity 1718475SM

SPRING LOCK KIT

$46.99

$

Usually ships in 2-12 days

0

0200-140

Simplicity 1709350SM

YOKE ASSEMBLY, Spring Lock

$

$

Not available

0200-150

Simplicity 1679003SM

CROSS & BEARING KIT

$80.99

$

Usually ships in 2-12 days

0

0200-160

Simplicity 1718837SM

YOKE & SHAFT ASSEMBLY

$136.99

$

Usually ships in 2-12 days

0

0200-170

Simplicity 1709355SM

DRIVE SHAFT INNER GUARD

$146.99

$

Usually ships in 2-12 days

0

0200-180

Simplicity 1709352SM

DRIVE SHAFT NYLON REPAIR KIT

$13.99

$

Usually ships in 2-12 days

0

0200-200

Simplicity 1716877SM

YOKE

$76.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1756870AYP

HOUSING ASSEMBLY

$1709.99

$

Usually ships in 2-12 days

0

0280

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 2 left!

0

0300

Simplicity 703297

RETAINER, Pushnut

$3.99

$

In Stock, Qty 20+

0

0330

Simplicity 1757261AYP

BACKPLATE

$85.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1725461AYP

COVER

$

$

Not available

0350

Simplicity 703235

SCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0440

Simplicity 1756174YP

SPROCKET ASSEMBLY, 22 Teeth

$353.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1756173YP

CHAIN, Roller, #40 x 20

$22.99

$

In Stock, only 1 left!

0

0480

Simplicity 1756851YP

SHAFT, Input

$301.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1721769SM

SPACER, 1.002 ID X 1 1/4 OD X 1 1/4

$33.99

$

Usually ships in 2-12 days

0

0530

Simplicity 2822138SM

KEY, Hi-Pro

$9.99

$

In Stock, only 2 left!

0

0540

Simplicity 1930544SM

SCREW, Set, Hex, Cup Point, 5/16-18 x 3/8
(Superseded to 704033)

$4.49

$

Usually ships in 2-12 days

0

0560

Simplicity 1674020SM

PLUG

$4.49

$

In Stock, Qty 7

0

0570

Simplicity 704034

CAPSCREW, Hex Head, 1/4-20 x 1-7/8, GR5

$5.49

$

In Stock, only 1 left!

0

0580

Simplicity 703054

NUT, Hex Center Lock, 1/4-20, GR5

$4.49

$

In Stock, only 1 left!

0

0590

Simplicity 1757253AYP

CHAINCASE, Bottom

$27.99

$

Usually ships in 2-12 days

0

0600

Simplicity 1756854YP

SPACER, Flange

$

$

Not available

0610

Simplicity 1756855AYP

FLANGE, Bearing Short

$14.99

$

Usually ships in 2-12 days

0

0620

Simplicity 1757286YP

IDLER SPROCKET ASSEMBLY

$292.99

$

Usually ships in 2-12 days

0

0630

Simplicity 1757262YP

TUBE, Idler

$24.99

$

Usually ships in 2-12 days

0

0640

Simplicity 704035

BOLT, Carriage, Short Neck, 5/16-18 x 2

$4.49

$

In Stock, only 2 left!

0

0650

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0660

Simplicity 7024998YP

PLUG, 1"

$4.49

$

In Stock, only 1 left!

0
