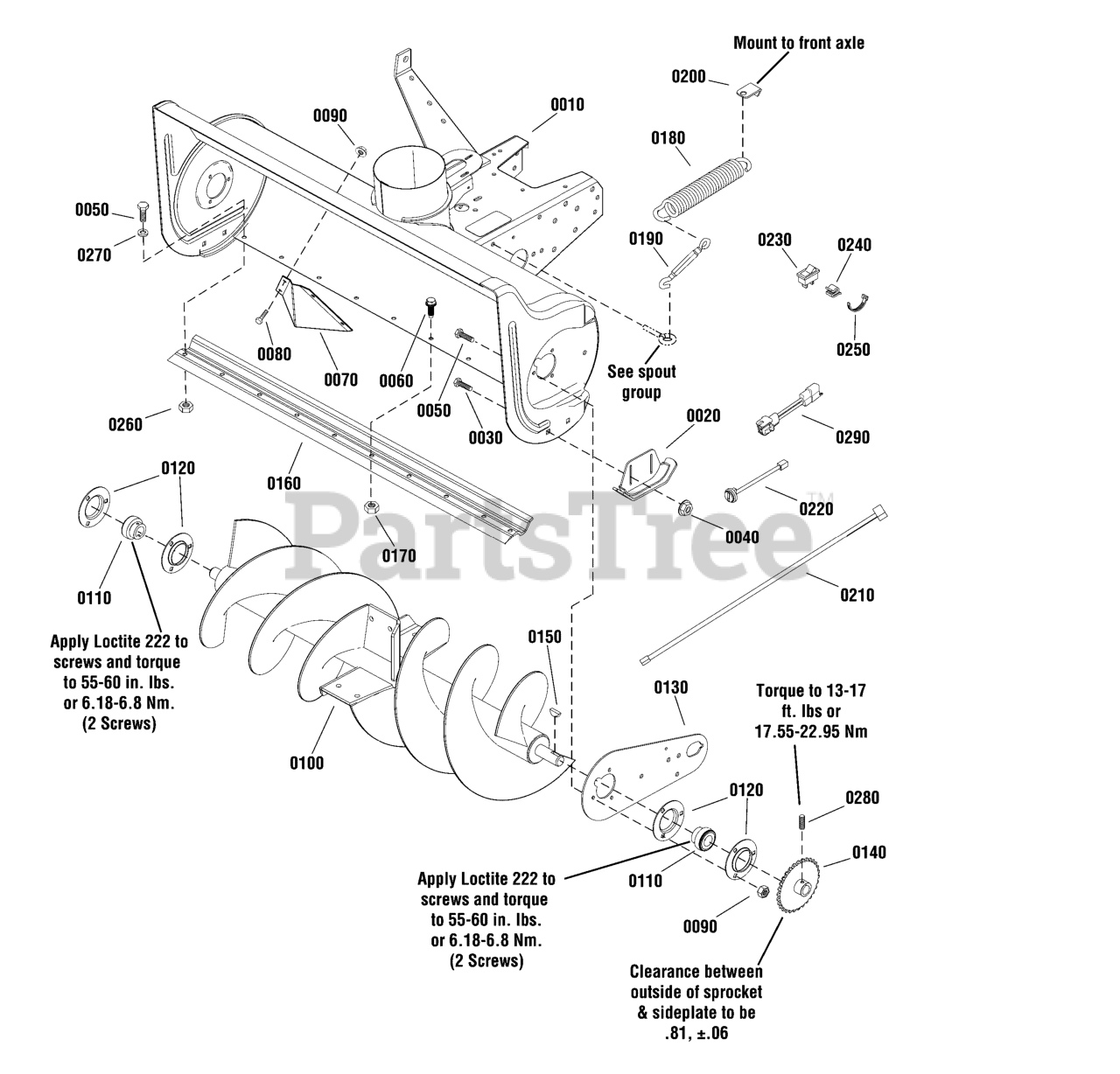

1696423-00 - Murray 42" Snow Thrower Attachment Body & Rotor Group (991170) Parts Diagram

42" Snow Thrower Attachment

Body & Rotor Group (991170) Parts Diagram

  • Title

0010

Murray 1732806ASM

BODY & FRAME ASSEMBLY, 42"

$

$

Not available

0020

Murray 1713424ASM

SKID ASSEMBLY, with Wear Strip

$57.99

$

Usually ships in 2-12 days

0

0030

Murray 703126

BOLT, Carriage, .38 - 16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 1921332SM

SCREW, Hex Head Cap, 5/16-18 X 3/4, GR5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0060

Murray 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0070

Murray 2106774ASM

DEFLECTOR

$31.99

$

Usually ships in 2-12 days

0

0080

Murray 703822

CAPSCREW, Hex Head, 5/16 - 18 x 5/8, G5

$4.49

$

In Stock, only 1 left!

0

0090

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.99

$

In Stock, Qty 20+

0

0100

Murray 1721840ASM

ROTOR ASSEMBLY, 42"

$866.99

$

In Stock, only 1 left!

0

0110

Murray 1733105SM

BEARING, W/Lock Collar

$61.99

$

In Stock, Qty 6

0

0120

Murray 2172278ASM

FLANGE, Bearing, (SN 1200 and above)

$11.99

$

In Stock, only 2 left!

0

0130

Murray 1676632ASM

PLATE, Side

$47.99

$

Usually ships in 2-12 days

0

0140

Murray 1756390AYP

SPROCKET, 24 Teeth
(Superseded to 1756390YP)

$86.99

$

Usually ships in 2-12 days

0

0150

Murray 2151040SM

KEY, Hi-Pro, HP-608

$9.99

$

In Stock, only 2 left!

0

0160

Murray 2106746ASM

SCRAPER, Body (1690513 Only) 42"

$168.99

$

In Stock, only 2 left!

0

0170

Murray 703954

NUT, Centrelock, 1/4-20, GR5
(Superseded to 703251)

$5.49

$

In Stock, Qty 12

0

0180

Murray 1675232SM

SPRING, Extension, 9" Long

$21.99

$

In Stock, only 3 left!

0

0190

Murray 1733145SM

TURNBUCKLE, 5/16 - 19 x 9-1/4

$59.99

$

Usually ships in 2-12 days

0

0200

Murray 1732992ASM

CLIP, Spring

$17.99

$

Usually ships in 2-12 days

0

0210

Murray 1733262SM

HARNESS, Wiring Spout Rotate, 42"

$35.99

$

In Stock, only 1 left!

0

0220

Murray 1733276SM

HARNESS, Wiring Motor/Trailer, 42"

$42.99

$

Usually ships in 2-12 days

0

0230

Murray 1724210SM

SWITCH, Rocker, Chute Rotator

$57.99

$

In Stock, only 3 left!

0

0240

Murray 2172434SM

CLIP, Wire, .390 Dia.

$4.99

$

Usually ships in 2-12 days

0

0250

Murray 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0260

Murray 703164

NUT, Hex Center Lock, 5/16-18, GRB

$3.49

$

In Stock, Qty 20+

0

0270

Murray 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0280

Murray 1928721SM

SETSCREW, Square Head, 5/16-18 x 1/2, G8

$4.99

$

In Stock, Qty 13

0

0290

Murray 1751630YP

HARNESS, Spout Rotator to Tractor

$32.99

$

Usually ships in 2-12 days

0
