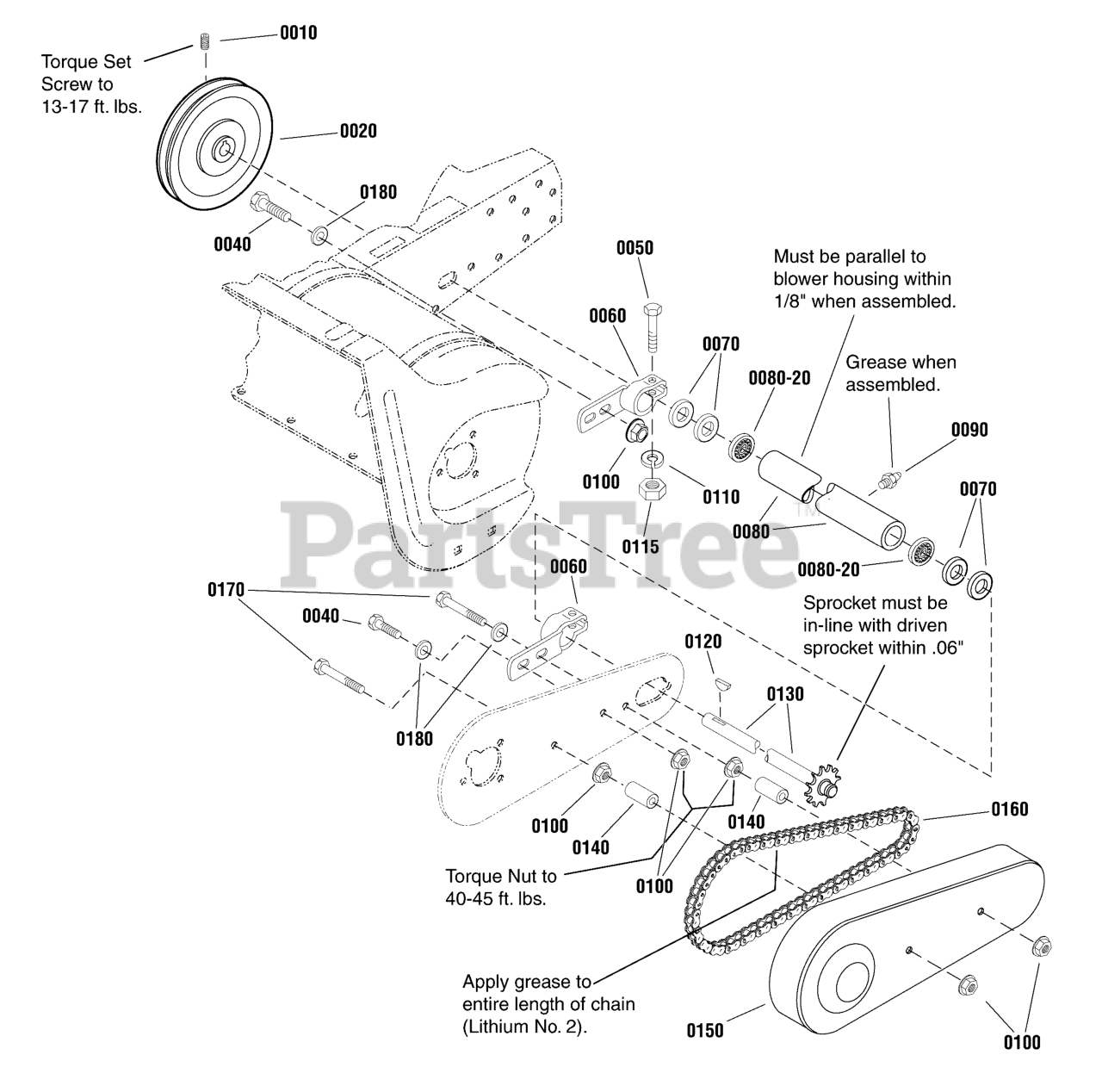

1696423-00 - Murray 42" Snow Thrower Attachment Drive Group (991155) Parts Diagram

42" Snow Thrower Attachment

Drive Group (991155) Parts Diagram

  • Title

0010

Murray 1930540SM

SCREW, Set Square Head, 16 - 18 x 5/8, G8

$4.99

$

In Stock, Qty 7

0

0020

Murray 2171248SM

PULLEY, 7 O.D. 3/4 x 7/8 with Hub

$109.99

$

Usually ships in 2-12 days

0

0040

Murray 704038

SCREW, Hex Whiz Lock Flange, 3/8 - 16 x 1

$6.49

$

In Stock, Qty 11

0

0050

Murray 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 18

0

0060

Murray 1666145ASM

CLAMP, Housing, 1-1/4 DIA Shaft

$40.99

$

Usually ships in 2-12 days

0

0070

Murray 1729259SM

WASHER, Special, 1 1/4

$6.49

$

In Stock, Qty 10

0

0080

Murray 1650955SM

HOUSING ASSEMBLY, with Bearings

$174.99

$

Usually ships in 2-12 days

0

0080-20

Murray 2154258SM

BEARING, Needle

$27.99

$

In Stock, Qty 5

0

0090

Murray 703907

FITTING, Grease

$5.49

$

In Stock, Qty 20+

0

0100

Murray 703793

LOCKNUT, Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

0110

Murray 703116

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0115

Murray 703465

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

0120

Murray 2805123SM

KEY, Woodruff, 3/16 x 3/4
(Superseded to 7010211YP)

$3.99

$

In Stock, Qty 20+

0

0130

Murray 2106757SM

SHAFT & SPROCKET ASSEMBLY, Snow

$255.99

$

Usually ships in 2-12 days

0

0140

Murray 1669105SM

SPACER

$14.99

$

In Stock, only 1 left!

0

0150

Murray 1676738ASM

CHAIN, Guard

$71.99

$

Usually ships in 2-12 days

0

0160

Murray 1756398YP

CHAIN, Rotor

$36.99

$

Usually ships in 2-12 days

0

0170

Murray 5025058X24YP

CAPSCREW, 3/8 x 16 - 3
(Superseded to 5025013X24SM)

$4.49

$

In Stock, Qty 5

0

0180

Murray 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0
