1696423-00 - Murray 42" Snow Thrower Attachment Spout Group Parts Diagram

42" Snow Thrower Attachment

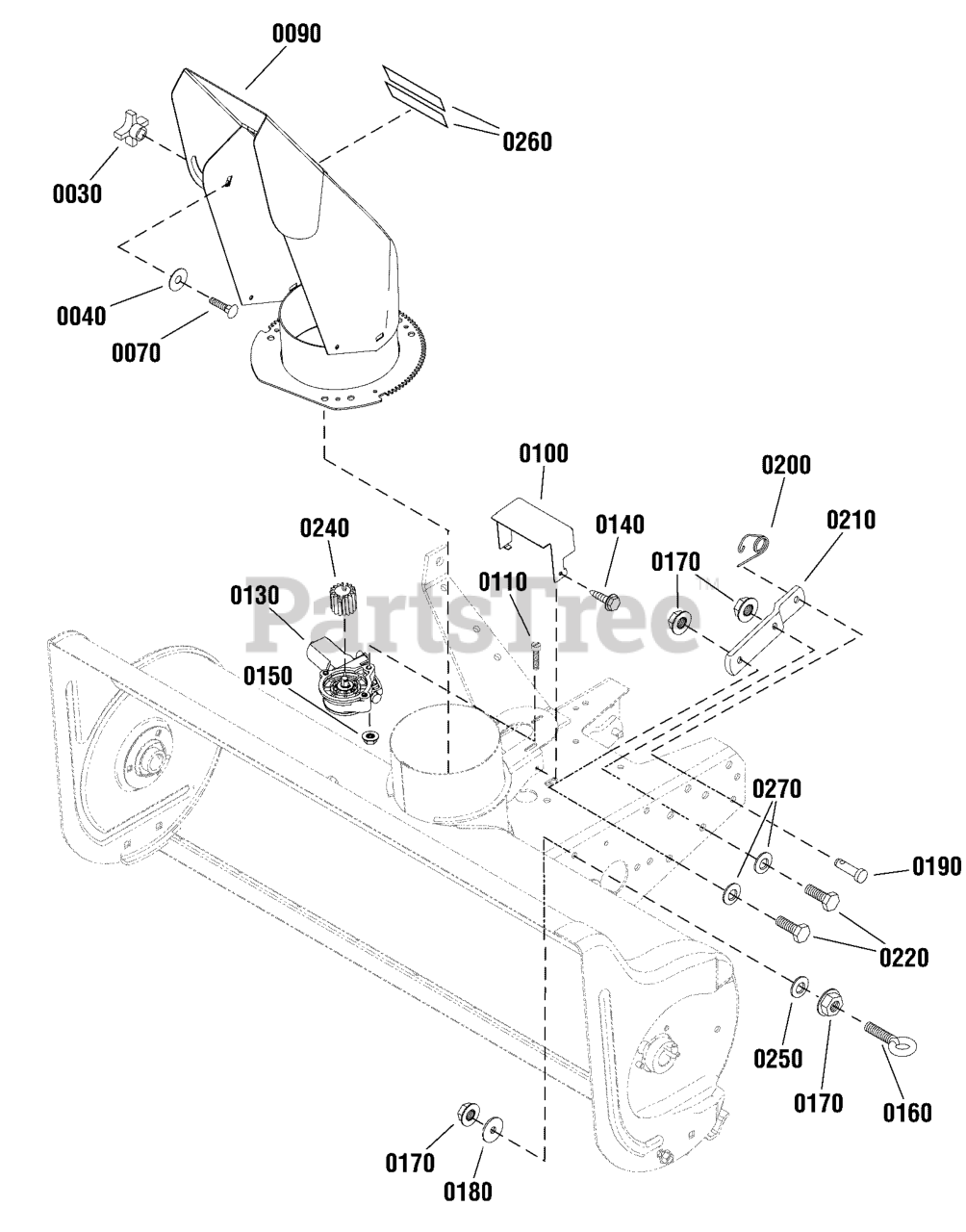

Spout Group Parts Diagram

  • Title

0030

Murray 1670578SM

KNOB, 5/16 Internal Thread

$14.99

$

In Stock, only 4 left!

0

0040

Murray 2860210SM

WASHER, Nylon

$4.99

$

In Stock, only 2 left!

0

0070

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0090

Murray 1736482AYP

CHUTE ASSEMBLY

$543.99

$

Usually ships in 2-12 days

0

0100

Murray 1733934ASM

GEAR COVER

$

$

Not available

0110

Murray 2860604SM

SCREW, 10 - 24

$4.99

$

In Stock, Qty 20+

0

0130

Murray 1728965SM

ELECTRIC MOTOR

$181.99

$

In Stock, only 2 left!

0

0140

Murray 703583

SCREW, Taptite, 1/4 - 20 x 3/8

$4.99

$

In Stock, Qty 20+

0

0150

Murray 703917

NUT, 10 - 24

$3.99

$

In Stock, Qty 20+

0

0160

Murray 1733143SM

EYEBOLT, 3/8 - 16

$88.99

$

Usually ships in 2-12 days

0

0170

Murray 703793

NUT, .36 - 16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

0180

Murray 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 20+

0

0190

Murray 2156306SM

PIN, Clevis, 3/8

$7.99

$

In Stock, Qty 5

0

0200

Murray 703852

PIN, Retainer, 5/16 x 3/8

$4.49

$

In Stock, Qty 20+

0

0210

Murray 2177565ASM

CLIP FRAME

$14.99

$

In Stock, only 2 left!

0

0220

Murray 703407

BOLT, 3/8 - 16 x 1-1/2
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

0240

Murray 1728967SM

PINION GEAR

$18.99

$

In Stock, Qty 6

0

0250

Murray 704128

WASHER, Plain, .41 x 1 x 1/8

$5.49

$

In Stock, Qty 20+

0

0260

Murray 1733600SM

DECAL, Hinge

$12.99

$

Usually ships in 2-12 days

0

0270

Murray 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0
