1696427 - Simplicity 54" Mower Deck

54" Mower Deck

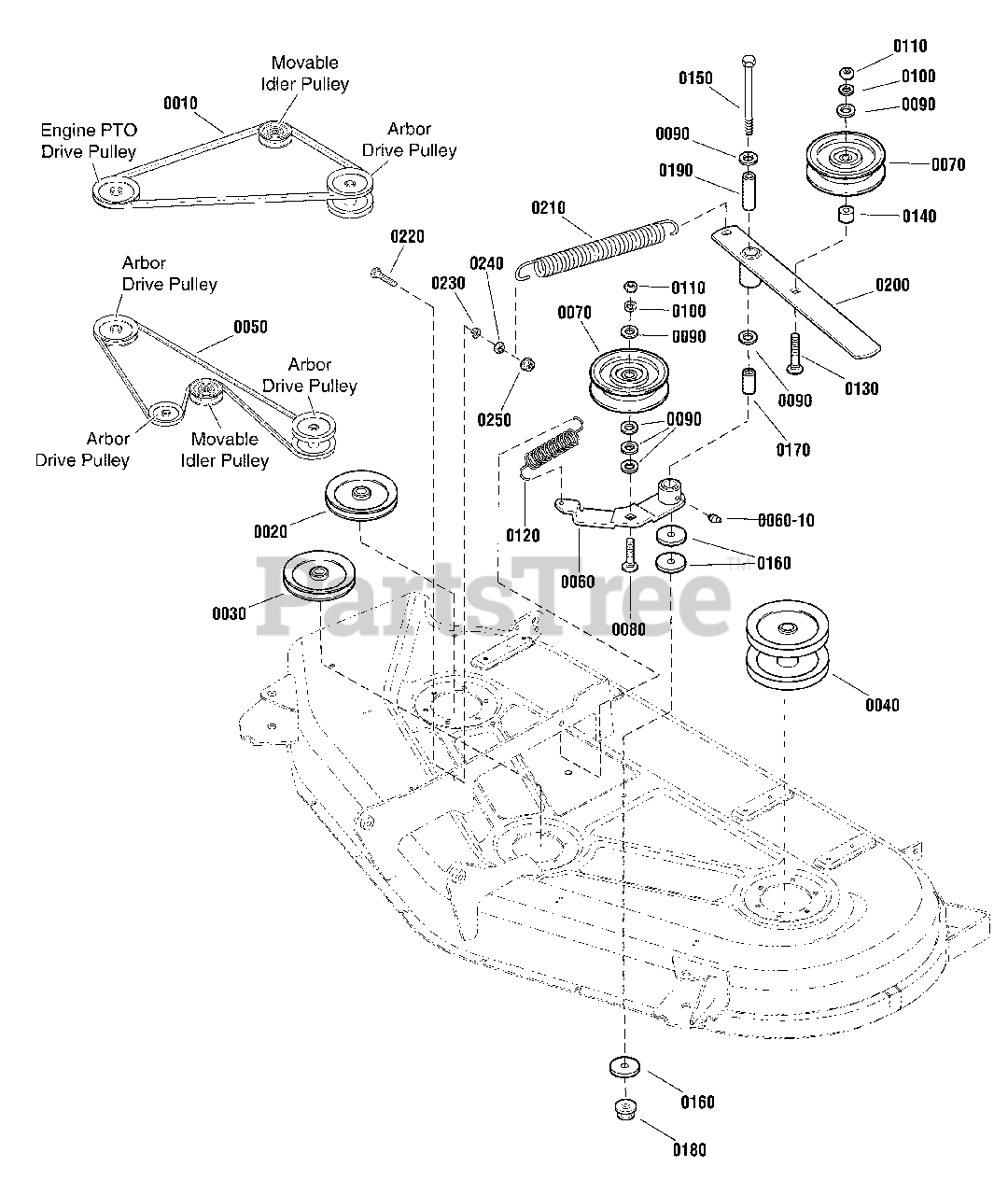

1696427 - Simplicity 54" Mower Deck > Parts Diagrams (3) > 54" (137cm) Mower Deck - Clutch & Support Group

  • Title
1734065SM

0010

V-BELT, Engine PTO

Part# 1734065SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 3 to 5 business days

Your price: $59.37

1720182ASM

0020

PULLEY, Deck Drive

Part# 1720182ASM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $33.26

1679161SM

0030

PULLEY, Deck

Part# 1679161SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $45.17

1720183ASM

0040

PULLEY, Deck

Part# 1720183ASM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $62.16

1671076SM

0050

V-BELT, 54 Mower Deck

Part# 1671076SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $42.71

1718561SM

0060

ASSEMBLY, Lever

Part# 1718561SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $29.46

2812808SM

0060-10

FITTING, Lube

Part# 2812808SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.24

1724387SM

0070

PULLEY

Part# 1724387SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $28.90

1931352SM

0080

BOLT, Carriage, 3/8-16 x 1-1/2

Part# 1931352SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.02

1924940SM

0090

WASHER, 3/8

Part# 1924940SM (Superseded to 703878)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.96

1916965SM

0100

WASHER, Lock, 3/8

Part# 1916965SM (Superseded to 703454)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.24

1916950SM

0110

NUT, Hex, 3/8-16

Part# 1916950SM (Superseded to 703577)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.85

1656936SM

0120

SPRING

Part# 1656936SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $8.11

1960315SM

0130

CARRIAGE BOLT, 3/8-16 x 2

Part# 1960315SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.36

2157081SM

0140

SPACER

Part# 2157081SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $6.54

1960246SM

0150

CAPSCREW, Hex Head, 3/8-16 x 4-1/2, G 5

Part# 1960246SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $5.09

1924356SM

0160

WASHER, 3/8

Part# 1924356SM (Superseded to 703591)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.47

1674669SM

0170

SPACER

Part# 1674669SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $9.17

1960339SM

0180

NUT, Hex Flange 3/8-16

Part# 1960339SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.18

1657242SM

0190

SPACER

Part# 1657242SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $5.93

1720379SM

0200

ASSEMBLY, Lever

Part# 1720379SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 3 to 5 business days

Your price: $58.86

1715435SM

0210

SPRING

Part# 1715435SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $6.54

1921977SM

0220

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G 5

Part# 1921977SM (Superseded to 703570)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.13

1917356SM

0230

WASHER, Lock, 5/16

Part# 1917356SM (Superseded to 703116)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29

1917372SM

0240

NUT, Hex, 5/16-18

Part# 1917372SM (Superseded to 7091511SM)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29

1923362SM

0250

NUT, Hex Center-Lock 5/16-18

Part# 1923362SM (Superseded to 703164)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29
