1696445-01 - Simplicity 44" Mower Deck 44" (112cm) Mower Deck - Clutch & Support Group Parts Diagram

44" Mower Deck

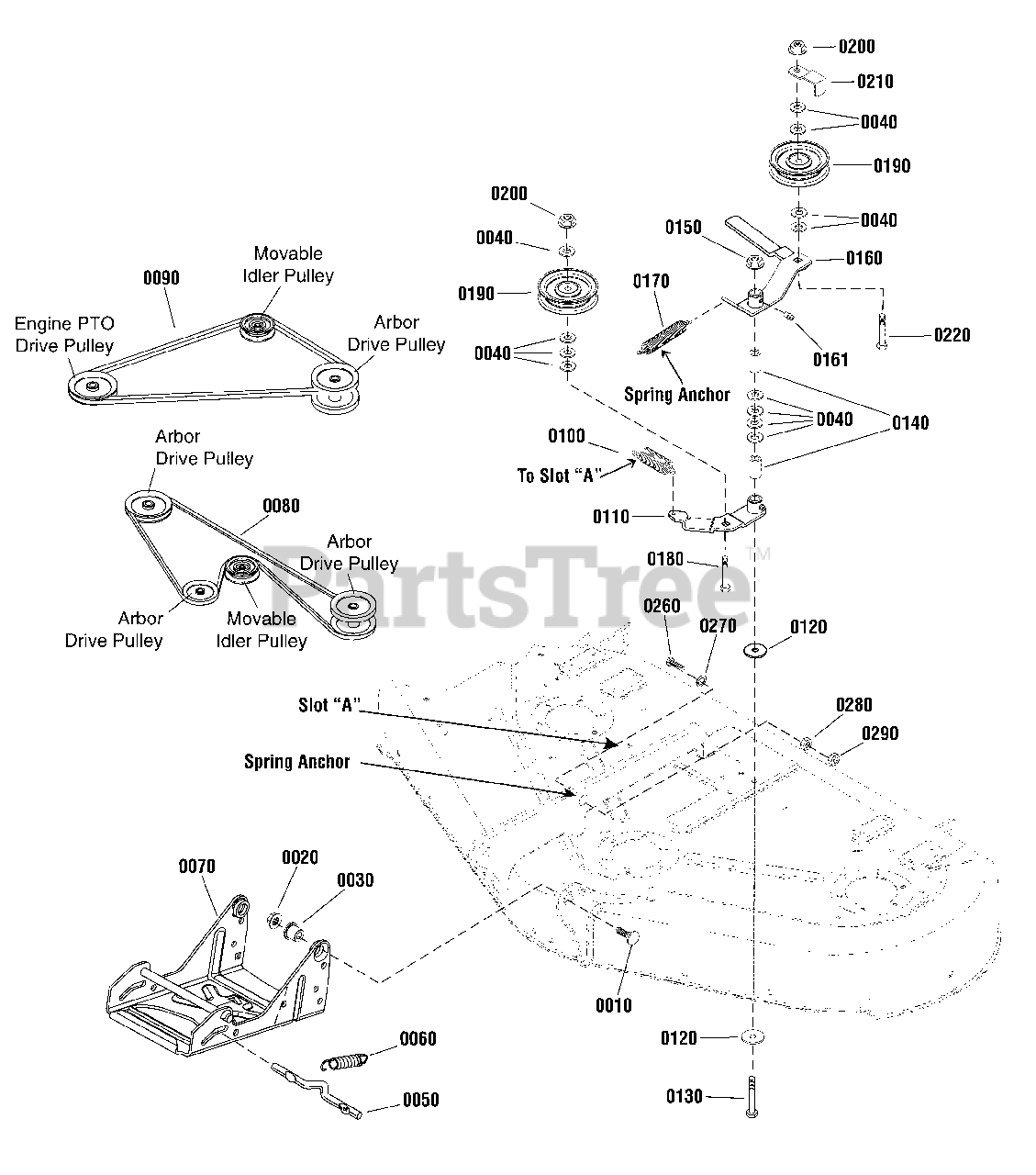

44" (112cm) Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Simplicity 1931352SM

BOLT, Carriage, 3/8-16 x 1 1/2, GR5

$4.49

$

In Stock, Qty 9

0

0020

Simplicity 703158

NUT, Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0030

Simplicity 1732443SM

SPACER, 3/8 x 3/4 x 1/2

$5.99

$

In Stock, Qty 6

0

0040

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0050

Simplicity 1715759SM

ROD, Latch

$7.99

$

In Stock, Qty 8

0

0060

Simplicity 2156302SM

SPRING

$6.49

$

In Stock, Qty 11

0

0070

Simplicity 1760192AYP

HITCH ASSEMBLY

$155.99

$

In Stock, only 2 left!

0

0080

Simplicity 1721532SM

V-BELT, Arbor Drive

$58.99

$

In Stock, only 3 left!

0

0090

Simplicity 1601672SM

V-BELT, Mower Drive

$32.99

$

In Stock, Qty 10

0

0100

Simplicity 1656936SM

SPRING

$9.99

$

In Stock, Qty 13

0

0110

Simplicity 1718561SM

LEVER ASSEMBLY, Idler

$50.99

$

In Stock, only 1 left!

0

0120

Simplicity 703591

WASHER, Flat

$5.49

$

In Stock, Qty 16

0

0130

Simplicity 703182

CAPSCREW, Hex Head, 3/8-16 x 3-1/2

$6.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1674669SM

SPACER, 25/64 x 5/8 x 1-1/8

$11.99

$

In Stock, Qty 7

0

0150

Simplicity 703893

NUT, Flange Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0160

Simplicity 1704658SM

LEVER ASSEMBLY, Idler Arm

Note: (Includes Ref. No. 0161)

$48.99

$

In Stock, Qty 7

0

0161

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

0170

Simplicity 1715435SM

SPRING

$9.49

$

In Stock, Qty 8

0

0180

Simplicity 1960315SM

BOLT, Carriage, 3/8-16 x 1 1/2

$6.49

$

In Stock, only 1 left!

0

0190

Simplicity 1724387SM

PULLEY, Idler

$35.99

$

In Stock, Qty 5

0

0200

Simplicity 703158

NUT, Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0210

Simplicity 1677135ASM

BELT STOP, Idler

$12.99

$

In Stock, only 2 left!

0

0220

Simplicity 1960315SM

BOLT, Carriage, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

0260

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4, GR5

$4.99

$

In Stock, Qty 11

0

0270

Simplicity 703116

WASHER, Lock, 5/16

$3.49

$

In Stock, Qty 20+

0

0280

Simplicity 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0290

Simplicity 703164

NUT, Centerlock, 5/16-18

$3.49

$

In Stock, Qty 10

0
