1696445-02 - Simplicity 44" Mower Deck 44" (112cm) Mower Deck - Clutch & Support Group Parts Diagram

44" Mower Deck

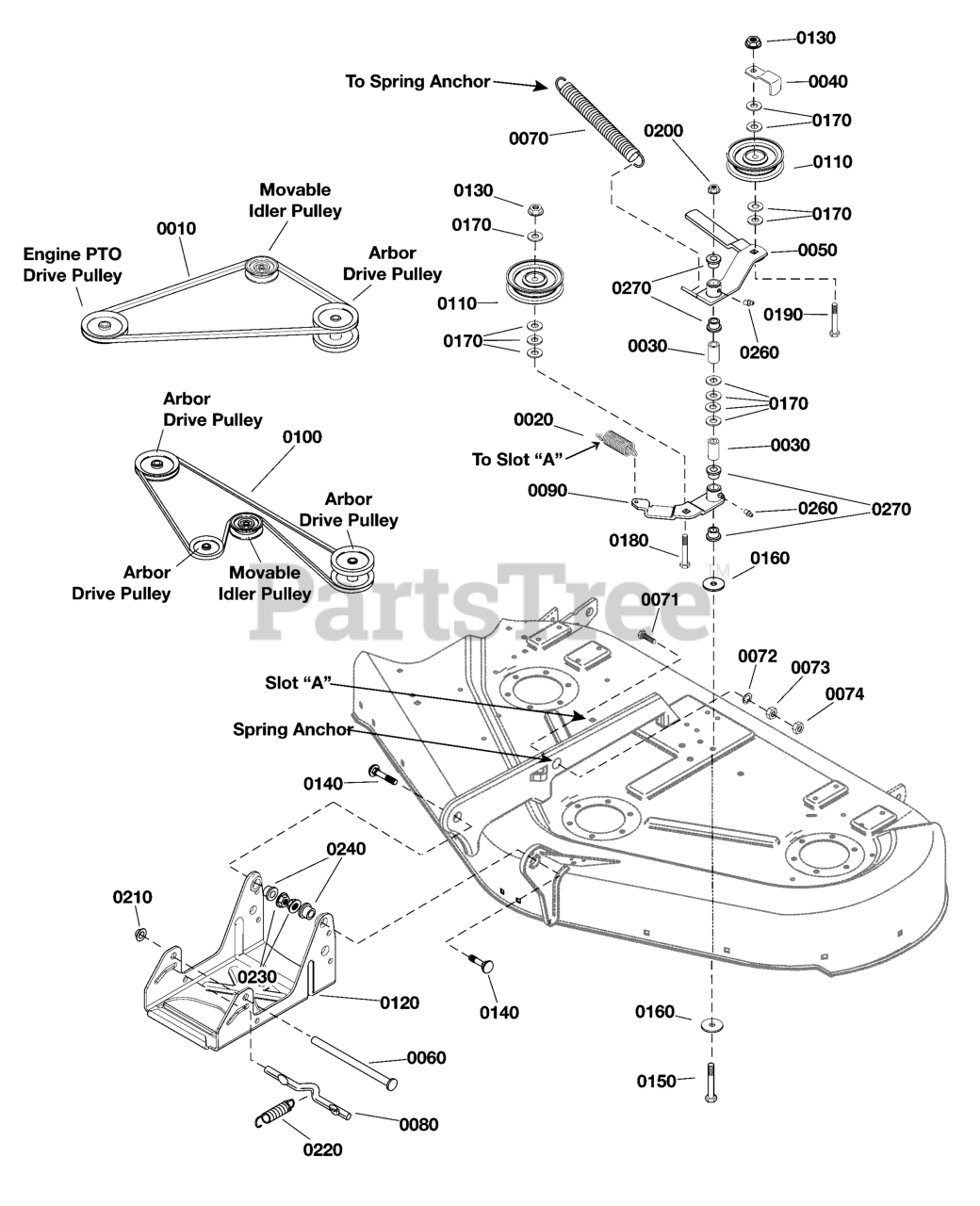

44" (112cm) Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Simplicity 1601672SM

V-BELT, Mower Drive, 44" Deck

$32.99

$

In Stock, Qty 11

0

0020

Simplicity 1656936SM

SPRING, Extension, Idler Arm

$9.99

$

In Stock, Qty 16

0

0030

Simplicity 1674669SM

SPACER, .39 X 5/8 X 1.15

$11.99

$

In Stock, Qty 8

0

0040

Simplicity 1677135ASM

GUARD, Spring "L"

$12.99

$

In Stock, only 2 left!

0

0050

Simplicity 1704658SM

LEVER ASSEMBLY, Idler Arm (Includes items 0260 &0270)

$48.99

$

In Stock, Qty 7

0

0060

Simplicity 1713578SM

ROD, 1/2" Dia., 7-5/8" Long

$15.99

$

In Stock, Qty 7

0

0070

Simplicity 1715435SM

SPRING, Extension

$9.49

$

In Stock, Qty 9

0

0071

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 12

0

0072

Simplicity 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0073

Simplicity 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0074

Simplicity 703164

NUT, Hex Center Lock, 5/16-18, GRB

$3.49

$

In Stock, Qty 10

0

0080

Simplicity 1715759SM

ROD, 3/8 x 8

$7.99

$

In Stock, Qty 8

0

0090

Simplicity 1718561SM

LEVER ASSEMBLY, Idler Arm (Includes items 0260 &0270)

$50.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1721532SM

V-BELT, Mower Deck, 44" Mower Deck

$58.99

$

In Stock, only 4 left!

0

0110

Simplicity 1724387SM

PULLEY, Backside Idler , 4"

$35.99

$

In Stock, Qty 7

0

0120

Simplicity 1756632AYP

HITCH ASSEMBLY

$170.99

$

Usually ships in 2-12 days

0

0130

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0140

Simplicity 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 10

0

0150

Simplicity 703182

CAPSCREW, Hex Head, 3/8-16 X 3 1/2, GR5

$6.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 17

0

0170

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 770529

BOLT, Carriage, 5/16-18 X 1 1/2, GR 5

$3.49

$

Usually ships in 2-12 days

0

0190

Simplicity 772406

BOLT, Carriage, 3/8-16 x 2

$3.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0210

Simplicity 703179

PUSHNUT, 1/2

$3.49

$

Usually ships in 2-12 days

0

0220

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 11

0

0230

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0240

Simplicity 1732443SM

SPACER, 3/8 x 3/4 x 3/4

$5.99

$

In Stock, Qty 6

0

0260

Simplicity 2812808SM

FITTING, Lube, 1/4

$4.49

$

In Stock, only 2 left!

0

0270

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 10

0
