1696447-00 - Simplicity Turbo Collection System for 48" FAB Mower Deck Turbo Mounting Group Parts Diagram

Turbo Collection System for 48" FAB Mower Deck

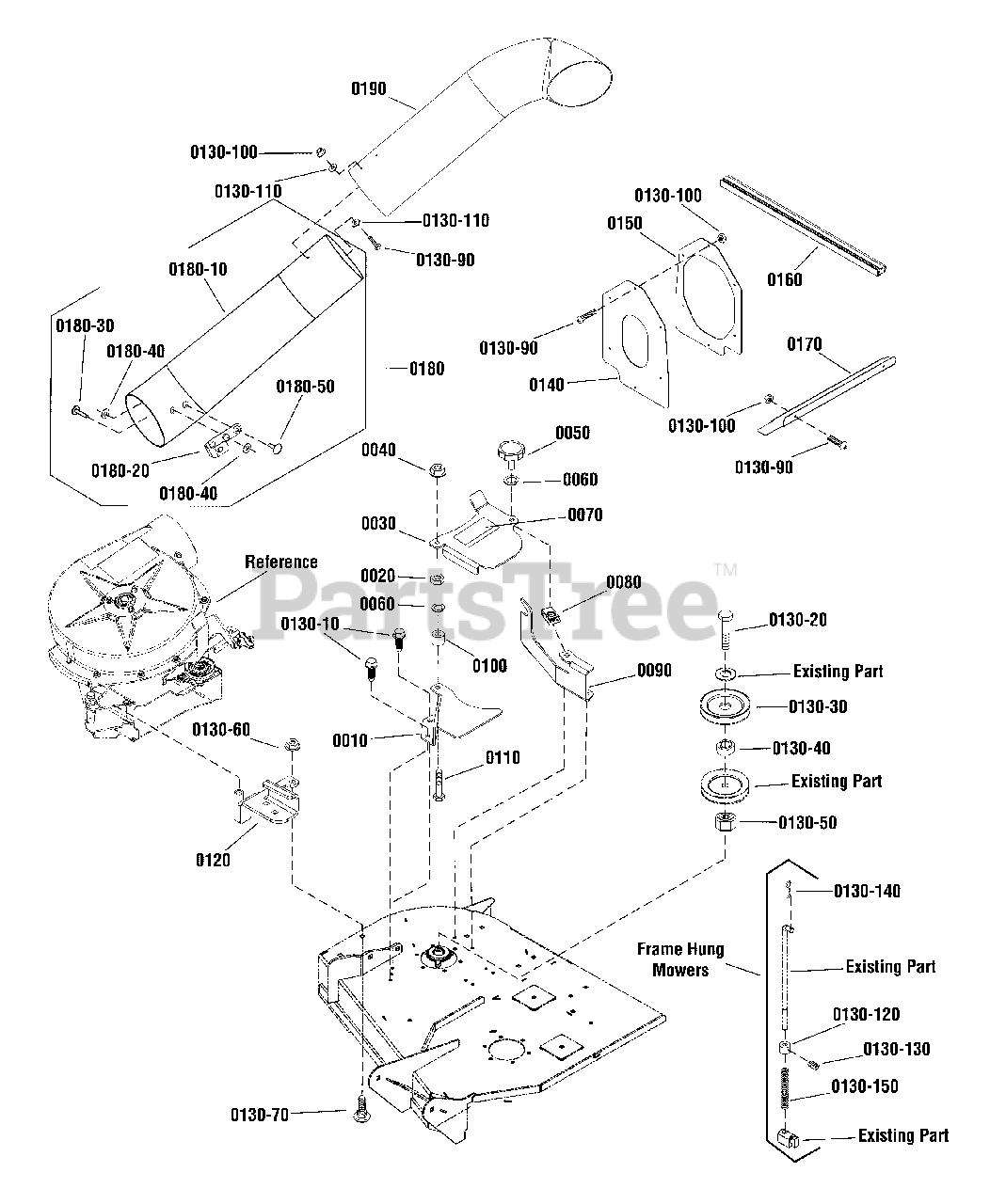

Turbo Mounting Group Parts Diagram

  • Title

0010

Simplicity 705989

COVER, Pulley

$93.99

$

Usually ships in 2-12 days

0

0020

Simplicity 703465

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

0030

Simplicity 705990

COVER, Pulley

$205.99

$

Usually ships in 2-12 days

0

0040

Simplicity 703115

NUT, Flange NyLock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0050

Simplicity 5101731YP

KNOB, Rosette, 5/16-18 X 1

$10.99

$

In Stock, only 2 left!

0

0060

Simplicity 703116

WASHER, Lock Split, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

0070

Simplicity 5103184YP

DECAL, Warning

$13.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, Qty 8

0

0090

Simplicity 705991

LATCH, Cover

$106.99

$

Usually ships in 2-12 days

0

0100

Simplicity 5102581YP

SPACER, .33 X .63 X .5

$11.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1922127SM

CAPSCREW, HexHead, 5/16-18 X 1 3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

0120

Simplicity 705992

PIVOT, Turbo

$218.99

$

Usually ships in 2-12 days

0

--

Simplicity 1758238

HARDWARE BAG

Note: (Not a serviceable part, order components separately)

$

$

Not available

0130-10

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0130-20

Simplicity 2827120SM

CAPSCREW, Hex Head, 7/16-14 X 2 1/4

$

$

Not available

0130-30

Simplicity 1713090SM

PULLEY, 3 3/4

$26.99

$

In Stock, only 2 left!

0

0130-40

Simplicity 1713623SM

HUB, .79 ID 1.50 OD .7 3 LG

$10.99

$

Usually ships in 2-12 days

0

0130-50

Simplicity 1738102YP

SPACER, Pulley

$66.99

$

Usually ships in 2-12 days

0

0130-60

Simplicity 703793

NUT, Flange Lock, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

0130-70

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, Qty 6

0

0130-90

Simplicity 1960404SM

SCREW, Truss Phillips, #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

0130-100

Simplicity 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, Qty 5

0

0130-110

Simplicity 1910531SM

WAsher, Rivot

$3.99

$

Usually ships in 2-12 days

0

0130-120

Simplicity 1719777SM

COLLAR, Set

$14.99

$

Usually ships in 2-12 days

0

0130-130

Simplicity 1928721SM

SCREW, Set, Square Head

$4.99

$

In Stock, Qty 13

0

0130-140

Simplicity 703300

PIN, Hair, 3/32

$3.99

$

In Stock, Qty 20+

0

0130-150

Simplicity 1729277SM

SPRING, Compression

$6.99

$

In Stock, only 2 left!

0

0140

Simplicity 1733741SM

SEAL, Cover
(Superseded to 1733741YP)

$30.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1732735ASM

SEAL, Flange

$42.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1733579SM

EDGING
(Superseded to 1721175SM)

$41.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1733580ASM

PLATE, Deflector

$36.99

$

Usually ships in 2-12 days

0

0180

Simplicity 705993

ASSEMBLY, Tube Lower

$

$

Not available

0180-10

TUBE, Lower

Note: (Not sold separately, order item 0180)

$

$

Not available

0180-20

Simplicity 1705063YP

SPRING, Clip

$

$

Not available

0180-30

Simplicity 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

0180-40

Simplicity 1910531SM

WASHER, Rivet

$3.99

$

Usually ships in 2-12 days

0

0180-50

Simplicity 1673320SM

RIVET

$4.49

$

In Stock, Qty 8

0

0190

Simplicity 1732800SM

ELBOW, Vacuum

$78.99

$

In Stock, only 1 left!

0
