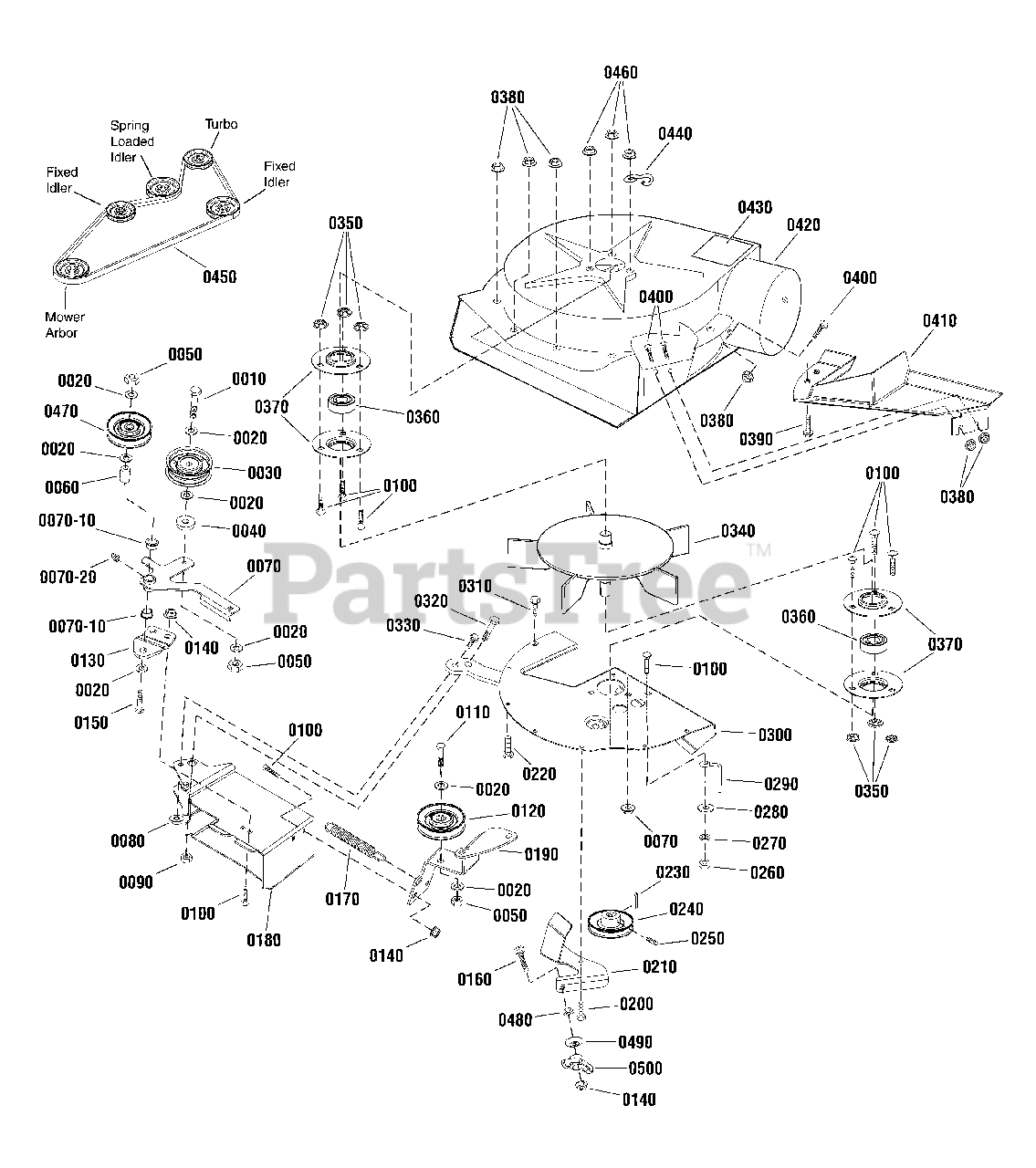

1696447-00 - Snapper Turbo Collection System for 48" FAB Mower Deck Housing Group (2991435) Parts Diagram

Turbo Collection System for 48" FAB Mower Deck

Housing Group (2991435) Parts Diagram

  • Title

0010

Snapper 703406

CAPSCREW, 3/8-16 X 1 1/2

Note: each

$4.99

$

In Stock, Qty 6

0

0020

Snapper 703590

WASHER, 3/8

Note: each

$3.99

$

In Stock, Qty 20+

0

0030

Snapper 2154534SM

PULLEY, Idler

Note: each

$32.99

$

In Stock, only 2 left!

0

0040

Snapper 1933263SM

WASHER, 7/16
(Superseded to 703990)

Note: each

$6.99

$

In Stock, Qty 6

0

0050

Snapper 1960251SM

NUT, Hex Centerlock, 3/8-16
(Superseded to 703230)

Note: each

$4.99

$

In Stock, only 2 left!

0

0060

Snapper 1674669SM

SPACER, .39 ID X 0.625 OD X 1.15 LG

Note: each

$11.99

$

In Stock, Qty 8

0

0070

Snapper 705983

IDLER ARM ASSEMBLY

Note: each

$159.99

$

Usually ships in 2-12 days

0

0070-10

Snapper 1676148SM

BUSHING

Note: each

$5.99

$

In Stock, Qty 10

0

0070-20

Snapper 703907

FITTING, Grease, 1/4

Note: each

$4.99

$

In Stock, Qty 20+

0

0080

Snapper 703333

NUT, Hex Flange, 3/8-16

Note: each

$4.99

$

In Stock, Qty 20+

0

0090

Snapper 1960379SM

NUT, Hex Lock, 1/2-13

Note: each

$4.99

$

Usually ships in 2-12 days

0

0100

Snapper 1931333SM

BOLT, Carriage, 5/16-18 X 3/4
(Superseded to 703185)

Note: each

$3.49

$

In Stock, Qty 20+

0

0110

Snapper 704289

CAPSCREW, Hex Head, 3/8-16 X 1 3/4

Note: each

$4.99

$

In Stock, Qty 15

0

0120

Snapper 1721134SM

PULLEY, 3" OD

Note: each

$30.99

$

Usually ships in 2-12 days

0

0130

Snapper 705984

BRACKET, Pulley

Note: each

$262.99

$

Usually ships in 2-12 days

0

0140

Snapper 703115

NUT, Hex Flange, 5/16-18

Note: each

$3.49

$

In Stock, Qty 17

0

0150

Snapper 703873

CAPSCREW, Hex Head, 3/8-16 X 2 1/2

Note: each

$4.49

$

In Stock, Qty 6

0

0160

Snapper 704421

SCREW, Round Head, 5/16 X 2 1/4

Note: each

$5.49

$

Usually ships in 2-12 days

0

0170

Snapper 1716853SM

SPRING, Extension

Note: each

$12.99

$

In Stock, only 2 left!

0

0180

Snapper 705985

ADAPTER, 48

Note: each

$558.99

$

Usually ships in 2-12 days

0

0190

Snapper 705986

BRACKET, Support

Note: each

$176.99

$

Usually ships in 2-12 days

0

0200

Snapper 703819

CAPSCREW, Hex Head, 1/4-20 X 7/8

Note: each

$4.49

$

In Stock, only 1 left!

0

0210

Snapper 705987

DEFLECTOR, 48

Note: each

$193.99

$

Usually ships in 2-12 days

0

0220

Snapper 703338

CAPSCREW, Hex Head, 1/4-20 X 5/8

Note: each

$3.99

$

Usually ships in 2-12 days

0

0230

Snapper 2860403SM

KEY, Woodruff, 3/16

Note: each

$10.99

$

In Stock, only 1 left!

0

0240

Snapper 1736092SM

PULLEY, 2 3/4

Note: each

$43.99

$

Usually ships in 2-12 days

0

0250

Snapper 1960619SM

SCREW, Set, 5/16-18 x 5/16

Note: each

$3.49

$

In Stock, only 2 left!

0

0260

Snapper 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

Note: each

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 703116

LOCKWASHER, Split, 5/16

Note: each

$3.49

$

In Stock, Qty 20+

0

0280

Snapper 1924874SM

WASHER, 5/16
(Superseded to 703302)

Note: each

$4.49

$

In Stock, Qty 20+

0

0290

Snapper 1678435SM

BELT STOP

Note: each

$4.49

$

Usually ships in 2-12 days

0

0300

Snapper 1738101AYP

WELD, PLATE & BAR ASSEMBLY

Note: each

$222.99

$

Usually ships in 2-12 days

0

0310

Snapper 704130

SCREW, Hex Head Taptite,1/4-20 X 1/2

Note: each

$3.99

$

In Stock, Qty 20+

0

0320

Snapper 7091558SM

HHCS, 1/2C X3-1/2 YZ

Note: each

$4.99

$

In Stock, only 1 left!

0

0330

Snapper 704038

SCREW, Hex Flange, 3/8-16 X 1

Note: each

$5.99

$

In Stock, Qty 17

0

0340

Snapper 1706631SM

FAN ASSEMBLY
(Superseded to 1706631ASM)

Note: each

$384.99

$

In Stock, only 1 left!

0

0350

Snapper 703297

RETAINER, 5/16 X 5/8

Note: each

$3.99

$

In Stock, Qty 20+

0

0360

Snapper 2108202SM

BEARING, Ball

Note: each

$11.99

$

In Stock, Qty 20+

0

0370

Snapper 1665982SM

RETAINER, Bearing

Note: each

$6.99

$

In Stock, only 4 left!

0

0380

Snapper 1930641SM

NUT, Hex Flange, 1/4-20
(Superseded to 703161)

Note: each

$3.49

$

In Stock, Qty 20+

0

0390

Snapper 1960728SM

SCREW, Hex Washer Head, 1/4 X 3/4

Note: each

$3.99

$

In Stock, only 4 left!

0

0400

Snapper 703575

BOLT, 1/4-20 x 3/4

Note: each

$3.99

$

In Stock, only 2 left!

0

0410

Snapper 1705267SM

PLATE, Cover

Note: each

$32.99

$

In Stock, only 2 left!

0

0420

Snapper 705997

HOUSING, Fan

Note: each

$330.99

$

Usually ships in 2-12 days

0

0430

Snapper 1700259SM

DECAL, Danger

Note: each

$27.99

$

Usually ships in 2-12 days

0

0440

Snapper 1672689SM

HOOK, "S"

Note: each

$31.99

$

Usually ships in 2-12 days

0

0450

Snapper 705988

V-BELT, 46.24

Note: each

$31.99

$

In Stock, only 1 left!

0

0460

Snapper 1927557SM

NUT, Hex Flange, 5/16-18

Note: each

$4.99

$

In Stock, Qty 5

0

0470

Snapper 2174561SM

PULLEY, 3" OD

Note: each

$53.99

$

In Stock, Qty 5

0

0480

Snapper 1960636SM

NUT, Hex, 5/16-18

Note: each

$4.99

$

In Stock, only 1 left!

0

0490

Snapper 1709256SM

WASHER, Spring

Note: each

$5.99

$

Usually ships in 2-12 days

0

0500

Snapper 703065

KNOB, Wing, 5/16-18

Note: each

$6.99

$

In Stock, Qty 20+

0
