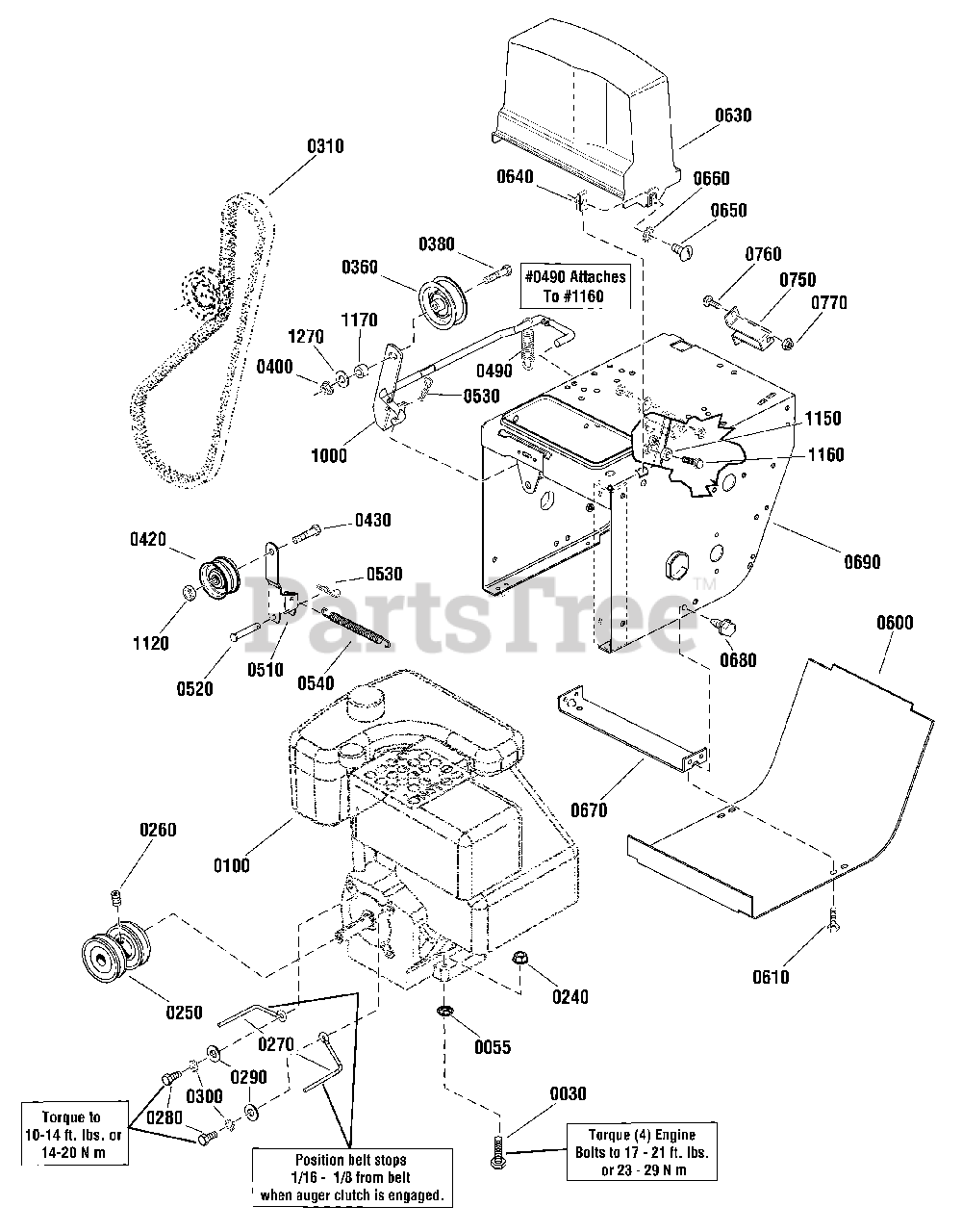

1696457 - Simplicity Power Source, MB Broom Engine & Frame Group Parts Diagram

Power Source, MB Broom

Engine & Frame Group Parts Diagram

  • Title

0030

Simplicity 704288

SCREW, Hex Head Cap, 5/16-18 X 1 3/4 , GR5
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

0055

Simplicity 703297

RETAINER, Pushnut, 5/16 X 5/8

$3.99

$

In Stock, Qty 7

0

0100

*ENGINE

$

$

Not available

0240

Simplicity 703115

NUT, Nylock Flange, 5/16-18, GR F

$3.49

$

In Stock, Qty 20+

0

0250

Simplicity 1676493SM

PULLEY, Double 2 1/4 & 2 3/4 OD 1 ID 2 1/8 WD

$95.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1930540SM

SCREW, Set Square Head Cup Point, 5/16-18 X 5/8 GR8

$4.99

$

In Stock, Qty 6

0

0270

Simplicity 1731178SM

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0280

Simplicity 1687300SM

SCREW, Hex Head Cap, 5/16-24 X 3/4 GR5
(Superseded to 1687475YP)

$99.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1660628SM

WASHER, Flat, 11/32 X 3/4 X 1/16

$

$

Not available

0300

Simplicity 703116

LOCKWASHER, Split, 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

0310

Simplicity 1676461SM

V-BELT 3L

$24.99

$

In Stock, only 2 left!

0

0360

Simplicity 1726348SM

PULLEY, Idler 2 3/4 O

$26.99

$

In Stock, only 2 left!

0

0380

Simplicity 1660795SM

SCREW, Hex Head, 3/8-16 X 2, GR5

$

$

Not available

0400

Simplicity 703793

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 17

0

0420

Simplicity 1668477SM

PULLEY, Idler With Bearing, 2 1/4 OD 3/8 ID

$25.99

$

In Stock, only 3 left!

0

0430

Simplicity 1960647SM

SCREW, Hex Head, 3/8-16 X 1 1/2

$7.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1686786SM

SPRING,.562ODX4.250X.049WIRE,EXT,ZC/CL

$2165.99

$

Usually ships in 2-12 days

0

0510

Simplicity 1703046BMYP

ARM, Idler

$19.99

$

Usually ships in 2-12 days

0

0520

Simplicity 703145

PIN,5/16X1.75,CLEVIS,FLAT,DRLLD,ZC/CL

$4.49

$

In Stock, only 3 left!

0

0530

Simplicity 1722460SM

HAIRPIN, 5/64 x1 1/8 LG
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

0540

Simplicity 703146

SPRING, Extension 3/4 OD X 5 53/64
(Superseded to 1687980)

$

$

Not available

0600

Simplicity 1726870JSM

COVER, Bottom
(Superseded to 706523)

$98.99

$

Usually ships in 2-12 days

0

0610

Simplicity 704130

SCREW, Hex Head Taptite, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 11

0

0630

Simplicity 1725287SM

COVER, Belt
(Superseded to 706414)

$41.99

$

Usually ships in 2-12 days

0

0640

Simplicity 1935255SM

NUT, Speed Lug Type, 5/16-18

$3.49

$

In Stock, Qty 8

0

0650

Simplicity 1918249SM

SCREW, Truss Head Slotted, 5/16-18 X 3/4

$4.99

$

In Stock, only 1 left!

0

0660

Simplicity 2820426SM

WASHER, Exernal Lock Tooth, 5/16

$4.49

$

Usually ships in 2-12 days

0

0670

Simplicity 1727004BMYP

SUPPORT,Tie Bar

$15.99

$

In Stock, only 2 left!

0

0680

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0690

Simplicity 1726568JSM

FRAME

$199.99

$

Usually ships in 2-12 days

0

0750

Simplicity 1720404BMYP

SUPPORT, Clutch Cable

$13.99

$

Usually ships in 2-12 days

0

0760

Simplicity 703101

BOLT, Carriage, 1/4-20 X 3/4

$4.49

$

In Stock, only 3 left!

0

0770

Simplicity 1687488YP

NUT, KEPS Conical Washer 1/4-20

$31.99

$

Usually ships in 2-12 days

0

1000

Simplicity 1729646BMYP

WELD, CLUTCH ROD / BRAKE ARM

$124.99

$

In Stock, only 1 left!

0

1120

Simplicity 1928731SM

NUT, Hex TopLock Jam, 3/8-16

$5.49

$

In Stock, only 1 left!

0

1150

Simplicity 1666697SM

SPACER, 3/8 ID 1/2 OD 7/32 LG

$6.49

$

In Stock, only 2 left!

0

1160

Simplicity 703585

SCREW, Hex Head Cap, 5/16-18 X 1, GR5
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 6

0

1170

Simplicity 1667811SM

SPACER, 25/32 ID, 29/32 OD, 11/32 LG

$3.99

$

In Stock, Qty 10

0

1270

Simplicity 7030878

WASHER, 3/8

$

$

Not available
