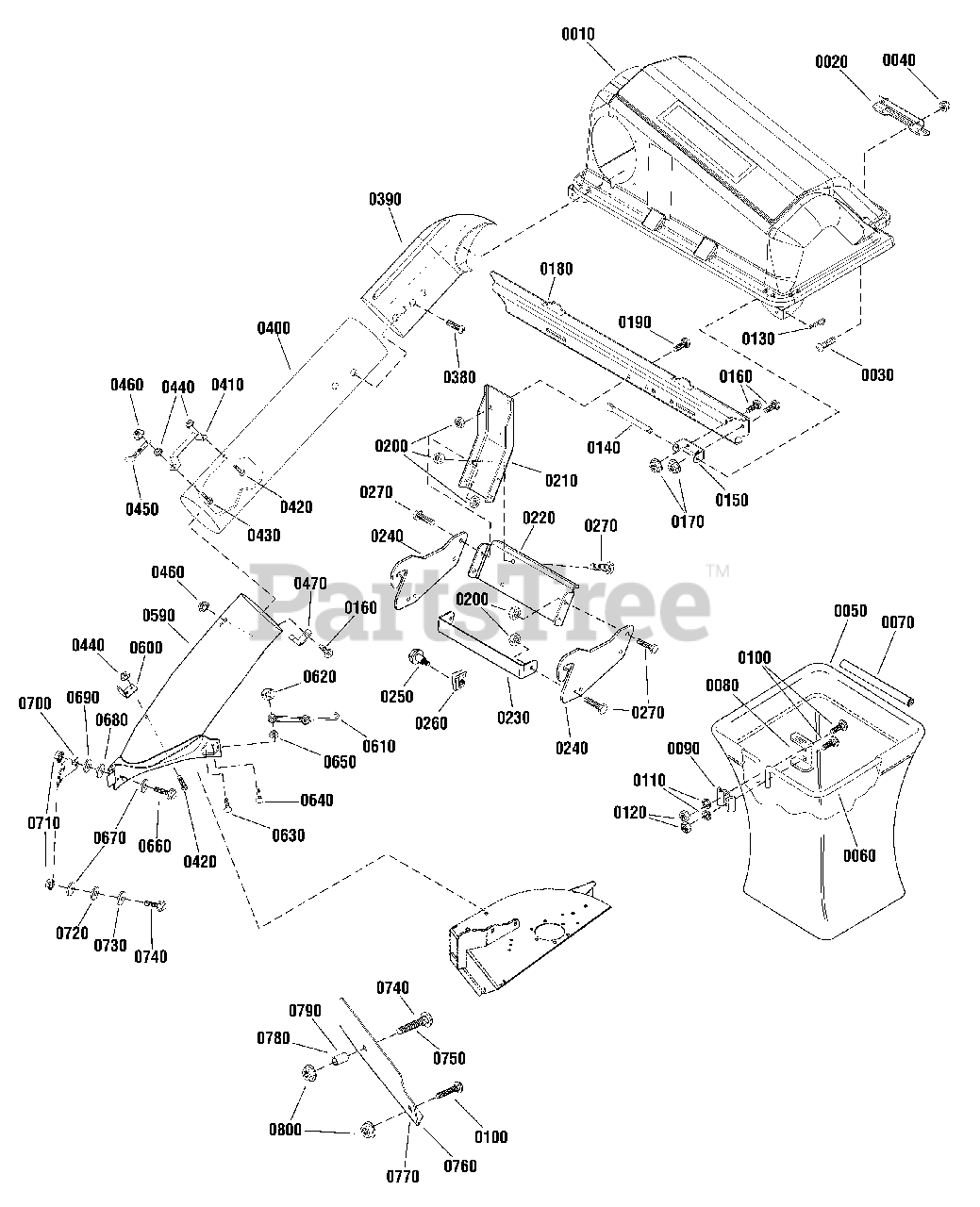

1696462-01 - Snapper Clean Sweep Triple Grass Catcher for 46", 48" & 52" Mower Triple Catcher Assembly Parts Diagram

Clean Sweep Triple Grass Catcher for 46", 48" & 52" Mower

Triple Catcher Assembly Parts Diagram

  • Title

0010

Snapper 1736101YP

ASSEMBLY, Cover & Screen, Triple Catcher

$695.99

$

Usually ships in 2-12 days

0

0020

Snapper 054537MA

HANDLE, Plastic

$18.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960404SM

SCREW, Truss Head Phillips, 10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

0040

Snapper 1933896SM

NUT, Hex Lock, 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0050

Snapper 1733695SM

BAG, Triple Regular

$140.99

$

In Stock, only 4 left!

0

0060

Snapper 1733517SM

HOOP, Triple

$76.99

$

Usually ships in 2-12 days

0

0070

Snapper 1733709SM

EDGING, Tube Grass Bag

$16.99

$

In Stock, only 2 left!

0

0080

Snapper 1703807ASM

HANGER, Grass Bag

$21.99

$

In Stock, only 3 left!

0

0090

Snapper 1672023ASM

CLAMP, Grass Bag Plain

$11.99

$

Usually ships in 2-12 days

0

0100

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0110

Snapper 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

0140

Snapper 054407ZMA

PIN, Cover Hinge

$14.99

$

In Stock, only 1 left!

0

0150

Snapper 1736886AYP

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

In Stock, only 1 left!

0

0160

Snapper 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 2 left!

0

0170

Snapper 1960294SM

NUT, Whiz-Lock, Hex-Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0180

Snapper 1736080AYP

CROSS SUPPORT

$186.99

$

Usually ships in 2-12 days

0

0190

Snapper 1931350SM

BOLT, Carriage, 3/8-16 X 1, G5
(Superseded to 703815)

$4.49

$

In Stock, Qty 5

0

0200

Snapper 1928352SM

NUT, Hex Whiz Lock Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

0210

Snapper 1707526ASM

SUPPORT, Upright

$82.99

$

Usually ships in 2-12 days

0

0220

Snapper 1736028AYP

BRACKET, Upright

$121.99

$

Usually ships in 2-12 days

0

0230

Snapper 1736030AYP

BRACKET, Hitch

$71.99

$

Usually ships in 2-12 days

0

0240

Snapper 1736029AYP

PLATE, Bagger Mount

$76.99

$

Usually ships in 2-12 days

0

0250

Snapper 1728976SM

BOLT, Shoulder, 5/16-18 x 1-5/8

$6.49

$

In Stock, only 2 left!

0

0260

Snapper 1960717SM

NUT, Speed, 5/16-18

$6.49

$

Usually ships in 2-12 days

0

0270

Snapper 1920415SM

CAPSCREW, Hex-Head, 3/8-16 X 1-1/4, G5
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

0380

Snapper 26X239MA

SCREW, 1/4 X 3/4

$4.49

$

In Stock, only 2 left!

0

0390

Snapper 1733885SM

ELBOW, Upper Tube Poly

$103.99

$

In Stock, only 1 left!

0

0400

Snapper 1734299SM

TUBE, Clear Poly

$140.99

$

Usually ships in 2-12 days

0

0410

Snapper 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 4 left!

0

0420

Snapper 004X24MA

SCREW, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0430

Snapper 004X71MA

SCREW, 1/4-20 x 1

$4.99

$

In Stock, only 4 left!

0

0440

Snapper 1928372SM

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

0450

Snapper 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

0460

Snapper 1930642SM

NUT, Hex Flange Top-Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

0470

Snapper 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0590

Snapper 1734776YP

BOOT, Bagging

$268.99

$

In Stock, only 1 left!

0

0600

Snapper 1737764AYP

UPSTOP, Deflector

$33.99

$

Usually ships in 2-12 days

0

0610

Snapper 7036433SM

STRAP, Mounting Bag

$31.99

$

In Stock, only 3 left!

0

0620

Snapper 7036404SM

NUT, Weld, 10-24

$3.49

$

Usually ships in 2-12 days

0

0630

Snapper 7036415SM

SCREW, Pan Head, 10 x 5/8

$3.99

$

In Stock, only 2 left!

0

0640

Snapper 1931320SM

BOLT, Carriage, 1/4-20 X 3/4
(Superseded to 703178)

$3.99

$

In Stock, only 2 left!

0

0650

Snapper 1960685SM

NUT, Hex, KEPS, Conical, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

0660

Snapper 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

0670

Snapper 1960044SM

WASHER, 5/16 x 3/4

$4.49

$

In Stock, Qty 12

0

0680

Snapper 1708511SM

SPACER, 1" O.D.

$7.49

$

Usually ships in 2-12 days

0

0690

Snapper 7026257MA

Washer, Wave

$4.49

$

In Stock, only 2 left!

0

0700

Snapper 1737765AYP

LATCH, Bagging Boot

$32.99

$

In Stock, only 1 left!

0

0710

Snapper 1960686SM

NUT, Hex Flange 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

0720

Snapper 1723244SM

SPACER, Pivot

$7.99

$

Usually ships in 2-12 days

0

0730

Snapper 1719381SM

WASHER, 11/32 x 1
(Superseded to 1726470SM)

$28.99

$

Usually ships in 2-12 days

0

0740

Snapper 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

Note: (52" Decks Only )

$4.49

$

In Stock, only 1 left!

0

0750

Snapper 1931339SM

BOLT, Round Head, Square Neck 5/16-18 x 2
(Superseded to 704035)

Note: (46" Decks Only )

$4.49

$

In Stock, only 2 left!

0

0760

Snapper 1737241AYP

BAFFLE, 46" Mower Deck

Note: (46" Decks Only )

$77.99

$

Usually ships in 2-12 days

0

0770

Snapper 1737242AYP

BAFFLE, 52" Mower Deck

Note: (52" Decks Only )

$103.99

$

In Stock, only 1 left!

0

0780

Snapper 1676088SM

SPACER, 5/8 x .320

Note: (46" Decks Only )

$11.99

$

Usually ships in 2-12 days

0

0790

Snapper 1674440SM

SPACER, 3/8 x 5/8

Note: (52" Decks Only )

$18.99

$

Usually ships in 2-12 days

0

0800

Snapper 1927557SM

NUT, Hex Whiz Lock Flange, 5/16-18

$4.99

$

In Stock, Qty 10

0
