1696483-00 (CM 61900 E) - Canadiana 24" Snow Thrower, Canada (2015) Auger Drive Group Parts Diagram

24" Snow Thrower, Canada

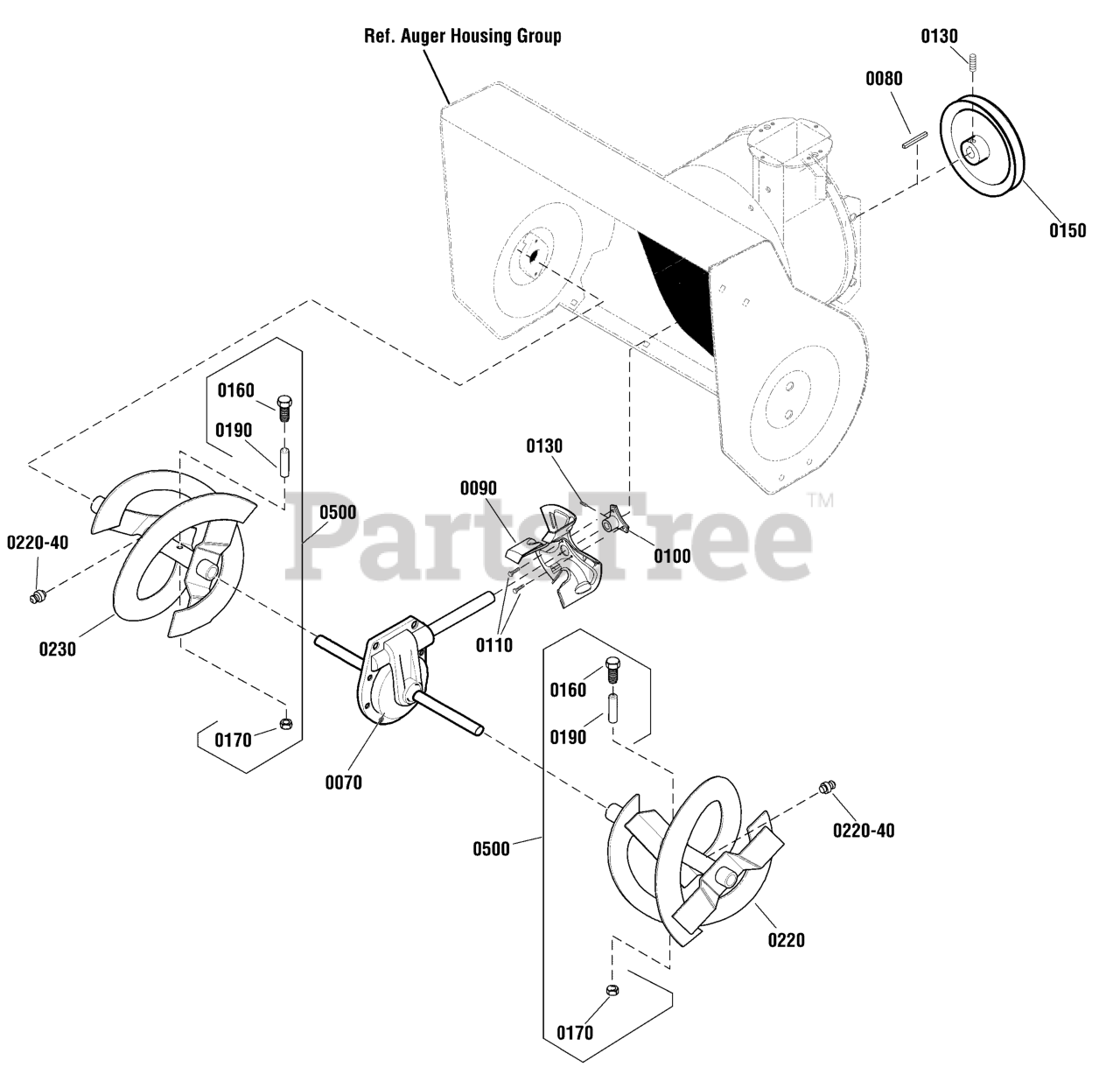

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1753384YP

GEAR CASE ASSEMBLY
(Superseded to 704363)

$484.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.99

$

In Stock, Qty 11

0

0090

Murray 1739094BMYP

IMPELLER
(Superseded to 1687600YP)

$91.99

$

In Stock, only 2 left!

0

0100

Murray 1739073YP

HUB, Impeller

$24.99

$

In Stock, only 2 left!

0

0110

Murray 703985

SCREW, 5/16-18 X .5, Hex Washer Head, Self-Tapping, ZC/CL

Note: (Was 703949)

$4.49

$

In Stock, Qty 18

0

0130

Murray 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

$10.99

$

Usually ships in 2-12 days

0

0150

Murray 1501211MA

PULLEY

$76.99

$

In Stock, only 2 left!

0

0160

Murray 703057

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G2

$6.49

$

In Stock, only 3 left!

0

0170

Murray 703251

NUT, Hex Centerlock, 1/4-20

$5.49

$

In Stock, Qty 12

0

0190

Murray 703058

SPACER, Sleeve, 1/4 x 1/2

$7.49

$

In Stock, only 2 left!

0

0220

Murray 1738299BHYP

AUGER, LH, 24"

$106.99

$

Usually ships in 2-12 days

0

0230

Murray 1738300BHYP

AUGER, RH, 24"

$106.99

$

Usually ships in 2-12 days

0

0220-40

Murray 703907

FITTING, Grease

$5.49

$

In Stock, Qty 20+

0

0500

Murray 722130

KIT, Shear Bolt
(Superseded to 1501216MA)

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$5.49

$

In Stock, Qty 20+

0
