1696483-00 (CM 61900 E) - Canadiana 24" Snow Thrower, Canada (2015) Auger Housing Group Parts Diagram

24" Snow Thrower, Canada

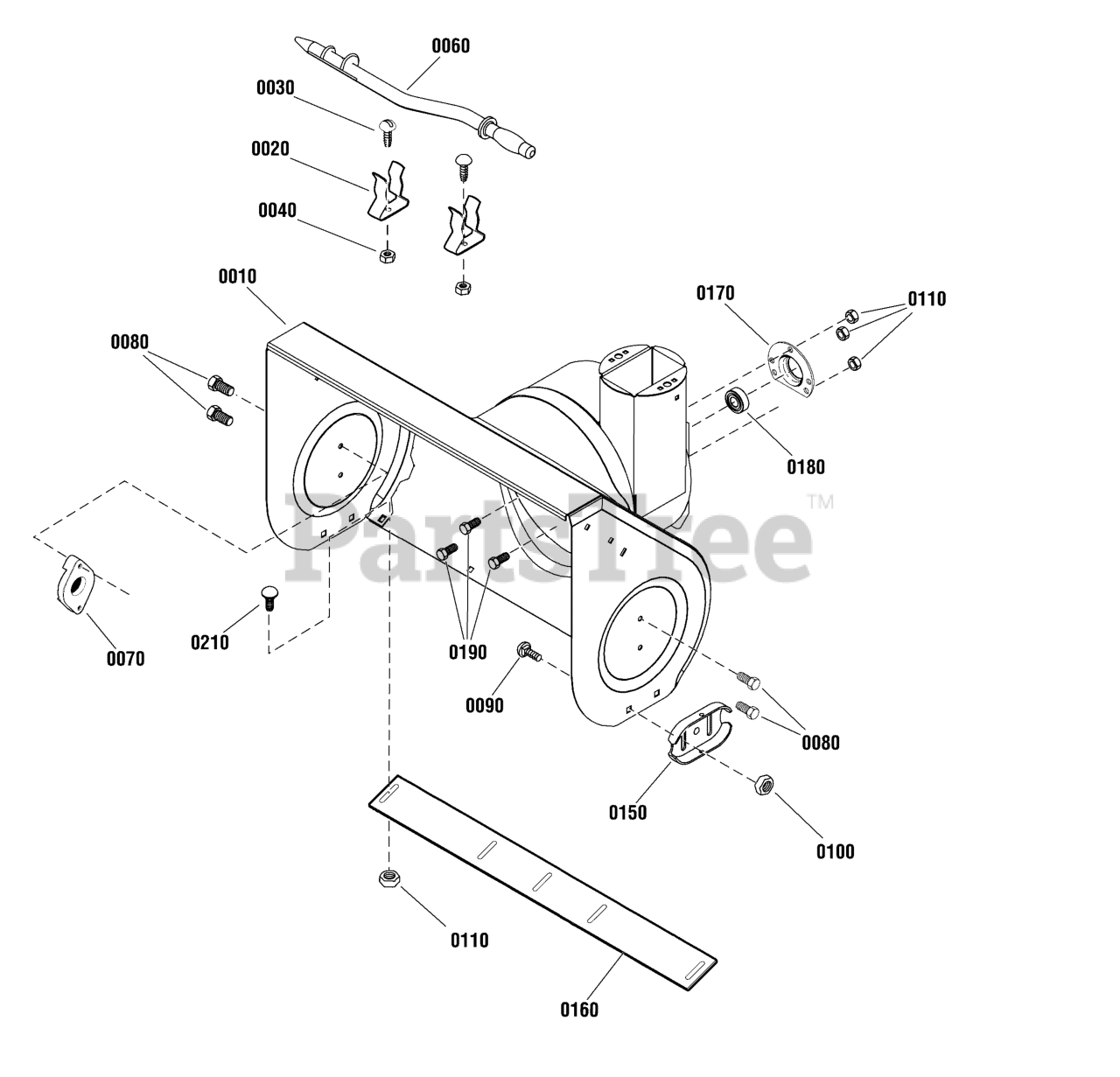

Auger Housing Group Parts Diagram

  • Title

0010

Murray 706504

AUGER HOUSING ASSEMBLY, 24"

$

$

Currently unavailable

0020

Murray 1736620YP

CLIP, Retainer

$6.49

$

In Stock, only 1 left!

0

0030

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 703412

NUT, Nylock, 10 x 26

$4.49

$

In Stock, Qty 12

0

0060

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 2 left!

0

0070

Murray 53757MA

BEARING, Auger Shaft

$9.99

$

In Stock, only 2 left!

0

0080

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0090

Murray 703448

BOLT, Carriage, 3/8-16 x 3/4, GR5

$4.49

$

In Stock, Qty 20+

0

0100

Murray 703333

NUT, Hex Flange, 3/8-16

$4.99

$

In Stock, Qty 20+

0

0110

Murray 690272MA

NUT, Hex Flange, Serrated Lock, 5/16-18

$

$

Not available

0150

Murray 1727854BMYP

SHOE, Skid, Reversible

$16.99

$

In Stock, only 2 left!

0

0160

Murray 1738335AYP

BLADE, Scraper, 24"

$

$

Not available

0170

Murray 1756809YP

RETAINER, Ball Bearing

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 703822

BOLT, Hex, 5/16-18 x 5/8

$4.49

$

In Stock, only 2 left!

0

0210

Murray 703447

BOLT, Carriage, 3/8-16 x 5/8, GR5

$4.49

$

In Stock, Qty 20+

0
