1696483-00 (CM 61900 E) - Canadiana 24" Snow Thrower, Canada (2015) Wheels & Tires Group Parts Diagram

24" Snow Thrower, Canada

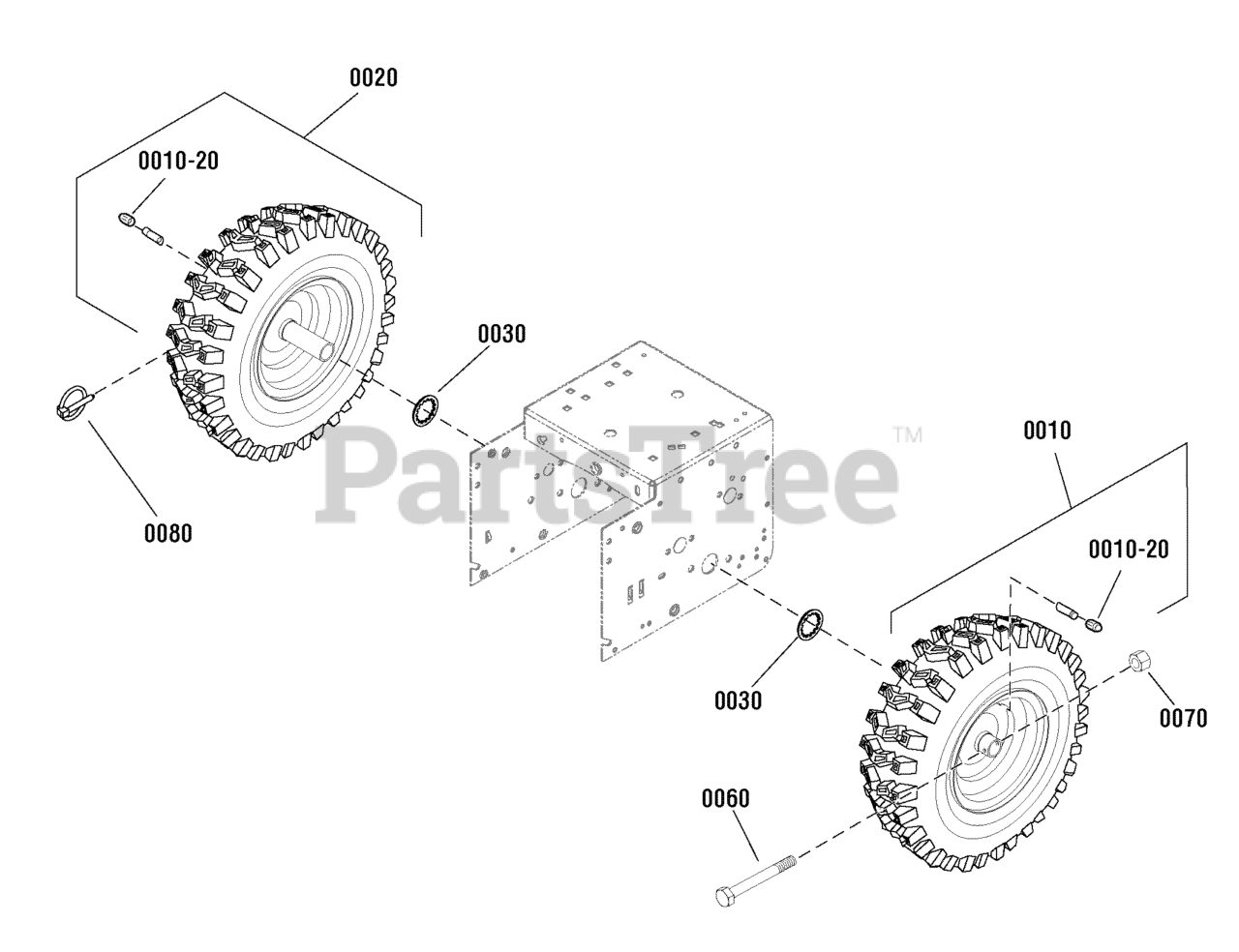

Wheels & Tires Group Parts Diagram

  • Title

0010

Murray 1754486

WHEEL & TIRE ASSEMBLY, 15 x 5, P2-407, LH
(Superseded to 706970)

$132.99

$

Usually ships in 2-12 days

0

0020

Murray 1754487

WHEEL & TIRE ASSEMBLY, 15 x 5, P2-407, RH
(Superseded to 706971)

$135.99

$

Usually ships in 2-12 days

0

0010-20

Murray 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 20+

0

0030

Murray 1657528

RING, Retaining, Self Lock, 3/4
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

0060

Murray 80002714

BOLT, Hex, 1/4-20 x 1-3/4, G5
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

0070

NUT, 1/4-20, Nylock

$

$

Not available

0080

Murray 80003533

PIN, Klik, 1/4 X 1.380
(Superseded to 703226)

$10.99

$

In Stock, Qty 5

0
