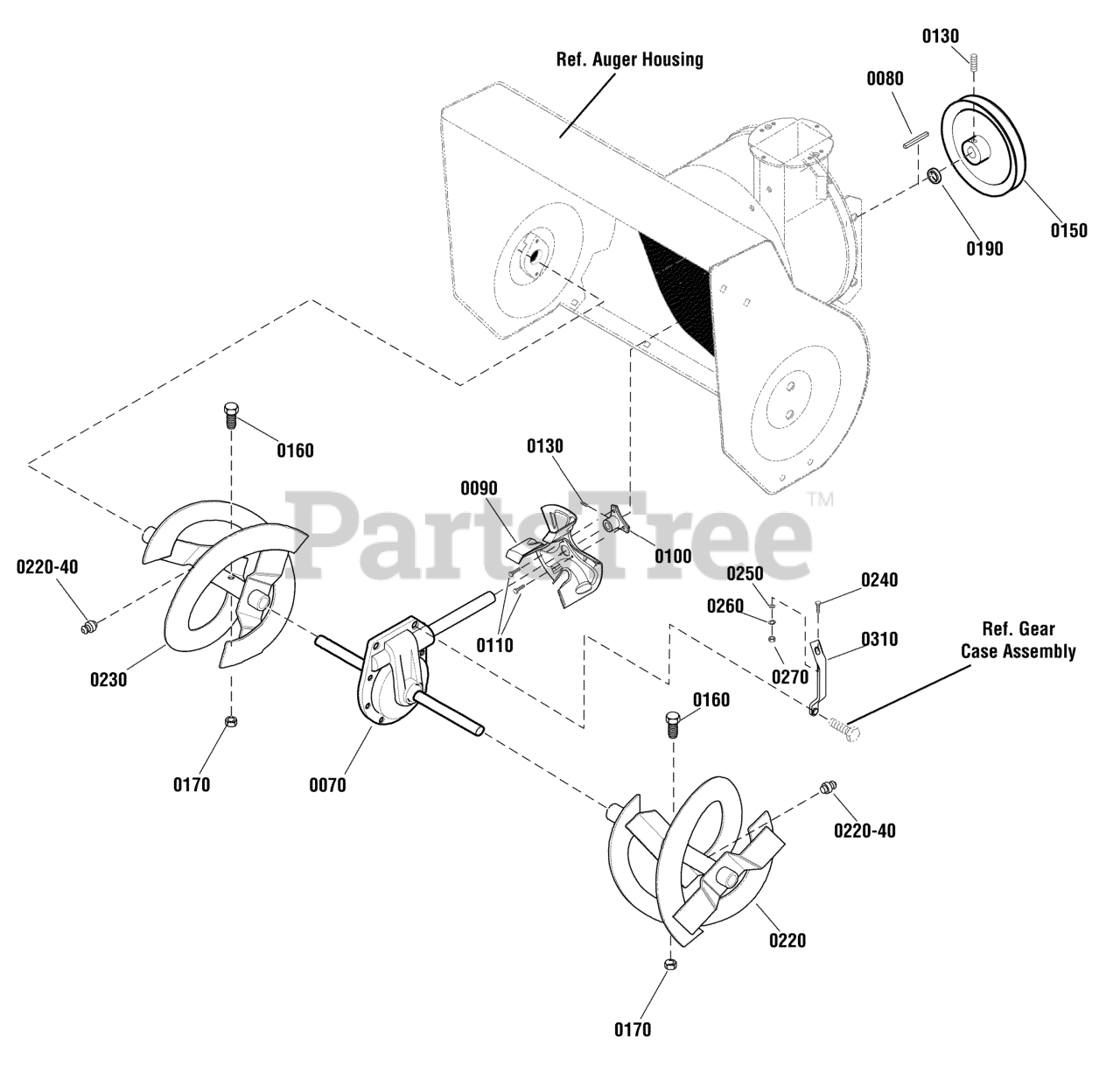

1696485-00 (CH 842100 SE) - Canadiana 33" Snow Thrower, Canada (2015) Auger Drive Group Parts Diagram

33" Snow Thrower, Canada

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1753711YP

GEAR CASE ASSEMBLY

$586.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.99

$

In Stock, Qty 11

0

0090

Murray 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$91.99

$

In Stock, only 2 left!

0

0100

Murray 1739073YP

HUB, Impeller

$24.99

$

In Stock, only 2 left!

0

0110

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

0130

Murray 1930540SM

SET SCREW, Square Head, 5/16-18 x 5/8, G8

$4.99

$

In Stock, Qty 7

0

0150

Murray 1501211MA

PULLEY

$76.99

$

In Stock, only 2 left!

0

0160

Murray 578647MA

BOLT, Shoulder, 5/16-18 x 1-3/4
(Superseded to 703335)

$6.99

$

Usually ships in 2-12 days

0

0170

Murray 71391MA

NUT, Hex Centerlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0190

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 7

0

0220

Murray 1738145AYP

AUGER, LH, 33

Note: (Includes Ref. No. 0220-40)

$184.99

$

Usually ships in 2-12 days

0

0230

Murray 1738144AYP

AUGER, RH, 33

Note: (Includes Ref. No. 0220-40)

$154.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0240

Murray 302636MA

CAPSCREW, Hex Head, 5/16-18 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0250

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 11

0

0260

Murray 71060MA

WASHER, Split Lock, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

0270

Murray 15X144MA

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

0310

Murray 1740570MA

BRACE, Gear Box
(Superseded to 703131)

$9.99

$

Usually ships in 2-12 days

0

--

Murray 1501217MA

KIT, Shear Bolt

Note: (Includes Ref. Nos. 0160 & 0170)

$8.99

$

Usually ships in 2-12 days

0
