1696485-00 (CH 842100 SE) - Canadiana 33" Snow Thrower, Canada (2015) Discharge Chute Group Parts Diagram

33" Snow Thrower, Canada

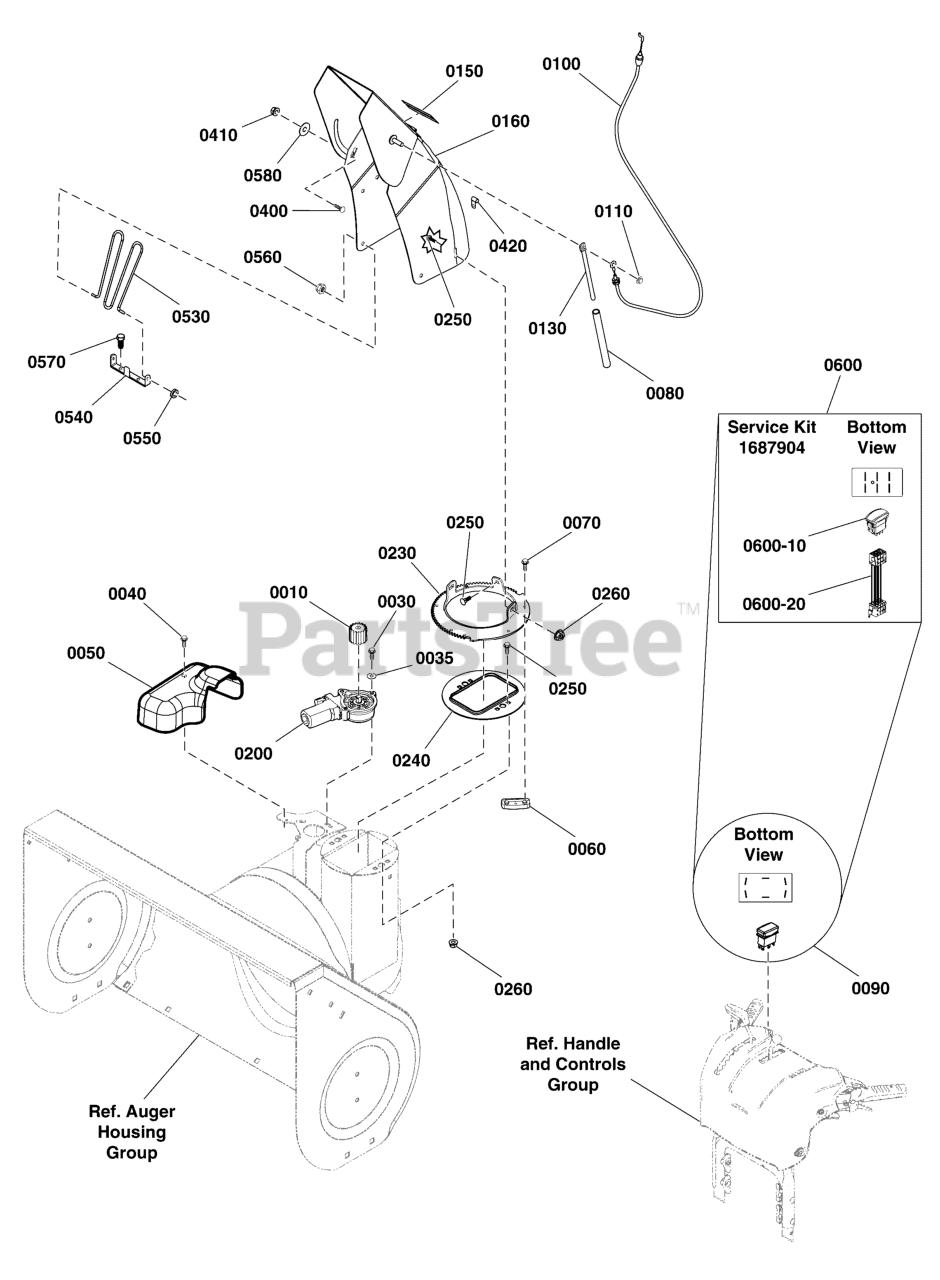

Discharge Chute Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION

$17.99

$

In Stock, Qty 11

0

0030

Murray 1739621YP

SCREW, Button Head, Torx, M5 x .8 x 14

$4.49

$

In Stock, Qty 6

0

0035

Murray 7091552SM

WASHER, Flat, 1/4

$3.99

$

In Stock, only 4 left!

0

0040

Murray 703466

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

0050

Murray 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 4 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$

$

Not available

0070

Murray 703062

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8

$4.49

$

In Stock, Qty 20+

0

0080

Murray 703135

SPRING, Compression, 6"

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 1752240YP

SWITCH, Chute Rotation
(Superseded to 1687904)

$82.99

$

In Stock, Qty 10

0

0100

Murray 1750623YP

CABLE ASSEMBLY, Chute Deflector

$49.99

$

In Stock, Qty 5

0

0110

Murray 704028

NUT, Push, 5/16

$5.49

$

In Stock, Qty 9

0

0130

Murray 1734708ASM

ROD, Spring Guide

$13.99

$

Usually ships in 2-12 days

0

0140

Murray 7012080SM

CABLE TIE
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0160

Murray 1752840AYP

CHUTE

$182.99

$

Usually ships in 2-12 days

0

0200

Murray 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

$86.99

$

In Stock, Qty 20+

0

0230

Murray 1737962BMYP

GEAR, Chute

$40.99

$

Usually ships in 2-12 days

0

0240

Murray 1737411YP

ADAPTER, Chute Ring

$19.99

$

Usually ships in 2-12 days

0

0250

Murray 703440

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 9

0

0260

Murray 703061

NUT, Hex KEPS, 1/4-20

$3.49

$

In Stock, only 3 left!

0

0400

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0410

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0420

Murray 703174

CLIP

$4.49

$

Usually ships in 2-12 days

0

0530

Murray 1733475SM

GUARD, Chute

$21.99

$

Usually ships in 2-12 days

0

0540

Murray 1752883YP

BRACKET, Chute Guard

$15.99

$

Usually ships in 2-12 days

0

0550

Murray 1738174YP

GROMMET

$4.49

$

Usually ships in 2-12 days

0

0560

Murray 1960140SM

NUT, Push, 3/16

$3.49

$

Usually ships in 2-12 days

0

0570

Murray 704130

SCREW, Hex Head, Taptite, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 20+

0

0580

Murray 2860210SM

WASHER, Nylon

$4.49

$

In Stock, Qty 5

0
