1696485-00 (CH 842100 SE) - Canadiana 33" Snow Thrower, Canada (2015) Engine & Frame Group Parts Diagram

33" Snow Thrower, Canada

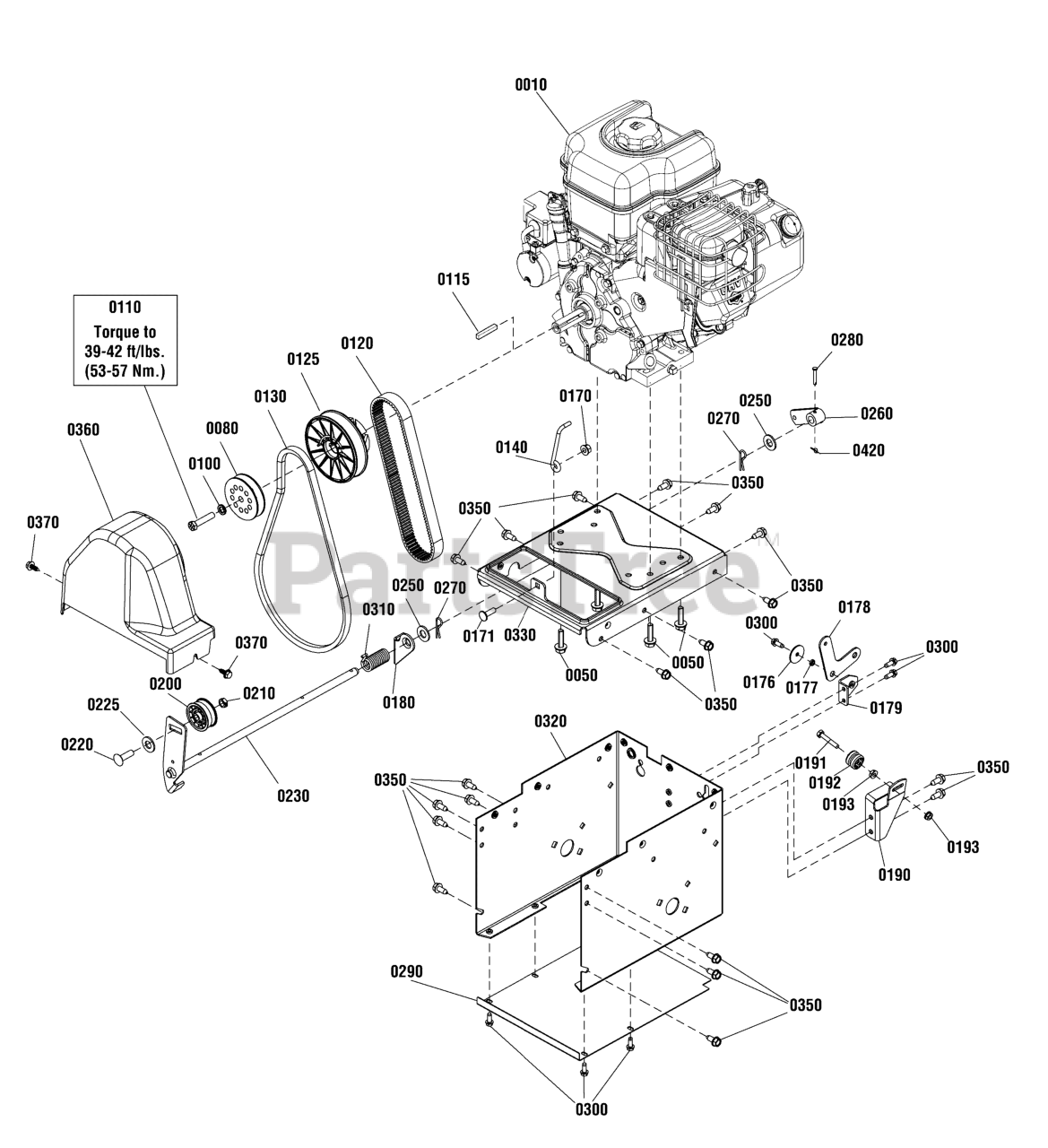

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 25M137-0020-H1

* ENGINE, 21 Gross TP Briggs & Stratton

Note: (Engine Model: 25M137-0020-H1)

$

$

Not available

0050

Murray 75246GS

CAPSCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 1737509YP

PULLEY ASSEMBLY

$

$

Not available

0100

Murray 703454

LOCKWASHER, Spring, 3/8

$3.49

$

In Stock, Qty 11

0

0110

Murray 703132

CAPSCREW, Hex Head, 3/8-24 x 1-3/4

$3.99

$

Usually ships in 2-12 days

0

0115

Murray 2157427SM

KEY, Parallel

$5.49

$

In Stock, only 1 left!

0

0120

Murray 1754209YP

V-BELT, Multi Speed

$35.99

$

In Stock, Qty 12

0

0125

Murray 1733968YP

PULLEY ASSEMBLY

$76.99

$

In Stock, only 1 left!

0

0130

Murray 1754211YP

BELT, Auger, V4L 38.10 MF 05-10B

$40.99

$

Usually ships in 2-12 days

0

0140

Murray 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0170

Murray 703222

NUT, Hex KEPS, Conical Washer, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0171

Murray 703800

BOLT, Carriage, 5/16-18 x 1 G5

$3.99

$

In Stock, Qty 16

0

0176

Murray 703136

WASHER, 1/4 x 1-1/4 x 1/16

$3.99

$

Usually ships in 2-12 days

0

0177

Murray 703124

SPACER, Powdered Metal

$3.99

$

Usually ships in 2-12 days

0

0178

Murray 1737329YP

BELLCRANK

$29.99

$

Usually ships in 2-12 days

0

0179

Murray 1737328AYP

BRACKET, Lower

$11.99

$

Usually ships in 2-12 days

0

0180

Murray 1737297YP

BRACKET, Support, Auger Idler

$9.49

$

Usually ships in 2-12 days

0

0190

Murray 1737347AYP

BRACKET, Guide Wheel

$21.99

$

Usually ships in 2-12 days

0

0191

Murray 703234

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5

$4.49

$

In Stock, only 3 left!

0

0192

Murray 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 10

0

0193

Murray 703233

NUT, Lock, Serrated, 1/4-20

$4.49

$

In Stock, only 2 left!

0

0200

Murray 1502120MA

IDLER, Plastic, Ball Bearing

$21.99

$

In Stock, only 1 left!

0

0210

Murray 703230

NUT, Hex Jam, 3/8-16

$4.99

$

In Stock, only 2 left!

0

0220

Murray 703227

BOLT, Carriage, 3/8-16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0225

Murray 1670971SM

WASHER, Thrust

$4.49

$

In Stock, Qty 7

0

0230

Murray 1737296YP

IDLER, Auger
(Superseded to 1756662YP)

$57.99

$

Usually ships in 2-12 days

0

0250

Murray 703128

WASHER, 1/2" Flat

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

BRACKET & HUB ASSEMBLY, Spring

$20.99

$

In Stock, Qty 5

0

0270

Murray 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0280

Murray 703313

PIN, Clevis

$4.99

$

In Stock, Qty 8

0

0290

Murray 1737221AYP

PANEL, Bottom
(Superseded to 1737221BMYP)

$43.99

$

Usually ships in 2-12 days

0

0300

Murray 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0310

Murray 1737350YP

SPRING, Torsional

$7.99

$

In Stock, only 1 left!

0

0320

Murray 1737106BNYP

FRAME BOX

$113.99

$

Usually ships in 2-12 days

0

0330

Murray 706515

PLATE, Engine Mount

$56.99

$

Usually ships in 2-12 days

0

0350

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1754153YP

COVER, Belt

$47.99

$

Usually ships in 2-12 days

0

0370

Murray 1751355YP

SCREW, Hex Washer Head, SEMS, Taptite, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0420

Murray 7023590SM

COTTER PIN, 1/4" Self Locking

$3.99

$

In Stock, Qty 20+

0

0470

Murray 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0
