1696524-00 (CL 61750 R) - Canadiana 24" Snow Thrower, Canada (2015) Discharge Chute Group - Left Hand Crank Parts Diagram

24" Snow Thrower, Canada

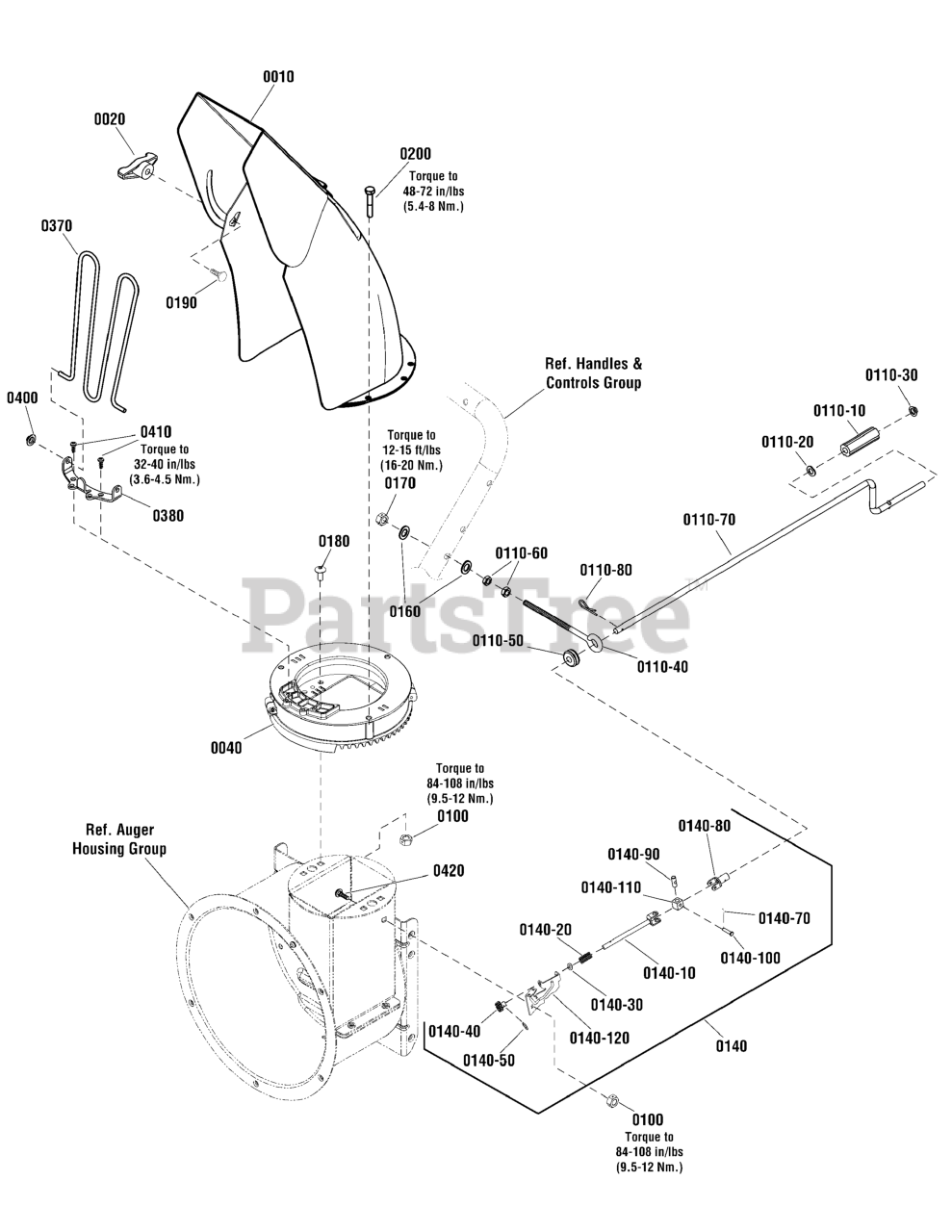

Discharge Chute Group - Left Hand Crank Parts Diagram

  • Title

0010

Murray 1736313YP

CHUTE

$113.99

$

Usually ships in 2-12 days

0

0020

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

0040

Murray 1752395YP

CHUTE ROTATION ASSEMBLY, LH Crank

$42.99

$

Usually ships in 2-12 days

0

0100

Murray 1923358SM

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$5.49

$

In Stock, Qty 12

0

0110-10

Murray 51443MA

KNOB, Sleeve

$7.49

$

Usually ships in 2-12 days

0

0110-20

Murray 309312MA

WASHER. Flat, 3/8

$4.99

$

In Stock, Qty 5

0

0110-30

Murray 73664MA

NUT, Push, 3/8

$5.49

$

Usually ships in 2-12 days

0

0110-40

Murray 1501456MA

EYEBOLT, 3/8-16 x 6-1/2"

$9.99

$

Usually ships in 2-12 days

0

0110-50

Murray 148MA

GROMMET, Eye Bolt

$5.49

$

Usually ships in 2-12 days

0

0110-60

Murray 71045MA

NUT, Hex Jam, 3/8-16

$5.49

$

Usually ships in 2-12 days

0

0110-70

Murray 1501074YZMA

CRANK, Chute Turn

$

$

Not available

0110-80

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0140

Murray 1752560YP

BRACKET ASSEMBLY, Chute Rotation

Note: (Includes Ref. Nos. 0140-10, 0140-20, 0140-30, 0140-40, 0140-50, 0140-60, 0140-70, 0140-80, 0140-90, 0140-100, 0140-110 & 0140-120)

$58.99

$

Usually ships in 2-12 days

0

0140-10

Murray 1501533YZMA

ROD, Yoke Crank

$12.99

$

In Stock, only 1 left!

0

0140-20

Murray 164X37MA

SPRING, Compression

$9.99

$

In Stock, only 1 left!

0

0140-30

Murray 017X48MA

WASHER, Flat, 3/8

$8.99

$

Usually ships in 2-12 days

0

0140-40

Murray 1501067MA

GEAR, 9 Tooth

$18.99

$

In Stock, only 3 left!

0

0140-50

Murray 1501293MA

PIN, Hair

$4.99

$

Usually ships in 2-12 days

0

0140-70

Murray 579493MA

PIN, Cotter

$4.49

$

In Stock, Qty 10

0

0140-80

Murray 1501075YZMA

YOKE TUBE ASSEMBLY, Adapter

$10.99

$

Usually ships in 2-12 days

0

0140-90

Murray 578060MA

PIN, Universal Joint

$7.99

$

In Stock, Qty 9

0

0140-100

Murray 578309MA

PIN, Clevis, 1/4

$5.99

$

In Stock, Qty 6

0

0140-110

Murray 578063MA

BLOCK, Universal Pivot

$5.99

$

In Stock, Qty 8

0

0140-120

BRACKET, Mounting, Chute Rotation Gear

Note: (Not a serviceable part. Order Ref. No. 0140)

$

$

Not available

0160

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 3 left!

0

0170

Murray 71046MA

NUT, Hex, Nylock, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 880456YP

SCREW, Torx Truss Head, 1/4-20 x 7/8

$3.49

$

Usually ships in 2-12 days

0

0190

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

0200

Murray 880804YP

SCREW, Hi-Lo, 1/4 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0370

Murray 1733475SM

GUARD, Chute

$22.99

$

Usually ships in 2-12 days

0

0380

Murray 1737683YP

BRACKET, Chute Guard
(Superseded to 1752883YP)

$16.99

$

Usually ships in 2-12 days

0

0400

Murray 1960140SM

NUT, Push, 3/16

$3.49

$

Usually ships in 2-12 days

0

0410

Murray 880070YP

SCREW, 310, Hi-Lo x 1/2

$3.49

$

Usually ships in 2-12 days

0

0420

Murray 1931315SM

BOLT, Carriage, Short Neck, 1/4-20 x 1/2, G5
(Superseded to 703978)

$3.99

$

In Stock, Qty 18

0
