1696524-00 (CL 61750 R) - Canadiana 24" Snow Thrower, Canada (2015) Handles & Controls Group Parts Diagram

24" Snow Thrower, Canada

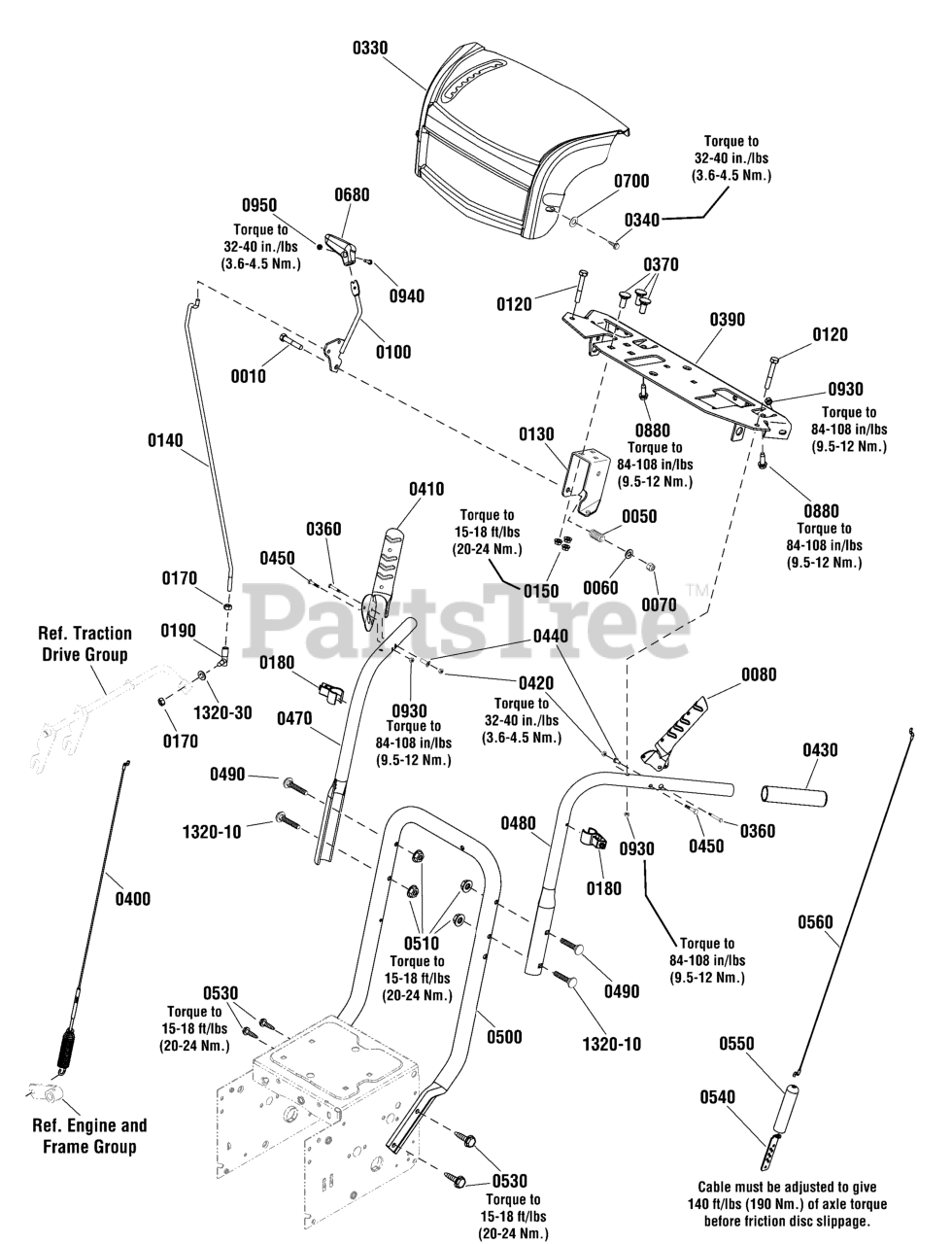

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 703589

CAPSCREW, Hex Head, 3/8-16 x 2, G5

$4.49

$

In Stock, Qty 11

0

0050

Murray 50786MA

SPRING, 3/4

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 705390

WASHER, 3/8

$

$

Currently unavailable

0070

Murray 703117

NUT, Hex Lock, ESNA Light, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0100

Murray 703047

SPEED LEVER

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5

$3.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 704085

ROD, Speed Control

$22.99

$

Usually ships in 2-12 days

0

0150

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0170

Murray 703331

NUT, Hex, 5/16-24

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1739510YP

BRACKET, Handle, Lower Mounting

$14.99

$

Usually ships in 2-12 days

0

0190

Murray 703224

BALL JOINT

$21.99

$

Usually ships in 2-12 days

0

0330

Murray 1753096YP

DASH ASSEMBLY
(Superseded to 1757540YP)

$109.99

$

Usually ships in 2-12 days

0

0340

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1750554YP

BOLT, Shoulder

$4.99

$

In Stock, only 1 left!

0

0370

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0390

Murray 1739500AYP

SUPPORT, Dash

$51.99

$

Usually ships in 2-12 days

0

0400

Murray 703221

CABLE, Auger Drive

$24.99

$

In Stock, only 3 left!

0

0410

Murray 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0420

Murray 703412

NUT, Hex Lock, Nylon Insert, 10-24

$4.49

$

In Stock, Qty 12

0

0430

Murray 1726317SM

GRIP

$8.49

$

In Stock, only 3 left!

0

0440

Murray 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 703045

BOLT, Shoulder, 1/4-20 x 1-3/4, GR5

$3.49

$

Usually ships in 2-12 days

0

0470

Murray 1734587ASM

HANDLE, Upper, RH

$51.99

$

Usually ships in 2-12 days

0

0480

Murray 1734586ASM

HANDLE, Upper, LH

$55.99

$

In Stock, only 1 left!

0

0490

Murray 704421

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, G5

$5.49

$

Usually ships in 2-12 days

0

0500

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0530

Murray 703949

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8

$3.99

$

In Stock, Qty 18

0

0540

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0550

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

In Stock, only 1 left!

0

0560

Murray 1501124MA

CABLE, Forward Drive
(Superseded to 762259MA)

$12.99

$

Usually ships in 2-12 days

0

0680

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 17

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 18

0

0930

Murray 703232

NUT, Hex Lock, ESNA Light, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0940

Murray 1960589SM

SCREW, Phillips Head, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0950

Murray 703412

NUT, Hex Lock, Nylon Insert, 10-24

$4.49

$

In Stock, Qty 12

0

1320-10

Murray 1931338SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

1320-30

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
