1696545-00 - Simplicity 42" Mower Deck 42" (107cm) Mower Deck - Height Adjustment & Roller Bar Group (2991670) Parts Diagram

42" Mower Deck

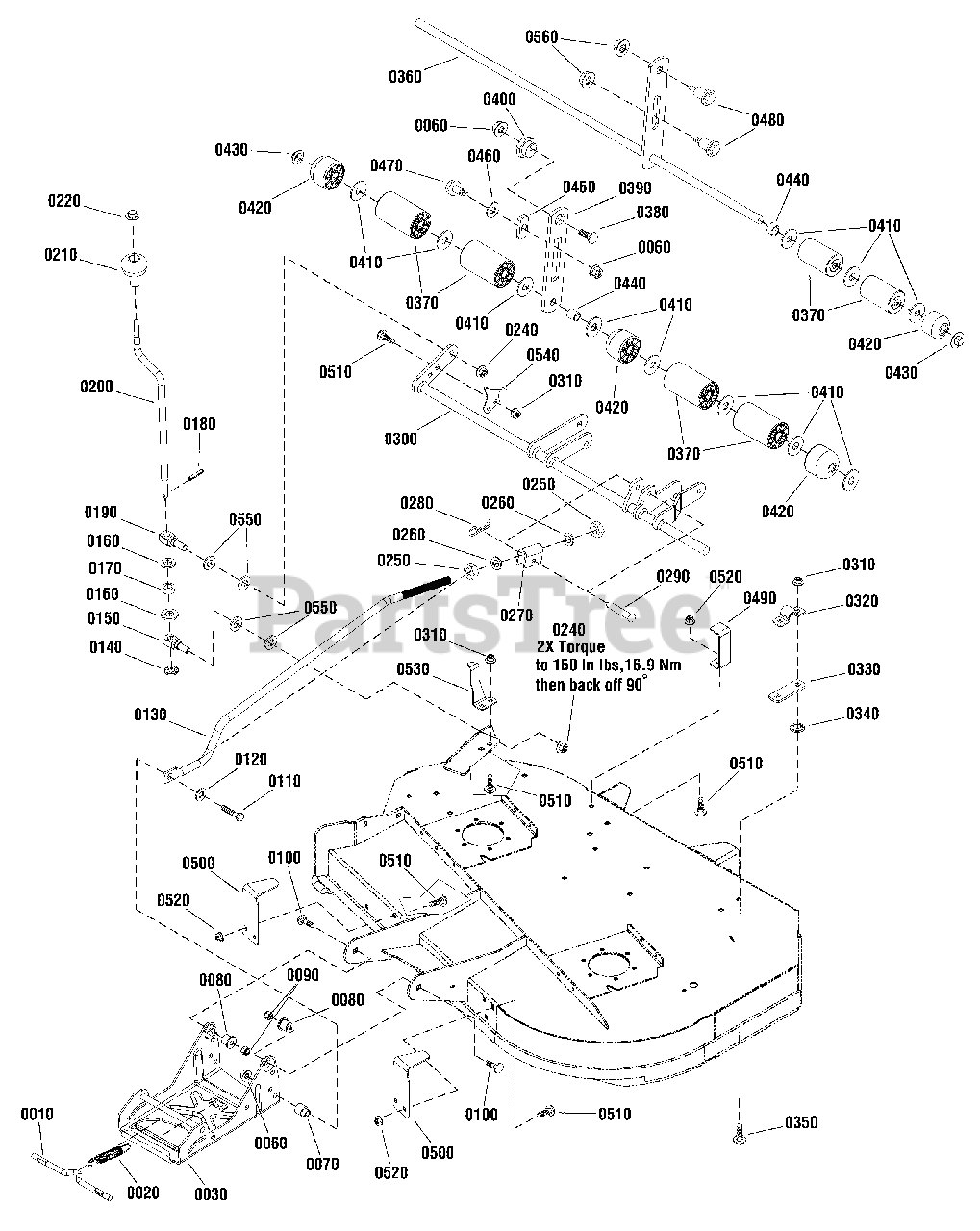

42" (107cm) Mower Deck - Height Adjustment & Roller Bar Group (2991670) Parts Diagram

  • Title

0010

Simplicity 1715759SM

ROD, 3/8

$7.99

$

In Stock, Qty 8

0

0020

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 11

0

0030

Simplicity 1760192AYP

HITCH

$155.99

$

In Stock, only 2 left!

0

0060

Simplicity 2860681SM

NUT, Top Lock, Flange, 3/8-16

$4.49

$

In Stock, Qty 12

0

0070

Simplicity 1706644SM

SPACER, 3/8 X 3/4 X 15/16

$8.49

$

In Stock, only 2 left!

0

0080

Simplicity 1732443SM

SPACER, 3/8 X 3/4 X 3/4

$5.99

$

In Stock, Qty 6

0

0090

Simplicity 71046MA

NUT, Ny Lock, 3/8-16, GR5

$4.49

$

Usually ships in 2-12 days

0

0100

Simplicity 7091945YP

Bolt, Carriage, 3/8 X 1 1/2, GR5

$4.49

$

In Stock, only 2 left!

0

0110

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 15

0

0120

Simplicity 703878

WASHER, Flat

$3.99

$

In Stock, Qty 20+

0

0130

Simplicity 1758543YP

ROD, Pitch

$50.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1704097SM

WASHER, Detent

$4.49

$

In Stock, only 1 left!

0

0150

Simplicity 1733257SM

TRUNNION

$28.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703853

WASHER, Special

$4.99

$

In Stock, Qty 20+

0

0170

Simplicity 1716953SM

SPACER, .453 X 3/4 X 0.39

$13.99

$

Usually ships in 2-12 days

0

0180

Simplicity 2816001SM

PIN, Spring

$4.49

$

In Stock, only 1 left!

0

0190

Simplicity 1733258SM

TRUNNION

$

$

Not available

0200

Simplicity 1719901SM

CRANK, Height Adjust

$48.99

$

In Stock, Qty 10

0

0210

Simplicity 1714084SM

KNOB, Spinnner

$12.99

$

In Stock, Qty 7

0

0220

Simplicity 703948

PUSHNUT, 3/8

$4.49

$

In Stock, Qty 15

0

0240

Simplicity 1930644SM

NUT, Hex Flange, 1/2-13, Two Way

$3.49

$

In Stock, only 1 left!

0

0250

Simplicity 703912

NUT, Hex, 5/8-11

$3.49

$

In Stock, only 1 left!

0

0260

Simplicity 703580

WASHER, Special

$4.49

$

In Stock, Qty 20+

0

0270

Simplicity 1706645BMYP

TRUNNION

$

$

Not available

0280

Simplicity 403162MA

PIN, Hair, 3/32 X 1.6

$

$

Not available

0290

Simplicity 704241

PIN, Round Head, 3/8 X 2

$9.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1758546BMYP

SHAFT, Rocker

$290.99

$

Usually ships in 2-12 days

0

0310

Simplicity 703115

NUT, Ny Lock Flange, 5/16-18, GR F

$3.49

$

In Stock, Qty 17

0

0320

Simplicity 1665374ASM

STRAP, Rocker Shaft

$

$

Not available

0330

Simplicity 1757527YP

SPACER, Bearing Strap

$9.99

$

Usually ships in 2-12 days

0

0340

Simplicity 703297

RETAINER, Pushnut, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0350

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 16

0

0360

Simplicity 1758959BMYP

SHAFT, Roller

$78.99

$

In Stock, only 1 left!

0

0370

Simplicity 1668513SM

ROLLER, 5/8 x 2 1/2 4.10

$10.99

$

In Stock, Qty 20+

0

0380

Simplicity 1931352SM

BOLT, Carriage 3/8-16 X 1 1/2, G5

$4.49

$

In Stock, Qty 10

0

0390

Simplicity 1758738BMYP

BAR, Roller

$34.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 10

0

0410

Simplicity 1960035SM

WASHER, 5/8

$4.49

$

In Stock, Qty 13

0

0420

Simplicity 1717675SM

ROLLER, Rounded

$6.99

$

In Stock, Qty 20+

0

0430

Simplicity 1960520SM

NUT, Push, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0440

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 13

0

0450

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, Qty 17

0

0460

Simplicity 703451

WASHER, Flat

$4.49

$

In Stock, only 1 left!

0

0470

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0480

Simplicity 7092017YP

BOLT, Shoulder, 1/2F x 1.15 x 5/8

$7.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1759107BMYP

UPSTOP

$17.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1759106BMYP

UPSTOP

$20.99

$

Usually ships in 2-12 days

0

0510

Simplicity 703225

BOLT, Carriage, 5/16-18 X 3/4,GR5

$3.99

$

In Stock, Qty 20+

0

0520

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0530

Simplicity 1759138BMYP

INDICATOR, Height of Cut

$12.99

$

Usually ships in 2-12 days

0

0540

Simplicity 1759137BMYP

BRACKET, Height of Cut

$11.99

$

Usually ships in 2-12 days

0

0550

Simplicity 703580

Washer, 5/8

$4.49

$

In Stock, Qty 20+

0

0540

Simplicity 1759137BMYP

BRACKET, Height of Cut

$11.99

$

Usually ships in 2-12 days

0

0560

Simplicity 15X112MA

NUT, Hex Flange, 1/2-20

$5.49

$

Usually ships in 2-12 days

0
