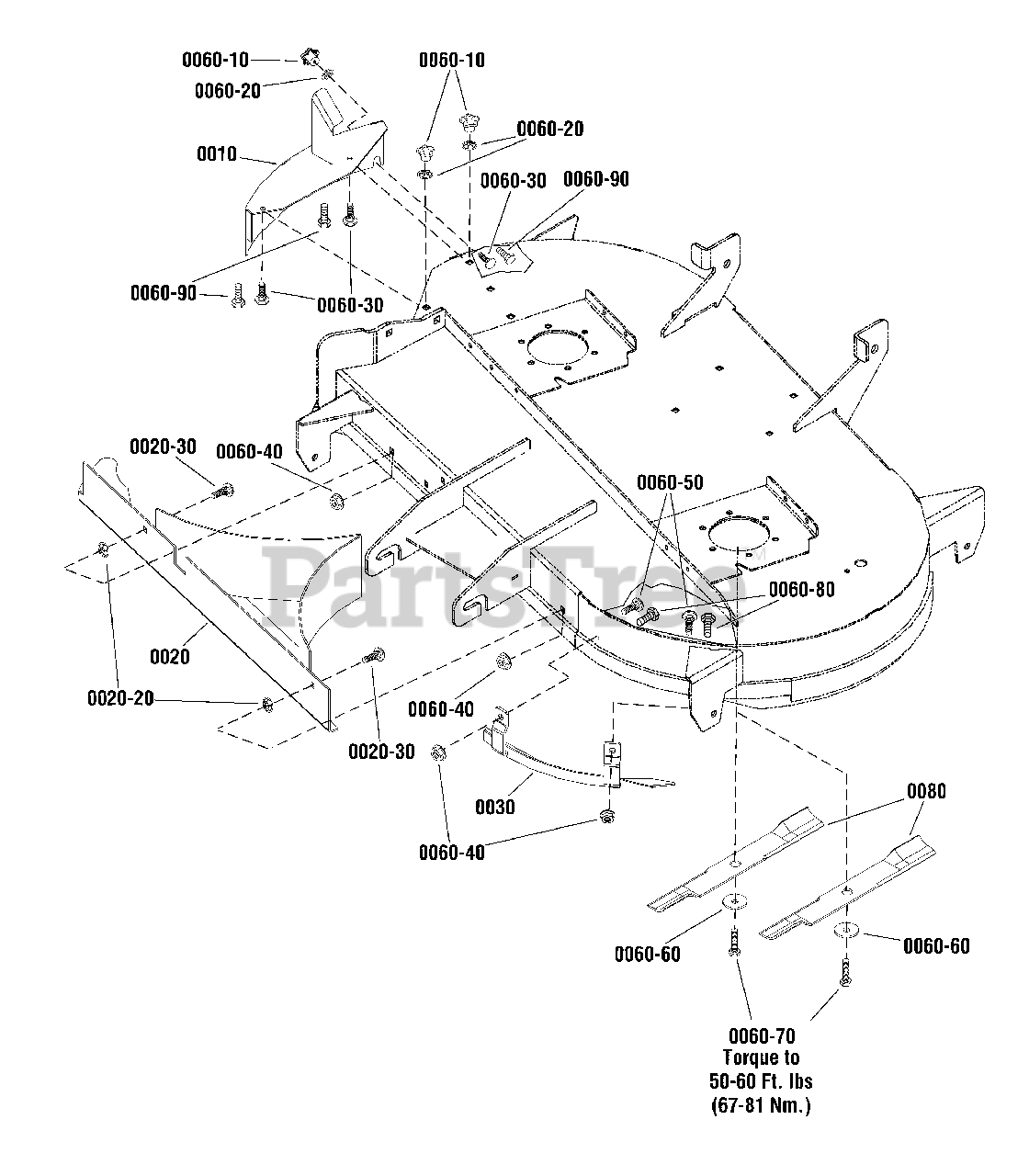

Snapper 1696550 YP - Snapper Mulch Kit for 42" Mower 42" Mulching Kit Parts Lookup with Diagrams

0010

Snapper 1759241AYP

COVER, Mulching 42"

$197.99

$

Usually ships in 2-12 days

0020

Snapper 1759126AYP

BAFFLE, Mulching, Center

$549.99

$

Usually ships in 2-12 days

0020-20

Snapper 703297

RETAINER

$3.99

$

In Stock, Qty 7

0020-30

Snapper 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 14

0030

Snapper 1759309AYP

BAFFLE, Mulching, LH

$112.99

$

Usually ships in 2-12 days

--

Snapper 1759323

HARDWARE BAG

Note: (Not a serviceable part)

$

Not available 

0060-10

Snapper 706490

HANDLE, 5 Prong

$15.99

$

In Stock, only 3 left!

0060-20

Snapper 703826

PUSHNUT, Retainer

$3.49

$

In Stock, only 3 left!

0060-30

Snapper 703576

BOLT, Carriage, 1/4-20 x 3/4

(Superseded to 703101) 

$4.49

$

In Stock, only 3 left!

0060-40

Snapper 703826

NUT, Nylock, 5/16-18

$3.49

$

In Stock, only 3 left!

0060-50

Snapper 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 14

0060-60

Snapper 1656916SM

WASHER, Spring

$7.99

$

In Stock, Qty 20+

0060-70

Snapper 2820676SM

CAPSCREW, Hex Head, 7/16-14 X 1

(Superseded to 1920676SM) 

$5.49

$

In Stock, only 2 left!

0060-80

Snapper 703408

CAPSCREW, Hex Head, 5/16-18 x 7/8

$4.99

$

In Stock, Qty 7

0060-90

Snapper 710025MA

SCREW, 1/4-20 x 3/4

$4.99

$

Usually ships in 2-12 days

0080

Snapper 1759262BMYP

BLADE, 42"

$31.99

$

In Stock, Qty 10

--
