1696568-00 - Parton 24" Snow Thrower, 9hp (2015) Engine & Frame Group Parts Diagram

24" Snow Thrower, 9hp

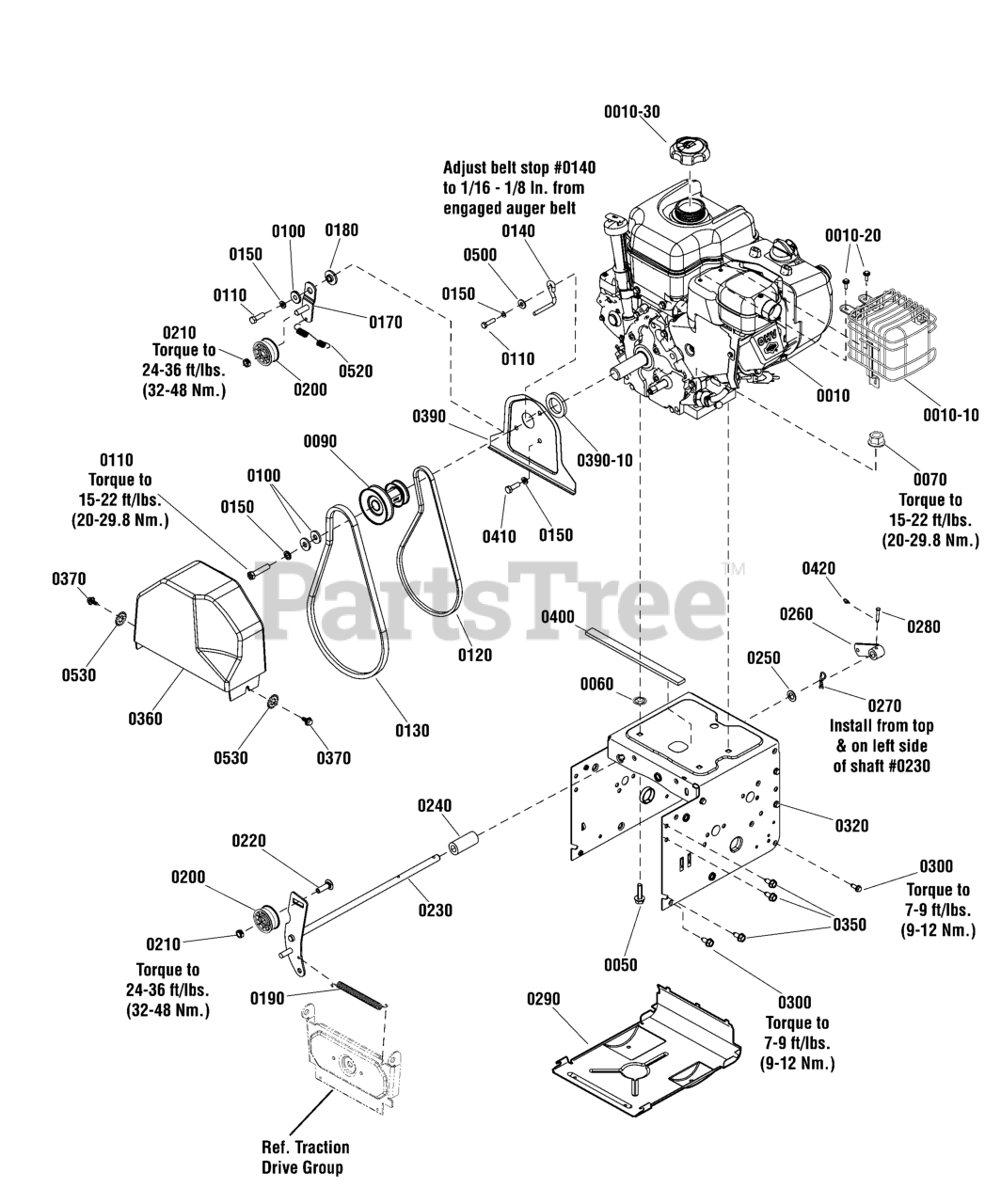

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 12D106-0168-F8

* ENGINE, 900 Series Briggs & Stratton

Note: (Engine Model: 12D106-0168-F8)

$

$

Not available

0010-10

Murray 793193

GUARD, Muffler

$55.99

$

Usually ships in 2-12 days

0

0010-20

Murray 699854

SCREW, Muffler Guard

$3.99

$

In Stock, Qty 19

0

0010-30

Murray 795027

CAP, Fuel Tank

$10.99

$

In Stock, only 3 left!

0

0050

Murray 703296

BOLT, Carriage, 5/16-18 x 1 1/2

$4.49

$

In Stock, Qty 10

0

0060

Murray 028X76MA

Nut, Push

$4.49

$

In Stock, only 1 left!

0

0070

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0090

Murray 1501109MA

PULLEY, Engine

$41.99

$

In Stock, Qty 6

0

0100

Murray 703298

WASHER, 5/16

$4.49

$

In Stock, Qty 14

0

0110

Murray 703299

CAPSCREW, Hex Head, 5/16-24 x 1-1/4, G5

$4.99

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, 3L 33.03

$19.99

$

In Stock, Qty 20+

0

0130

Murray 1751417YP

BELT, Auger

$28.99

$

In Stock, only 1 left!

0

0140

Murray 1739070YP

BELT GUIDE

$7.99

$

In Stock, Qty 6

0

0150

Murray 703116

LOCKWASHER, Spring, 5/16

$3.49

$

In Stock, Qty 20+

0

0170

Murray 1501112YZMA

BRACKET, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Ider Bracket

$5.49

$

In Stock, Qty 6

0

0190

Murray 165X159MA

SPRING, Extension, Auger

$6.99

$

In Stock, Qty 10

0

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, only 1 left!

0

0210

Murray 703230

NUT, Center Lock, 3/8-16

$4.99

$

In Stock, only 2 left!

0

0220

Murray 1960032SM

SCREW, Hex Head, 3/8-16 x 1 1/4

$5.49

$

In Stock, Qty 9

0

0230

Murray 1752397YP

AUGER IDLER

$63.99

$

Usually ships in 2-12 days

0

0240

Murray 1501200MA

SPACER, Plastic, 1/2 ID x 1 OD, 1-3/4

$5.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, Qty 5

0

0270

Murray 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0280

Murray 703313

PIN, Clevis

$4.99

$

In Stock, Qty 8

0

0290

Murray 1753969BMYP

COVER, Bottom

$75.99

$

Usually ships in 2-12 days

0

0300

Murray 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0320

Murray 1754891ZYP

FRAME BOX

$159.99

$

Usually ships in 2-12 days

0

0350

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1753893YP

COVER, Belt

$52.99

$

Usually ships in 2-12 days

0

0370

Murray 1751355YP

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0390

Murray 1733868BMYP

PLATE, Seal

$13.99

$

In Stock, only 1 left!

0

0390-10

Murray 1733898SM

SEAL, Shaft, 1/8" Thick

$6.49

$

Usually ships in 2-12 days

0

0400

Murray 1750172YP

STRIP, Seal

$7.49

$

Usually ships in 2-12 days

0

0410

Murray 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

0420

Murray 7023590SM

PIN, Cotter, 1/4

$3.99

$

In Stock, Qty 20+

0

0500

Murray 1924874SM

WASHER, Flat, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0520

Murray 165X164MA

SPRING, Extension, Idler

$7.49

$

In Stock, Qty 6

0

0530

Murray 7091890SM

WASHER, Internal Lock, 1/4

$4.49

$

Usually ships in 2-12 days

0
