1696569-00 - Parton 27" Snow Thrower, 11.5hp (2015) Discharge Chute Parts Diagram

27" Snow Thrower, 11.5hp

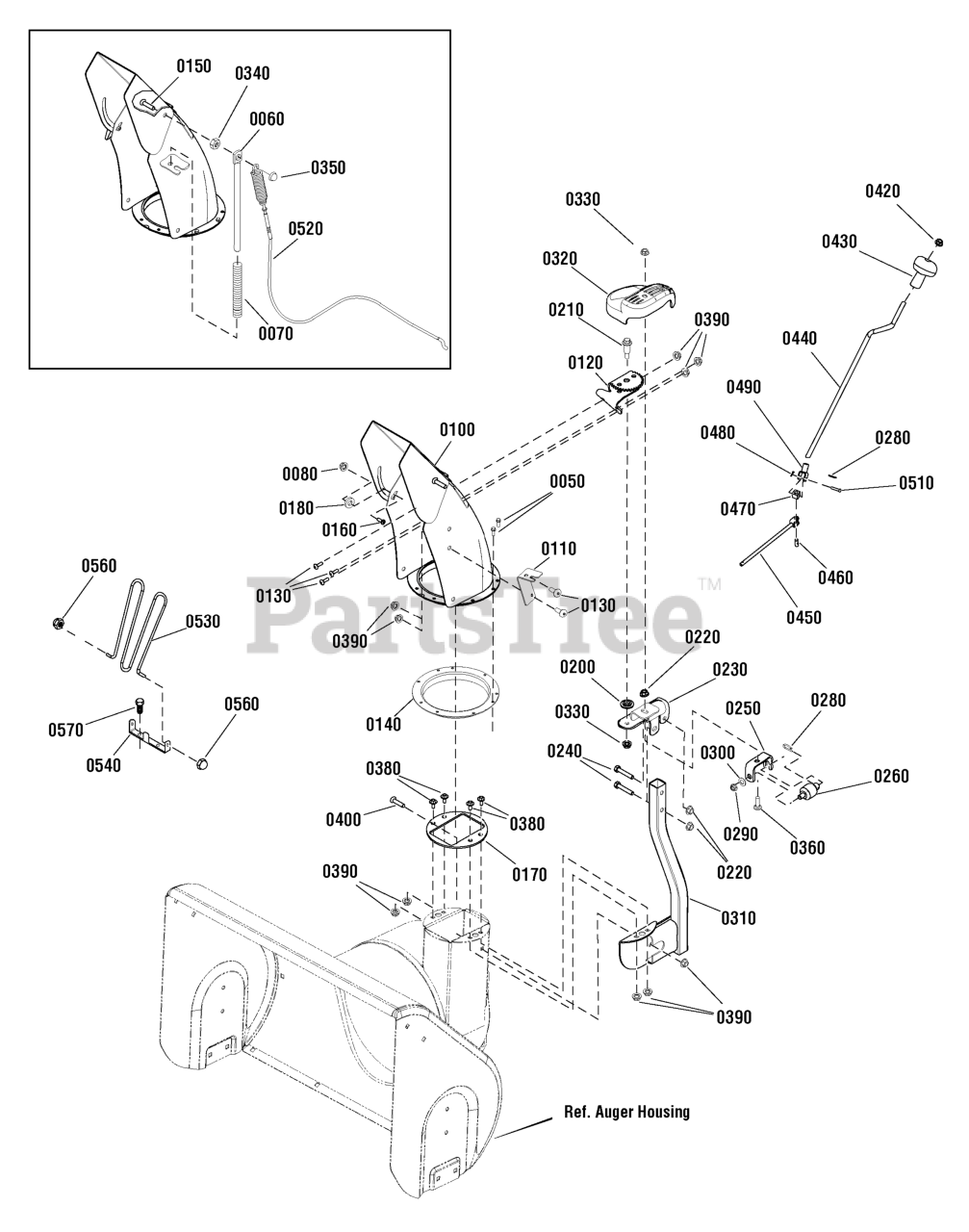

Discharge Chute Parts Diagram

  • Title

0050

Murray 0025X2MA

SCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0060

Murray 1734708ASM

ROD, Spring

$13.99

$

Usually ships in 2-12 days

0

0070

Murray 1734647SM

SPRING, Compression
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 1739305YP

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 13

0

0100

Murray 1736312YP

DISCHARGE CHUTE ASSEMBLY

$128.99

$

Usually ships in 2-12 days

0

0110

Murray 1736378AYP

BRACKET, Cable Deflector

$10.99

$

Usually ships in 2-12 days

0

0120

Murray 1736038YP

GEAR & SUPPORT ASSEMBLY, Chute
(Superseded to 704325)

$31.99

$

Usually ships in 2-12 days

0

0130

Murray 1960715SM

SCREW, Truss Head, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 14

0

0140

Murray 1736444AYP

RING, Chute Base
(Superseded to 1736444BMYP)

$27.99

$

Usually ships in 2-12 days

0

0150

Murray 1960767YP

SCREW, Allen, Button Head, 5/16-18 X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0160

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 18

0

0170

Murray 1735767YP

GUIDE, Chute Ring

$6.49

$

Usually ships in 2-12 days

0

0180

Murray 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, Qty 5

0

0200

Murray 1733026SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 1732412SM

BOLT, Shoulder 5/16-18, G5

$15.99

$

Usually ships in 2-12 days

0

0220

Murray 1960684SM

NUT, Hex KEPS, Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0230

Murray 1734423ASM

SUPPORT, Gear & Chute

$19.99

$

Usually ships in 2-12 days

0

0240

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

In Stock, only 3 left!

0

0250

Murray 1738020YP

SUPPORT, Worm "U"

$5.99

$

Usually ships in 2-12 days

0

0260

Murray 1734439SM

WORM, Chute L.H.

$35.99

$

Usually ships in 2-12 days

0

0280

Murray 1501293MA

PIN, Hair Chute Gear

$4.99

$

In Stock, only 2 left!

0

0290

Murray 1960762SM

NUT, Hex Lock Jam ESNA Lite 3/8-24

$4.99

$

Usually ships in 2-12 days

0

0300

Murray 1734542SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

0310

Murray 1736195AYP

CHUTE SUPPORT ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

0320

Murray 1734442SM

COVER, Gear

$7.99

$

In Stock, only 2 left!

0

0330

Murray 1935048SM

NUT, Hex Flange 5/16-18 Two Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0340

Murray 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0350

Murray 1928698SM

NUT, Hex Toplock Jam, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

0360

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 18

0

0380

Murray 691005

CAPSCREW, Hex-Flange, 1/4-20 x 5/8
(Superseded to 594618)

$3.99

$

In Stock, Qty 8

0

0390

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 5

0

0400

Murray 703101

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 5

0

0420

Murray 1960093SM

NUT, Push Pal 5/16 Diameter Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 19

0

0430

Murray 1714084SM

KNOB, SPINNER

$12.99

$

In Stock, Qty 10

0

0440

Murray 1751224YP

CRANK ROD

$14.99

$

Usually ships in 2-12 days

0

0450

Murray 1735660YP

CHUTE, Crank
(Superseded to 703173)

$27.99

$

Usually ships in 2-12 days

0

0460

Murray 578060MA

PIN, Universal Joint

$7.49

$

In Stock, Qty 5

0

0470

Murray 578063MA

BLOCK, Pivot

$5.49

$

In Stock, Qty 10

0

0480

Murray 579493MA

PIN, Cotter

$4.49

$

In Stock, only 4 left!

0

0490

Murray 1733611SM

YOKE ADAPTER ASSEMBLY

$35.99

$

In Stock, only 1 left!

0

0510

Murray 578309MA

PIN, CLEVIS

$5.49

$

Usually ships in 2-12 days

0

0520

Murray 1750623YP

CABLE & SPRING ASSEMBLY

$49.99

$

In Stock, Qty 5

0

0530

Murray 1733475SM

GUARD, Chute

$21.99

$

Usually ships in 2-12 days

0

0540

Murray 1752883YP

BRACKET, Chute Guard

$15.99

$

Usually ships in 2-12 days

0

0560

Murray 1960140SM

NUT, Push, 3/16

$3.49

$

Usually ships in 2-12 days

0

0570

Murray 0025X2MA

SCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0
