1696616-01 (1024 MD) - Brute 24" Snow Thrower, 9.5 Gross TP (2017) Wheels & Tires Group (6966Y_6967YCI) Parts Diagram

24" Snow Thrower, 9.5 Gross TP

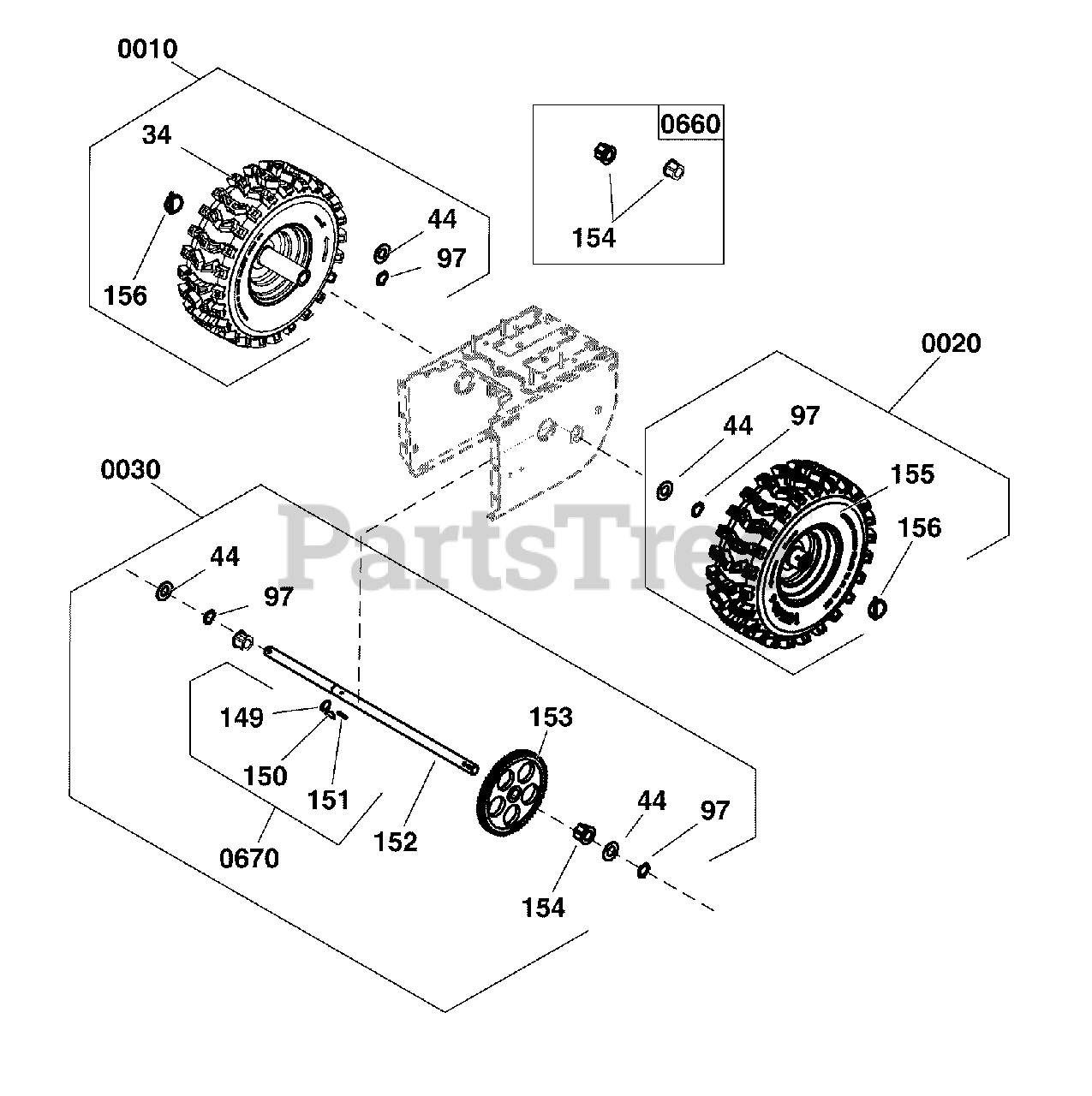

Wheels & Tires Group (6966Y_6967YCI) Parts Diagram

  • Title

0010

Briggs & Stratton 707765

KIT, Wheel & Tire, Right

Note: (Incl. Ref. Nos. 34, 44, 97 & 156)

$134.99

$

Usually ships in 2-12 days

0

34

*TIRE, Assembly, Right

Note: (Included with Ref. No. 0010)

$

$

Not available

44

*WASHER, Flat

Note: (Included with Ref. No. 0010)

$

$

Not available

97

*GASKET, Corrugated

Note: (Included with Ref. No. 0010)

$

$

Not available

156

*PIN, Klik

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Briggs & Stratton 707764

KIT, Wheel & Tire, Left

Note: (Incl. Ref. Nos. 44, 97, 155 & 156)

$134.99

$

Usually ships in 2-12 days

0

44

*WASHER, Flat

Note: (Included with Ref. No. 0020)

$

$

Not available

97

*GASKET, Corrugated

Note: (Included with Ref. No. 0020)

$

$

Not available

155

*TIRE, Assembly, Left

Note: (Included with Ref. No. 0020)

$

$

Not available

156

*PIN, Klik

Note: (Included with Ref. No. 0020)

$

$

Not available

0030

Briggs & Stratton 770078

KIT, Axle & Sprocket

Note: (Incl. Ref. Nos. 44, 97, 149, 150, 151, 152, 153 & 154)

$125.99

$

Usually ships in 2-12 days

0

44

*WASHER, Flat

Note: (Included with Ref. No. 0030)

$

$

Not available

97

*GASKET, Corrugated

Note: (Included with Ref. No. 0030)

$

$

Not available

149

*C-CLIP, Shaft

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

150

*KEY, Woodruff

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

151

*PIN, Spring

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

152

*SHAFT, Drive Wheel

Note: (Included with Ref. No. 0030)

$

$

Not available

153

*GEAR,Drive

Note: (Included with Ref. No. 0030)

$

$

Not available

154

*SLEEVE, Axle

Note: (Included with Ref. No. 0030 & 0660)

$

$

Not available

0660

Briggs & Stratton 707532

KIT, Axle Sleeve

Note: (Incl. Ref. Nos. 154)

$15.99

$

Usually ships in 2-12 days

0

154

*SLEEVE, Axle

Note: (Included with Ref. No. 0030 & 0660)

$

$

Not available

0670

Briggs & Stratton 707530

KIT, Bearing Hardware, Axle

Note: (Incl. Ref. Nos. 149, 150, & 151)

$9.49

$

Usually ships in 2-12 days

0

149

*C-CLIP, Shaft

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

150

*KEY, Woodruff

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

151

*PIN, Spring

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available
