1696620-02 (M 27/1150 MD) - Brute 27" Snow Thrower, 11.5 Gross TP (2018) Auger Housing Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

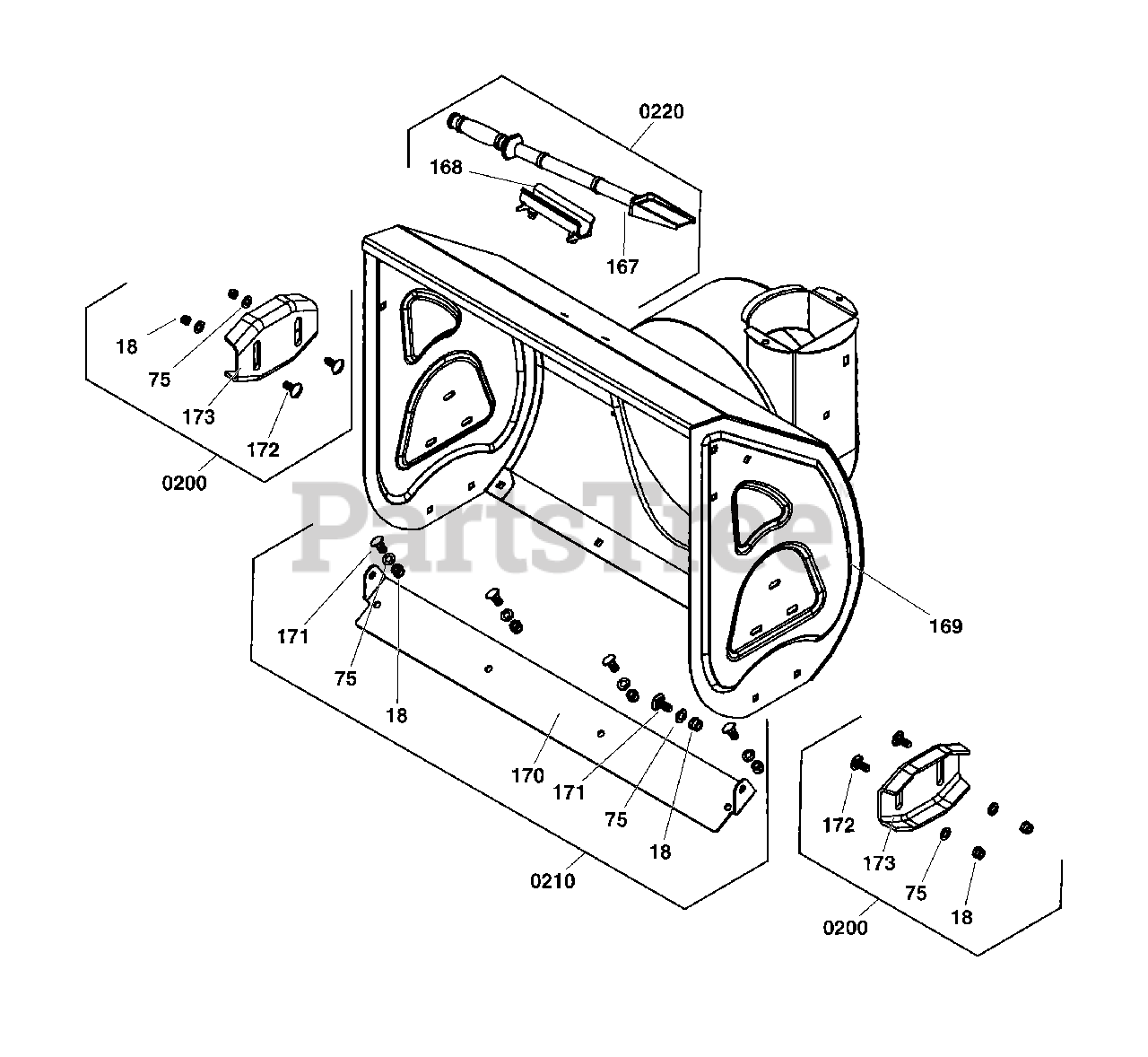

Auger Housing Group Parts Diagram

  • Title

169

*HOUSING, Auger, 27"

$

$

Not available

0200

Briggs & Stratton 707550

KIT, SKID SHOE
(Superseded to 84003710)

Note: (Incl. Ref. Nos. 18, 75, 172, 173)

$48.99

$

In Stock, only 2 left!

0

18

Label-Emissions

$

$

Not available

75

*WASHER, Flat

$

$

Not available

172

*BOLT, Square Neck, Cup Head

$

$

Not available

173

*SHOE, Skid

$

$

Not available

0210

Briggs & Stratton 707551

KIT-Scraper Bar

Note: (Incl. Ref. Nos. 18, 75, 170, 171)

$67.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

$

$

Not available

75

*WASHER, Flat

$

$

Not available

170

*BAR, Scrapper, 27" Housing

$

$

Not available

171

*BOLT, Square Neck, Cup Head

$

$

Not available

0220

Briggs & Stratton 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 167, 168)

$30.99

$

Usually ships in 2-12 days

0

167

*STICK, Cleanout

$

$

Not available

168

*BASE, Cleanout Stick

$

$

Not available
