1696664-00 (961440010-00) - Snapper 22" Walk-Behind Mower, 625 Series Briggs & Stratton Handles & Controls Group Parts Diagram

22" Walk-Behind Mower, 625 Series Briggs & Stratton

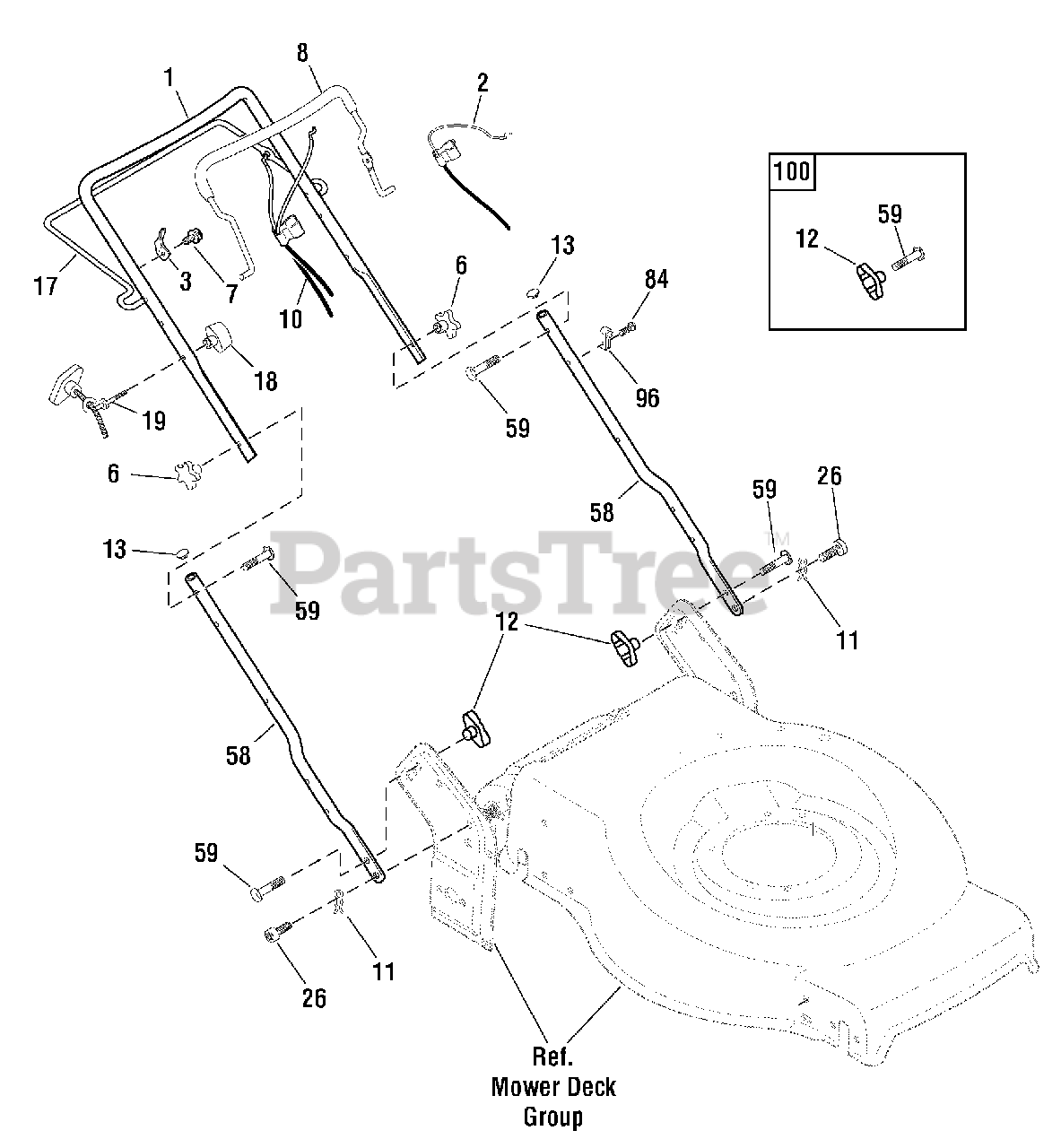

Handles & Controls Group Parts Diagram

  • Title

1

Snapper 707657

HANDLE, Upper

$46.99

$

Usually ships in 2-12 days

0

2

Snapper 707658

CABLE

$54.99

$

Usually ships in 2-12 days

0

3

Snapper 707659

BRACKET, Upstop

$10.99

$

In Stock, only 1 left!

0

6

Snapper 707660

KNOB, Handle

$13.99

$

Usually ships in 2-12 days

0

7

Snapper 707661

SCREW, #10-16 x 5/8

$14.99

$

Usually ships in 2-12 days

0

8

Snapper 707662

CONTROL BAR

$51.99

$

Usually ships in 2-12 days

0

10

Snapper 707699

CABLE, Drive Control

$103.99

$

Usually ships in 2-12 days

0

11

Snapper 707772

HAIRPIN

$9.99

$

Usually ships in 2-12 days

0

12

Snapper 707665

KNOB, Handle

$6.49

$

In Stock, only 2 left!

0

13

Snapper 707666

PLUG, Handle

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 707702

BAIL, Drive Control

$

$

Currently unavailable

18

Snapper 707668

KNOB

$5.49

$

Usually ships in 2-12 days

0

19

Snapper 707669

GUIDE, Rope

$7.99

$

Usually ships in 2-12 days

0

26

Snapper 707674

SCREW

$10.99

$

In Stock, only 1 left!

0

58

Snapper 707691

HANDLE, Lower

$62.99

$

Usually ships in 2-12 days

0

59

Snapper 707692

BOLT
(Superseded to 709234)

$7.49

$

In Stock, only 4 left!

0

84

Snapper 707694

FASTENER, Push

$9.49

$

Usually ships in 2-12 days

0

96

Snapper 707696

CLIP, Cable

$6.49

$

Usually ships in 2-12 days

0

100

Snapper 707698

KIT, Hardware, Handle

Note: (Includes 2 each Ref. Nos. 12 & 59)

$7.99

$

Usually ships in 2-12 days

0
