1696664-00 (961440010-00) - Snapper 22" Walk-Behind Mower, 625 Series Briggs & Stratton Mower Deck Group Parts Diagram

22" Walk-Behind Mower, 625 Series Briggs & Stratton

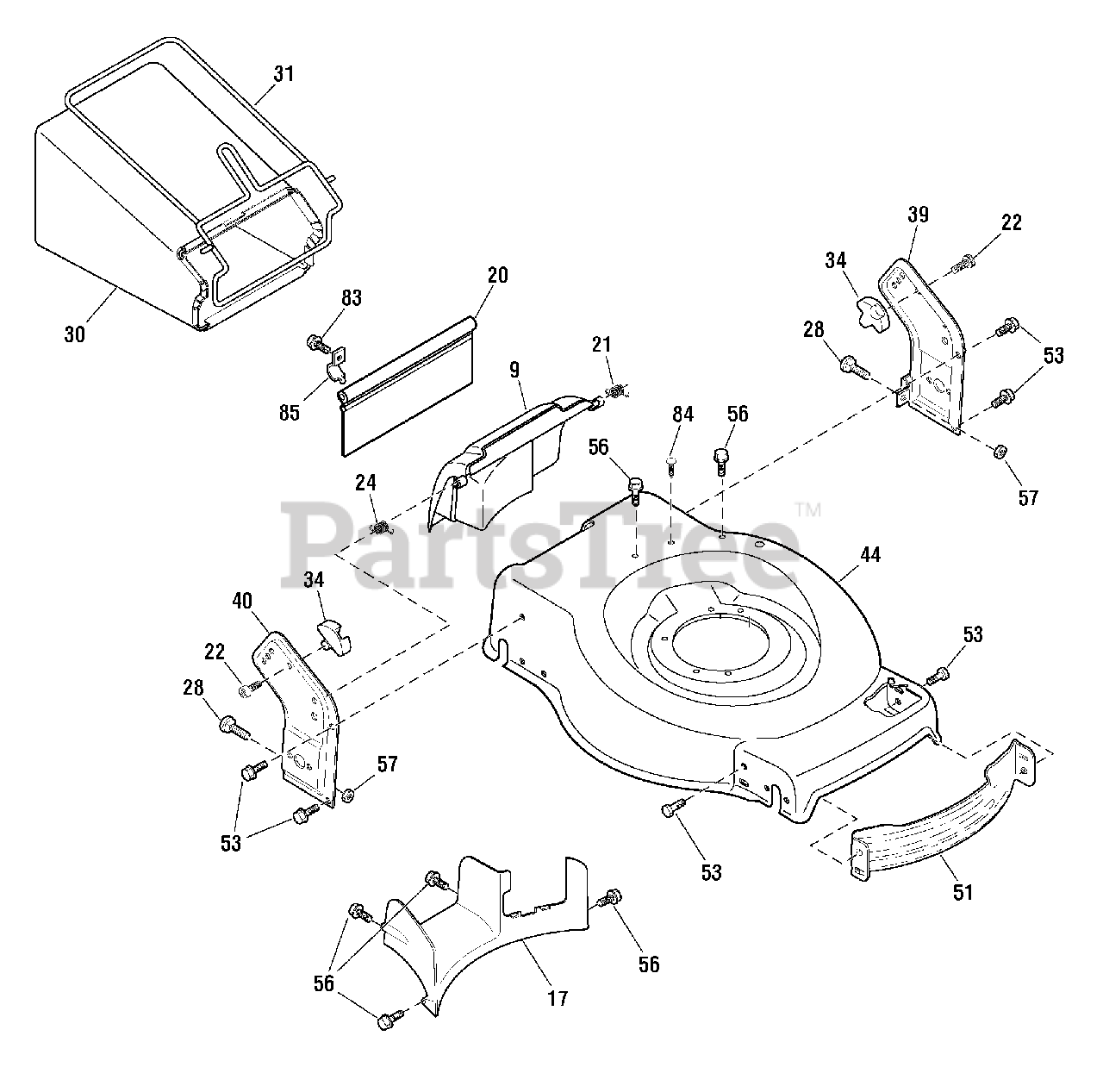

Mower Deck Group Parts Diagram

  • Title

9

Snapper 707663

REAR DOOR ASSEMBLY

$69.99

$

Usually ships in 2-12 days

0

17

Snapper 707667

BAFFLE, Rear

$

$

Not available

20

Snapper 707670

SKIRT, Rear

$32.99

$

Usually ships in 2-12 days

0

21

Snapper 707671

SPRING, Rear Door, Left

$4.99

$

Usually ships in 2-12 days

0

22

Snapper 707672

SCREW, Panhead Torx, #20
(Superseded to 709080)

$6.49

$

Usually ships in 2-12 days

0

24

Snapper 707673

SPRING, Rear Door, Right
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

28

Snapper 707675

BOLT, Carriage, 5/16-18 x 5/8

$5.49

$

Usually ships in 2-12 days

0

30

Snapper 707676

GRASS BAG

$154.99

$

Usually ships in 2-12 days

0

31

Snapper 707677

FRAME, Grass Bag

$184.99

$

Usually ships in 2-12 days

0

34

Snapper 707678

BRACKET, Grass Bag

$4.99

$

Usually ships in 2-12 days

0

39

Snapper 707679

BRACKET, Handle, Left

$46.99

$

Usually ships in 2-12 days

0

40

Snapper 707767

BRACKET, Handle, Right

$59.99

$

Usually ships in 2-12 days

0

44

Snapper 707682

KIT, Mower Deck, 22"

$279.99

$

Usually ships in 2-12 days

0

51

Snapper 707687

BAFFLE, Front

$42.99

$

Usually ships in 2-12 days

0

53

Snapper 705320

SCREW, 5/16-18

$10.99

$

Usually ships in 2-12 days

0

56

Snapper 707689

SCREW, Hex Washer head, #13 x 3/4
(Superseded to 709159)

$8.49

$

Usually ships in 2-12 days

0

57

Snapper 707690

NUT, Hex

$11.99

$

Usually ships in 2-12 days

0

83

Snapper 707693

SCREW, Hex Washer Head
(Superseded to 709835)

$6.49

$

Usually ships in 2-12 days

0

84

Snapper 707694

FASTENER, Push

$9.49

$

Usually ships in 2-12 days

0

85

Snapper 707695

BRACKET, Mounting, Rear Skirt

$9.99

$

In Stock, only 1 left!

0
