1696664-00 (961440010-00) - Snapper 22" Walk-Behind Mower, 625 Series Briggs & Stratton Transmission & Drive Group Parts Diagram

22" Walk-Behind Mower, 625 Series Briggs & Stratton

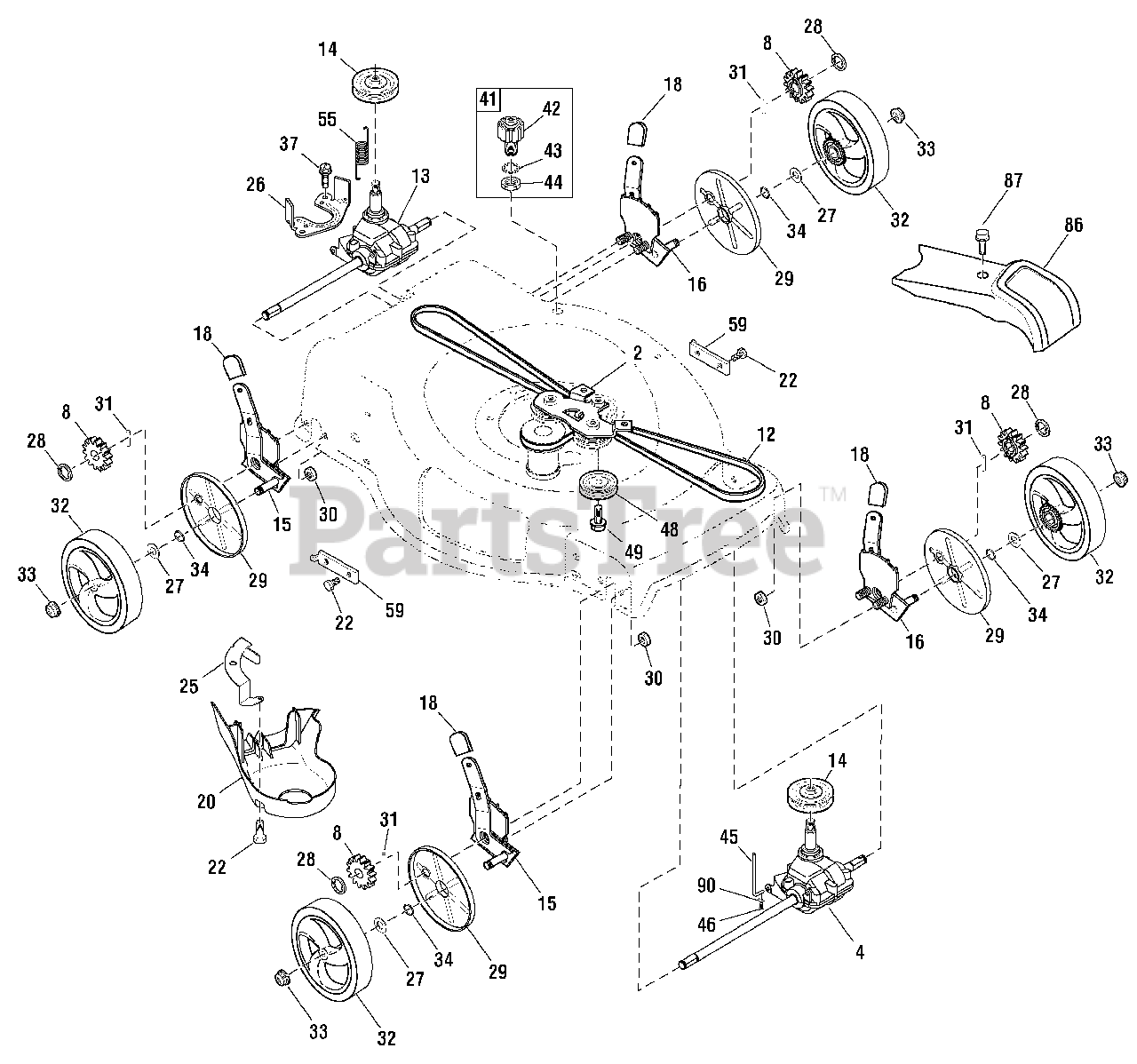

Transmission & Drive Group Parts Diagram

  • Title

2

Snapper 707700

BRACKET, Mounting, Idler Pulle

$25.99

$

Usually ships in 2-12 days

0

4

Snapper 707701

GEARCASE ASSEMBLY, Front

$128.99

$

Usually ships in 2-12 days

0

8

Snapper 707703

PINION

$15.99

$

In Stock, only 1 left!

0

12

Snapper 706981

BELT, Drive

$54.99

$

In Stock, Qty 7

0

13

Snapper 707704

GEARCASE ASSEMBLY, Rear

$307.99

$

Usually ships in 2-12 days

0

14

Snapper 707705

PULLEY, Drive
(Superseded to 709833)

$16.99

$

Usually ships in 2-12 days

0

15

Snapper 707706

BRACKET, Height Of Cut, Right

$

$

Not available

16

Snapper 707707

BRACKET, Height Of Cut, Left
(Superseded to 709812)

$31.99

$

In Stock, only 1 left!

0

18

Snapper 707708

KNOB, Wheel Adjust

$15.99

$

Usually ships in 2-12 days

0

20

Snapper 707709

COVER, Debris

$66.99

$

Usually ships in 2-12 days

0

22

Snapper 705320

SCREW, 5/16-18

$10.99

$

Usually ships in 2-12 days

0

25

Snapper 707711

BRACKET, Mounting, Debris Shield

$14.99

$

Usually ships in 2-12 days

0

26

Snapper 707712

BELT GUIDE, Gearcase, Rear

$18.99

$

Usually ships in 2-12 days

0

27

Snapper 707713

WASHER, Flat
(Superseded to 709410)

$7.49

$

Usually ships in 2-12 days

0

28

Snapper 707714

E-RING, 7/16
(Superseded to 709760)

$6.49

$

Usually ships in 2-12 days

0

29

Snapper 707715

DUST COVER, Wheel

$14.99

$

In Stock, only 1 left!

0

30

Snapper 707716

NUT, Hex

$10.99

$

Usually ships in 2-12 days

0

31

Snapper 707717

PAWL, Drive

$10.99

$

In Stock, only 1 left!

0

32

Snapper 706982

WHEEL ASSEMBLY

$49.99

$

Usually ships in 2-12 days

0

33

Snapper 707718

NUT, Flangelock, 3/8-16

$5.49

$

In Stock, only 1 left!

0

34

Snapper 707719

O-RING

$12.99

$

In Stock, only 1 left!

0

37

Snapper 707720

SCREW, Hi-Lo Thread, #12 x 5/8

$6.49

$

Usually ships in 2-12 days

0

41

Snapper 707721

KIT, Washout Port

$46.99

$

Usually ships in 2-12 days

0

42

Snapper 707722

WASHOUT PORT
(Superseded to 709804)

$25.99

$

Usually ships in 2-12 days

0

43

Snapper 707723

WASHER, Lock, Internal Tooth

$5.49

$

Usually ships in 2-12 days

0

44

Snapper 707724

NUT, Lock, With O-Ring

$10.99

$

Usually ships in 2-12 days

0

45

Snapper 707725

BELT GUIDE, Gearcase, Front

$10.99

$

Usually ships in 2-12 days

0

46

Snapper 707726

SCREW

$4.99

$

Usually ships in 2-12 days

0

48

Snapper 707727

PULLEY ASSEMBLY, Idler
(Superseded to 709813)

$37.99

$

In Stock, only 2 left!

0

49

Snapper 707728

SCREW, Mounting, Idler Pulley

$6.99

$

In Stock, only 1 left!

0

55

Snapper 707729

SPRING, Tension

$9.99

$

Usually ships in 2-12 days

0

59

Snapper 707730

BRACKET, Support

$6.49

$

Usually ships in 2-12 days

0

86

Snapper 707731

COVER, Drive

$

$

Currently unavailable

87

Snapper 707732

SCREW

$12.99

$

Usually ships in 2-12 days

0

90

Snapper 707733

WASHER, Flat, 5/16

$3.99

$

Usually ships in 2-12 days

0
