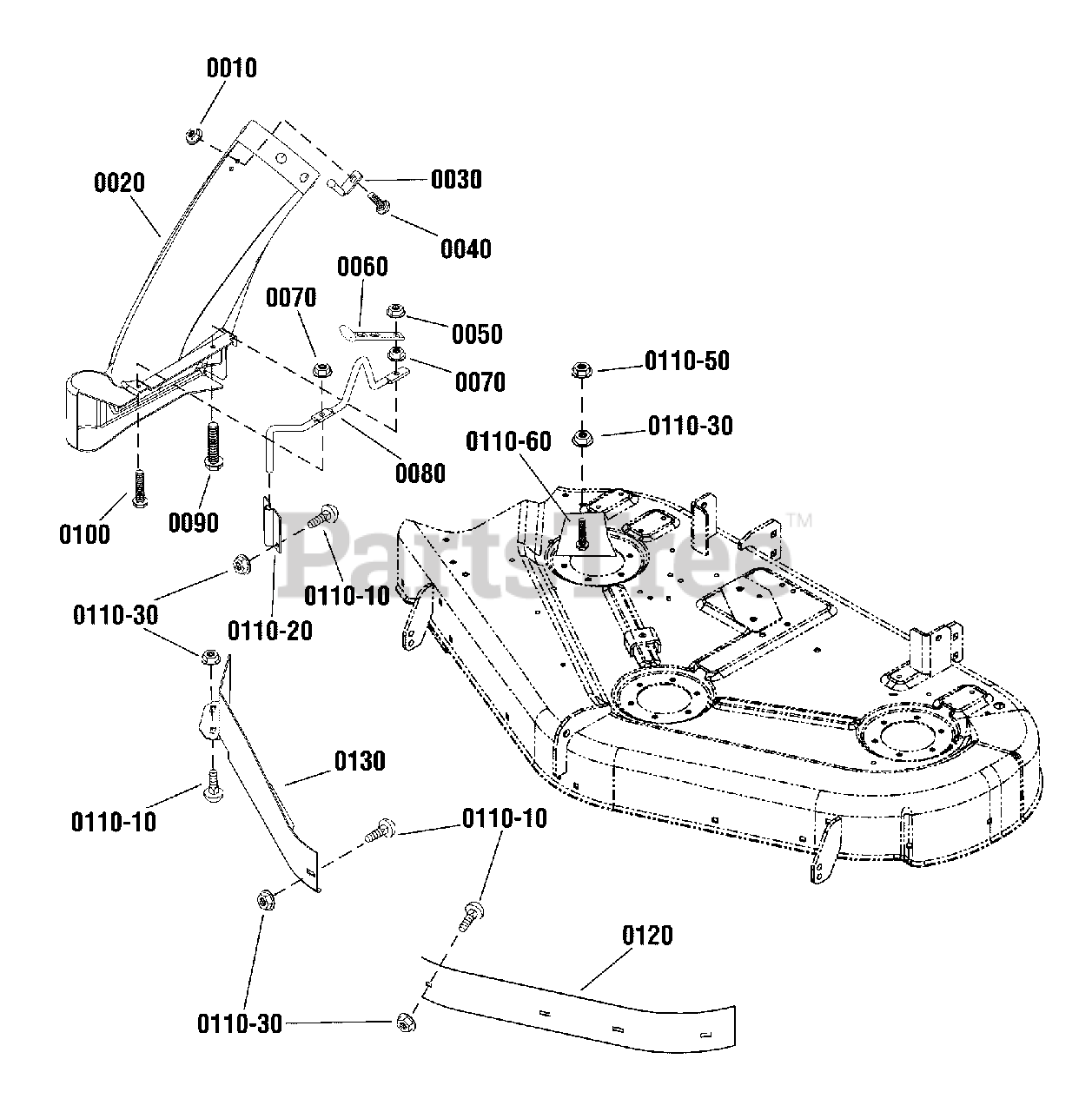

1696670 - Simplicity 44" Bagging Boot & Baffle Bagging Boot Parts Diagram

44" Bagging Boot & Baffle

Bagging Boot Parts Diagram

  • Title

0010

Simplicity 703230

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 2 left!

0

0020

Simplicity 1759966YP

BOOT, Bagging

$330.99

$

Usually ships in 2-12 days

0

0030

Simplicity 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0040

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

0050

Simplicity 704067

NUT, Flange Whiz-Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

0070

Simplicity 703330

NUT, Hex Flange, 5/16-18

$4.99

$

In Stock, Qty 9

0

0080

Simplicity 1733946SM

ROD, Boot Mount

$44.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1930595SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 1 1/4

$3.99

$

In Stock, Qty 8

0

0100

Simplicity 1960371SM

SCREW, Hex Head, 5/16-18 x 3/4

$5.49

$

Usually ships in 2-12 days

0

--

Simplicity 1760042

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Not available

0110-10

Simplicity 703447

BOLT, Carriage, 5/16-18 x 5/8

$4.49

$

In Stock, Qty 20+

0

0110-20

Simplicity 1726578ASM

PLATE, Chute Rod

$32.99

$

Usually ships in 2-12 days

0

0110-30

Simplicity 703330

NUT, Hex Flange, 5/16-18

$4.99

$

In Stock, Qty 9

0

0110-50

Simplicity 704067

NUT, Flange Whiz-Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0110-60

Simplicity 1933689SM

SCREW, Hex Flange, 5/16-18 x 1 1/2

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1716879ASM

BAFFLE, Blowout L.H. 44" Mower Deck

$115.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1731990AYP

BAFFLE, Blowout R.H. 44" Mower Deck
(Superseded to 1731990ASM)

$122.99

$

In Stock, only 1 left!

0
