1696673-01 - Snapper Twin Grass Catcher & Front Weight Twin Catcher Assembly (1696673) Parts Diagram

Twin Grass Catcher & Front Weight

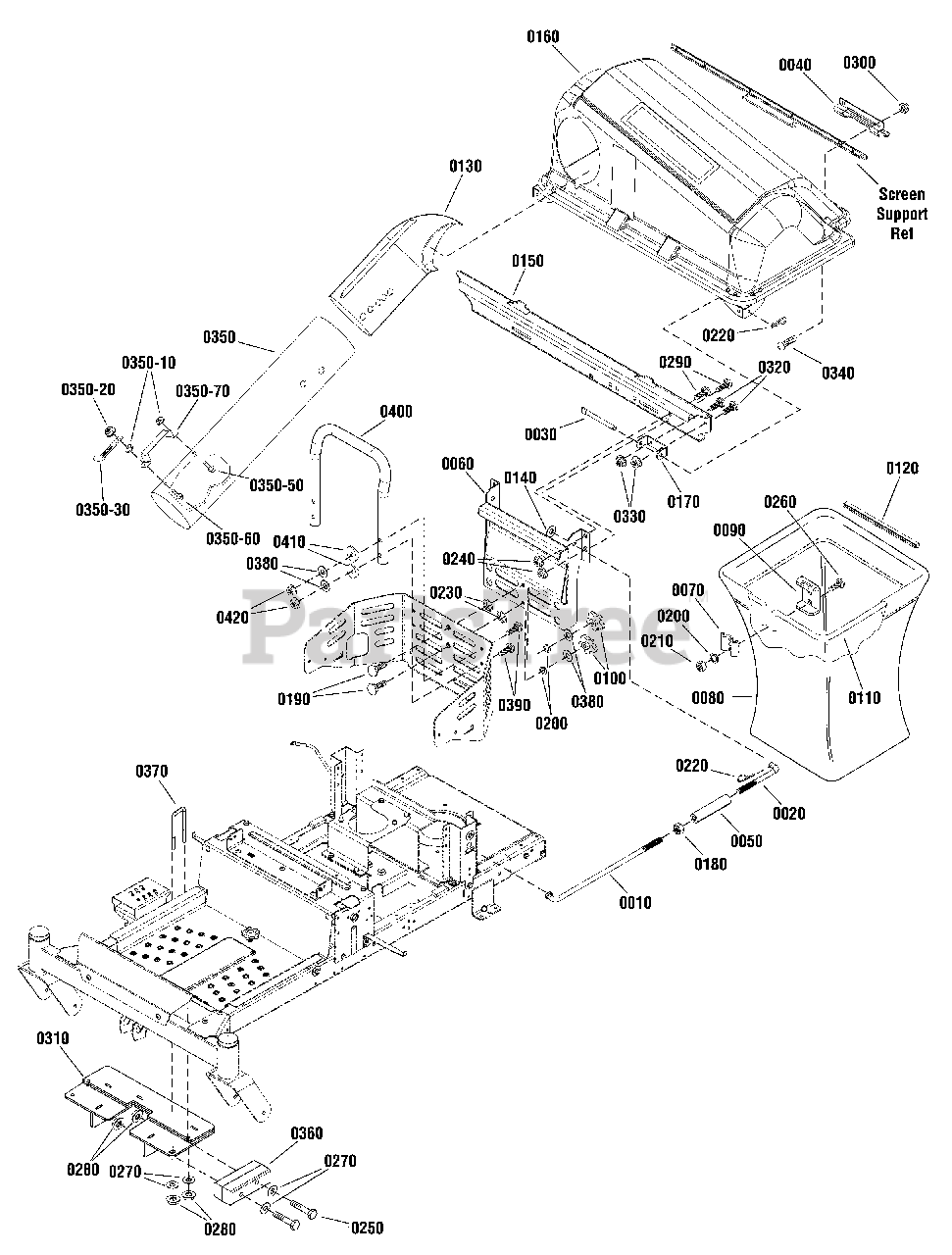

Twin Catcher Assembly (1696673) Parts Diagram

  • Title

0010

Snapper 1759374YP

ROD, Bag Support

$114.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759375YP

ROD, Bag Support Upper

$103.99

$

Usually ships in 2-12 days

0

0030

Snapper 054407ZMA

PIN, Hinge

$14.99

$

In Stock, only 2 left!

0

0040

Snapper 054537MA

HANDLE

$18.99

$

Usually ships in 2-12 days

0

0050

Snapper 708163

NUT, Coupling

$39.99

$

Usually ships in 2-12 days

0

0060

Snapper 1759342YP

MOUNT, Grass Catcher

$

$

Not available

0070

Snapper 1672023ASM

CLAMP

$11.99

$

Usually ships in 2-12 days

0

0080

Snapper 1703764SM

BAG, Grass, 15-1/2 x 16 x 22-1/2

$96.99

$

Usually ships in 2-12 days

0

0090

Snapper 1703807ASM

HANGER, Grass Bag Hoop

$21.99

$

Usually ships in 2-12 days

0

0100

Snapper 1733098SM

KNOB, Internal, 5/16

$9.99

$

In Stock, only 2 left!

0

0110

Snapper 1733491SM

HOOP, Twin

$146.99

$

In Stock, only 2 left!

0

0120

Snapper 1733709SM

EDGING, 12" Lg

$16.99

$

Usually ships in 2-12 days

0

0130

Snapper 1733885SM

ELBOW, Upper Tube

$103.99

$

Usually ships in 2-12 days

0

0140

Snapper 703337

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

0150

Snapper 1759713YP

CROSS SUPPORT, Twin

$159.99

$

Usually ships in 2-12 days

0

0160

Snapper 1736656YP

COVER & SCREEN ASSEMBLY, Twin

$488.99

$

Usually ships in 2-12 days

0

0170

Snapper 1736886AYP

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

In Stock, only 1 left!

0

0180

Snapper 703340

NUT, Hex, 1/2-13, GR5

$7.99

$

Usually ships in 2-12 days

0

0190

Snapper 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, only 1 left!

0

0200

Snapper 703116

LOCKWASHER, Split, 5/16

$3.49

$

In Stock, Qty 20+

0

0210

Snapper 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 703796

PIN, Hair

$5.49

$

In Stock, only 2 left!

0

0230

Snapper 703297

RETAINER, Pushnut, 5/16

$3.99

$

In Stock, Qty 20+

0

0240

Snapper 703793

NUT, Flange, 3/8-16

$4.49

$

In Stock, Qty 10

0

0250

Snapper 703875

CAPSCREW, Hex Head 3/8-16 X 4, GR 5

$4.99

$

Usually ships in 2-12 days

0

0260

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 1922755SM

WASHER, Flat, 13/32
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0280

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0290

Snapper 703815

BOLT, Carriage, 3/8-16 X 1, GR 5

$4.49

$

In Stock, Qty 5

0

0300

Snapper MT15X146MA

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0310

Snapper 1759423YP

WEIGHT ASSEMBLY

$490.99

$

Usually ships in 2-12 days

0

0320

Snapper 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

0330

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, only 1 left!

0

0340

Snapper 1960404SM

SCREW, Truss Head, #10-24 X 3/4

$3.99

$

In Stock, only 4 left!

0

0350

Snapper 7104383SM

TUBE, Clear

$

$

Not available

0350-10

Snapper 1928372SM

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

0350-20

Snapper 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0350-30

Snapper 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

0350-50

Snapper 004X24MA

SCREW, Machine, 1/4-20 X 1/2

$4.49

$

Usually ships in 2-12 days

0

0350-60

Snapper 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0350-70

Snapper 054416ZMA

HANDLE, Tube

$20.99

$

In Stock, only 4 left!

0

0360

Snapper 1759653YP

WEIGHT, Front

$176.99

$

Usually ships in 2-12 days

0

0370

Snapper 1759656YP

BOLT, U, 3/8-16 X 4 1/4

$24.99

$

Usually ships in 2-12 days

0

0380

Snapper 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 16

0

0390

Snapper 704035

BOLT, Carriage, 5/16-18 X 2

$4.49

$

In Stock, only 2 left!

0

0400

Snapper 1759315AYP

TUBE, Support

$68.99

$

Usually ships in 2-12 days

0

0410

Snapper 1759361YP

SADDLE, Tube

$5.99

$

Usually ships in 2-12 days

0

0420

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 12

0
