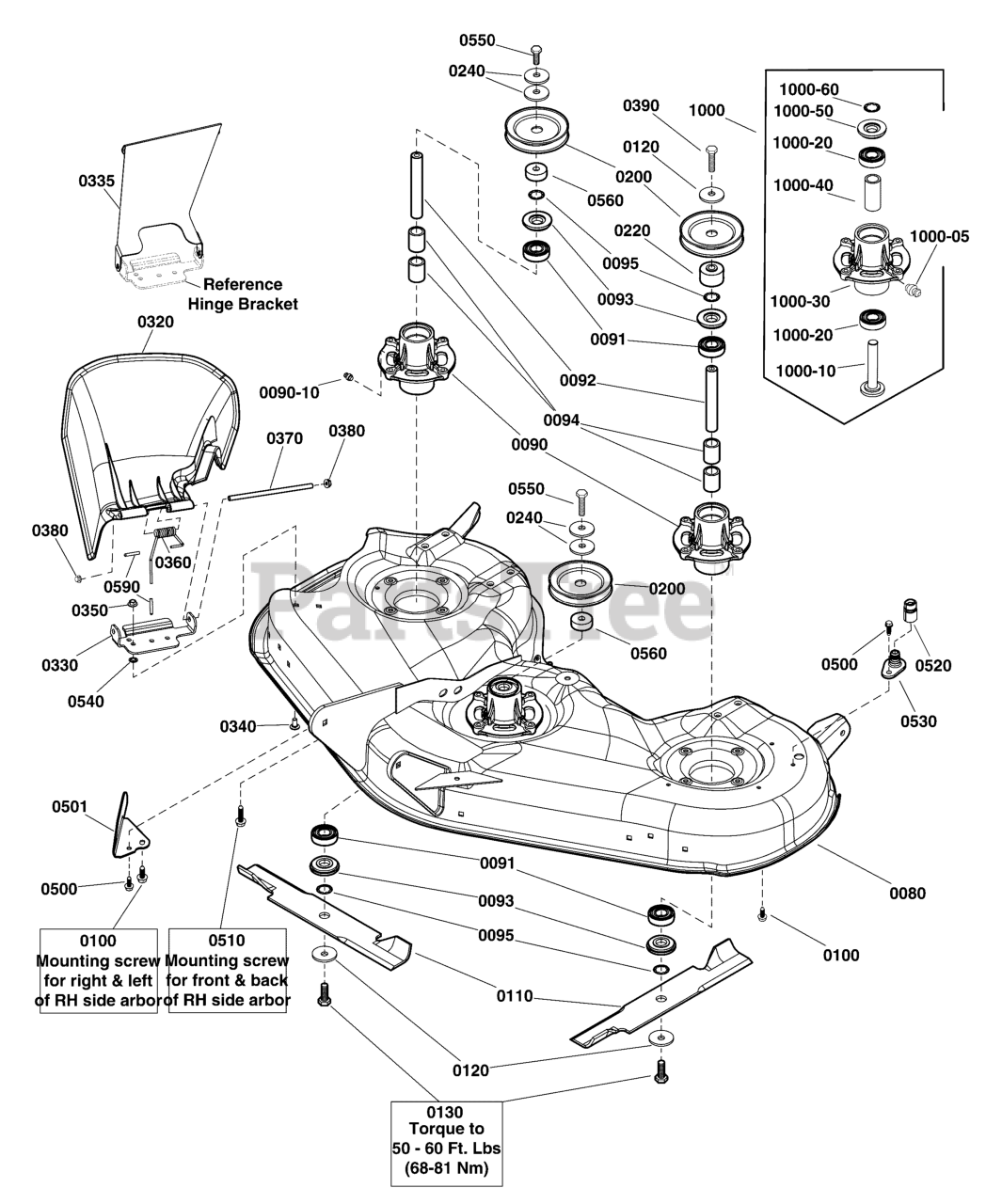

1696684-00 - Murray 46" Mower Deck (2016) 46" Parts Diagram

46" Mower Deck

46" Parts Diagram

  • Title

0080

Murray 1687838YP

KIT, Mower Deck WDecals
(Superseded to 1687625YP)

$511.99

$

Usually ships in 2-12 days

0

0090

Murray 1735573YP

HOUSING, w/Lube Fittting
(Superseded to 84003654)

$46.99

$

In Stock, Qty 19

0

0090-10

Murray 1704314SM

FITTING, Grease
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0091

Murray 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0092

Murray 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$29.99

$

Usually ships in 2-12 days

0

0093

Murray 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$7.49

$

In Stock, Qty 20+

0

0094

Murray 1735328YP

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

0095

Murray 1960766YP

RING, Self Lock"

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1960373SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1"
(Superseded to 704146)

$3.99

$

In Stock, Qty 11

0

0110

Murray 1739889AYP

BLADE, 46" Mower

$27.99

$

In Stock, Qty 16

0

0120

Murray 1656916SM

WASHER, Spring, 0.475ID x 1-3/4 OD

$7.99

$

In Stock, Qty 20+

0

0130

Murray 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, only 3 left!

0

0200

Murray 1735686YP

PULLEY, 4.6, Split

$20.99

$

In Stock, only 4 left!

0

0220

Murray 1736445YP

SPACER, Pulley"

$14.99

$

Usually ships in 2-12 days

0

0240

Murray 1960769YP

WASHER, Belleville"

$5.49

$

In Stock, only 1 left!

0

0320

Murray 1754745YP

DEFLECTOR, 46/52"
(Superseded to 1687750YP)

$39.99

$

In Stock, Qty 20+

0

0330

Murray 1758935AYP

BRACKET, Support

$59.99

$

In Stock, only 1 left!

0

0335

Murray 1758935AYP

BRACKET, Support

$59.99

$

In Stock, only 1 left!

0

0340

Murray 703125

BOLT, Carriage, 5/16-18 x 5/8, GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 18

0

0350

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.99

$

In Stock, Qty 20+

0

0360

Murray 1759042YP

SPRING, Torsion

$6.99

$

Usually ships in 2-12 days

0

0370

Murray 1759064YP

ROD, Deflector

$8.99

$

In Stock, only 1 left!

0

0380

Murray 7012542YP

NUT, Push, 5/16"
(Superseded to 704028)

$5.49

$

In Stock, Qty 7

0

0390

Murray 706301

CAPSCREW, Hex Head, 7/16-14 x 2-1/2, GR5
(Superseded to 705877)

$7.49

$

In Stock, only 2 left!

0

0500

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0501

Murray 1737279BMYP

BAFFLE, Pinchoff

$17.99

$

In Stock, only 1 left!

0

0510

Murray 1930600SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2"

$5.49

$

In Stock, Qty 6

0

0520

Murray 1756246YP

CONNECTOR, Washout Port

$16.99

$

In Stock, only 1 left!

0

0530

Murray 1756247YP

ADAPTER, Washout Port"

$6.99

$

In Stock, Qty 7

0

0540

Murray 703297

RETAINER, 5/16, GR5

$3.99

$

In Stock, Qty 13

0

0550

Murray 703171

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, GR5

$3.99

$

In Stock, Qty 11

0

0560

Murray 1735579YP

SPACER, Lower Drive

$7.49

$

In Stock, only 3 left!

0

0590

Murray 5023489SM

PROTECTOR, Cap

$3.99

$

In Stock, only 1 left!

0
