1696690 - Simplicity Headlight Kit Headlight Kit Parts Diagram

Headlight Kit

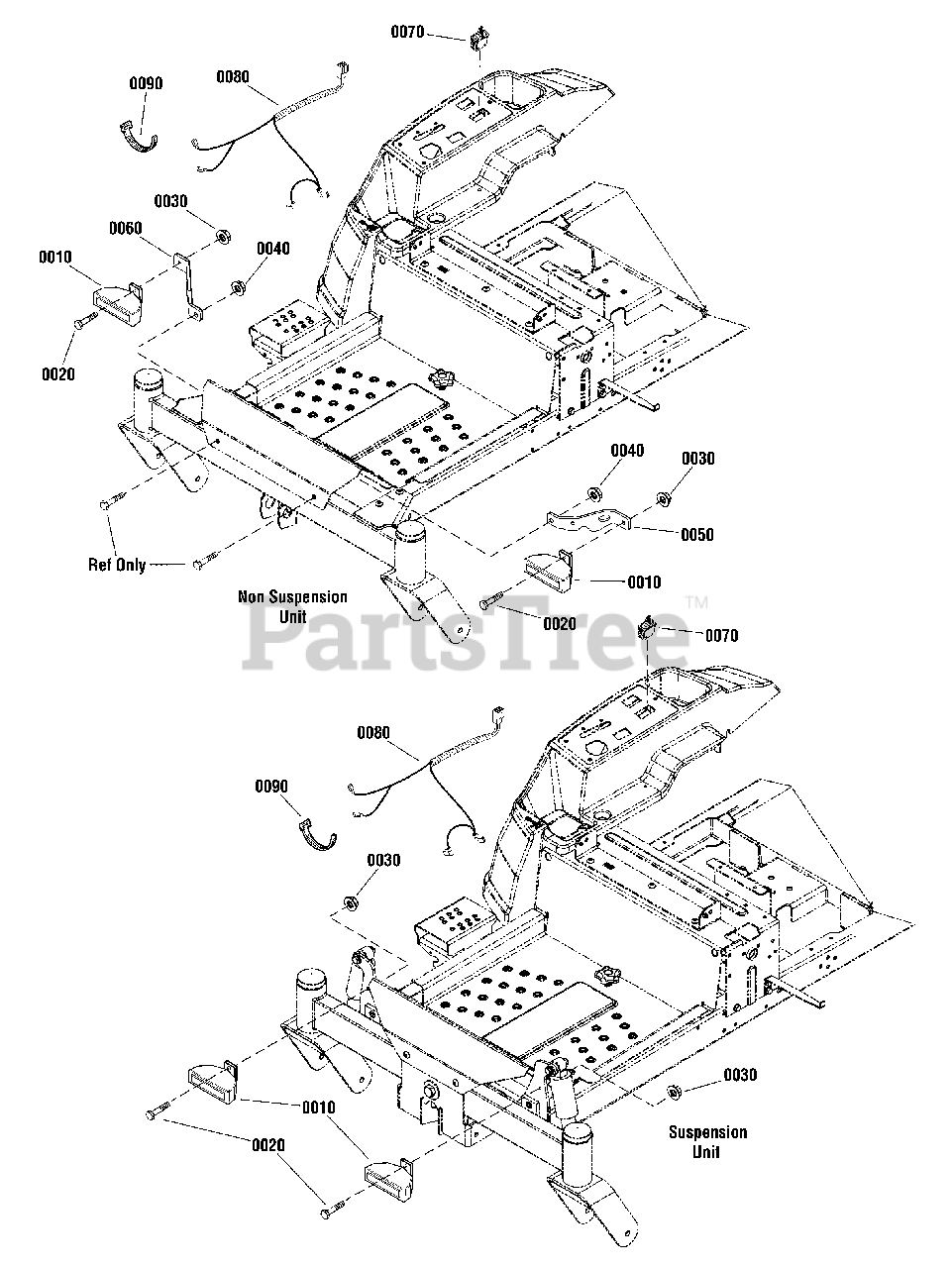

Headlight Kit Parts Diagram

  • Title
0010

$58.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1960484SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 771987)

$3.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703463

NUT, Nylock Flange, 1/4-20

$4.49

$

In Stock, Qty 5

0

0040

Simplicity 703333

NUT, Hex Flange, 3/8-16

Note: (Used on non-suspension units)

$4.99

$

In Stock, Qty 20+

0

0050

Simplicity 1759982YP

MOUNT, Headlight, LH

Note: (Used on non-suspension units)

$33.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1759983YP

MOUNT, Headlight, RH

Note: (Used on non-suspension units)

$39.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1716951SM

SWITCH, Headlight

$21.99

$

In Stock, only 3 left!

0

0080

Simplicity 1726796

HARNESS, Wire
(Superseded to 1726796SM)

$

$

Not available

0090

Simplicity 703586

TIE, Self Locking

$4.99

$

Usually ships in 2-12 days

0

--

Simplicity 1696690

HEADLIGHT KIT

$122.99

$

Usually ships in 2-12 days

0
