1696699-00 - Simplicity 61" Mower Deck 61" Mower Deck - Drive Group Parts Diagram

61" Mower Deck

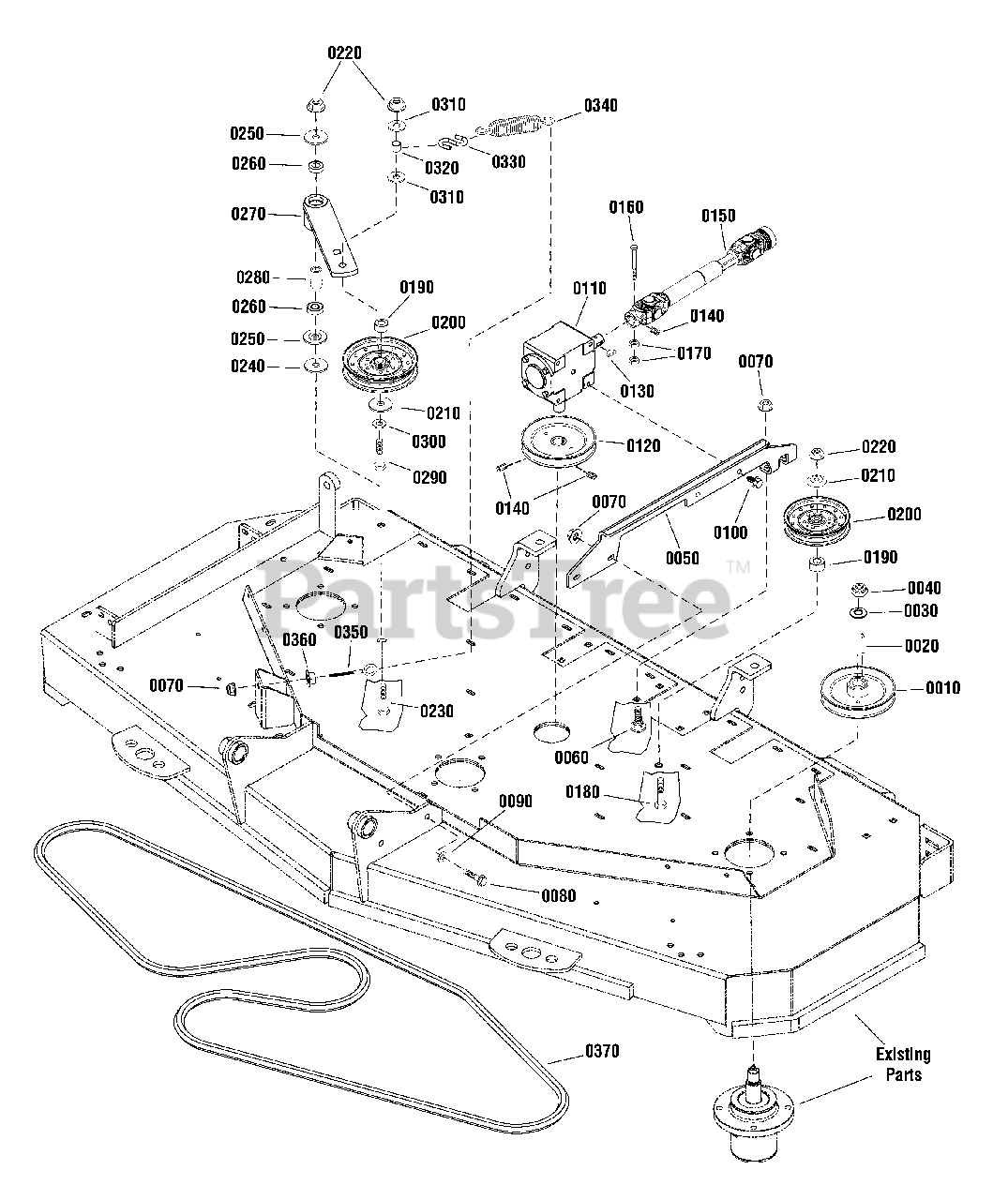

61" Mower Deck - Drive Group Parts Diagram

  • Title

0010

Simplicity 5100700SM

PULLEY, Split, 6.93

$74.99

$

In Stock, only 3 left!

0

0020

Simplicity 770222

KEY, 1/4 x 1 1/4

$3.49

$

Usually ships in 2-12 days

0

0030

Simplicity 770223

WASHER, Belleville, 3/4

$4.49

$

In Stock, only 4 left!

0

0040

Simplicity 770224

NUT, Hex, 3/4-16

$4.49

$

Usually ships in 2-12 days

0

0050

Simplicity 5410339AYP

PLATE, Stiffener

$102.99

$

In Stock, only 1 left!

0

0060

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, Qty 5

0

0070

Simplicity 703158

NUT, Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 703871

CAPSCREW, Hex Head, 3/8-16 X 1 1/4, GR 5

$4.99

$

In Stock, only 2 left!

0

0090

Simplicity 703590

WASHER, Flat

$3.99

$

In Stock, Qty 20+

0

0100

Simplicity 1960695SM

SCREW, Hex Washer Head, 3/8-16 X 1 1/8

$14.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1725298SM

GEARBOX, Drive Assembly

$744.99

$

Usually ships in 2-12 days

0

0120

Simplicity 5103802YP

PULLEY, 6.93

$74.99

$

Usually ships in 2-12 days

0

0130

Simplicity 2822138SM

KEY, Hi Pro, 1/4 x 7/8

$9.99

$

In Stock, only 2 left!

0

0140

Simplicity 5025531YP

SCREW, Set, 5/16-18 X 3/8
(Superseded to 1677029SM)

$3.49

$

In Stock, only 1 left!

0

0150

Simplicity 1725217SM

SHAFT ASSEMBLY, Drive

$547.99

$

Usually ships in 2-12 days

0

0160

Simplicity 704291

CAPSCREW, Hex Head, 1/4-20 X 2 1/4, GR 5

$5.49

$

Usually ships in 2-12 days

0

0170

Simplicity 703954

NUT, Centerlock, 1/4-20, GR 5
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0180

Simplicity 703856

CAPSCREW, Hex Head,1/2-13 X 2 1/4, GR5

$12.99

$

Usually ships in 2-12 days

0

0190

Simplicity 5101162YP

SPACER

$7.49

$

In Stock, only 2 left!

0

0200

Simplicity 5103800YP

PULLEY, Idler, 6 3/4

$54.99

$

In Stock, Qty 6

0

0210

Simplicity 5101103SM

SHIELD, Pulley Bearing

$10.99

$

In Stock, only 2 left!

0

0220

Simplicity 770225

NUT, Hex Nylock, 1/2-13

$3.49

$

In Stock, only 2 left!

0

0230

Simplicity 770226

BOLT, 1/2-13 X 3 1/2, GR 5

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1718640SM

WASHER

$8.49

$

Usually ships in 2-12 days

0

0250

Simplicity 5103262YP

SPACER, Idler Arm, 1/2

$7.99

$

In Stock, only 2 left!

0

0260

Simplicity 7078243YP

BEARING, Ball

$10.99

$

In Stock, only 2 left!

0

0270

Simplicity 5410358CJYP

WELD, Idler Arm

$121.99

$

Usually ships in 2-12 days

0

0280

Simplicity 5103812YP

SPACER

$7.99

$

In Stock, only 1 left!

0

0290

Simplicity 770227

BOLT, 1/2-13 X 3 1/4, GR 5

$5.49

$

Usually ships in 2-12 days

0

0300

Simplicity 704123

WASHER, Flat

$4.49

$

In Stock, Qty 17

0

0310

Simplicity 704011

WASHER, Flat

$4.49

$

In Stock, only 1 left!

0

0320

Simplicity 5104012YP

SPACER

$8.49

$

Usually ships in 2-12 days

0

0330

Simplicity 5104011YP

S-HOOK, 5/16

$9.49

$

Usually ships in 2-12 days

0

0340

Simplicity 5100633YP

SPRING, Extension

$34.99

$

Usually ships in 2-12 days

0

0350

Simplicity 5025429YP

BOLT, Eye, 3/8-16 x 4

$

$

Not available

0360

Simplicity 703793

NUT, Nylock Flange, 3/8-16

$4.49

$

In Stock, Qty 9

0

0370

Simplicity 5103806YP

BELT, Aramid

$112.99

$

Usually ships in 2-12 days

0
