1696717-02 (22/950) - Brute 22" Snow Thrower, 9.5 Gross TP (2018) Auger Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

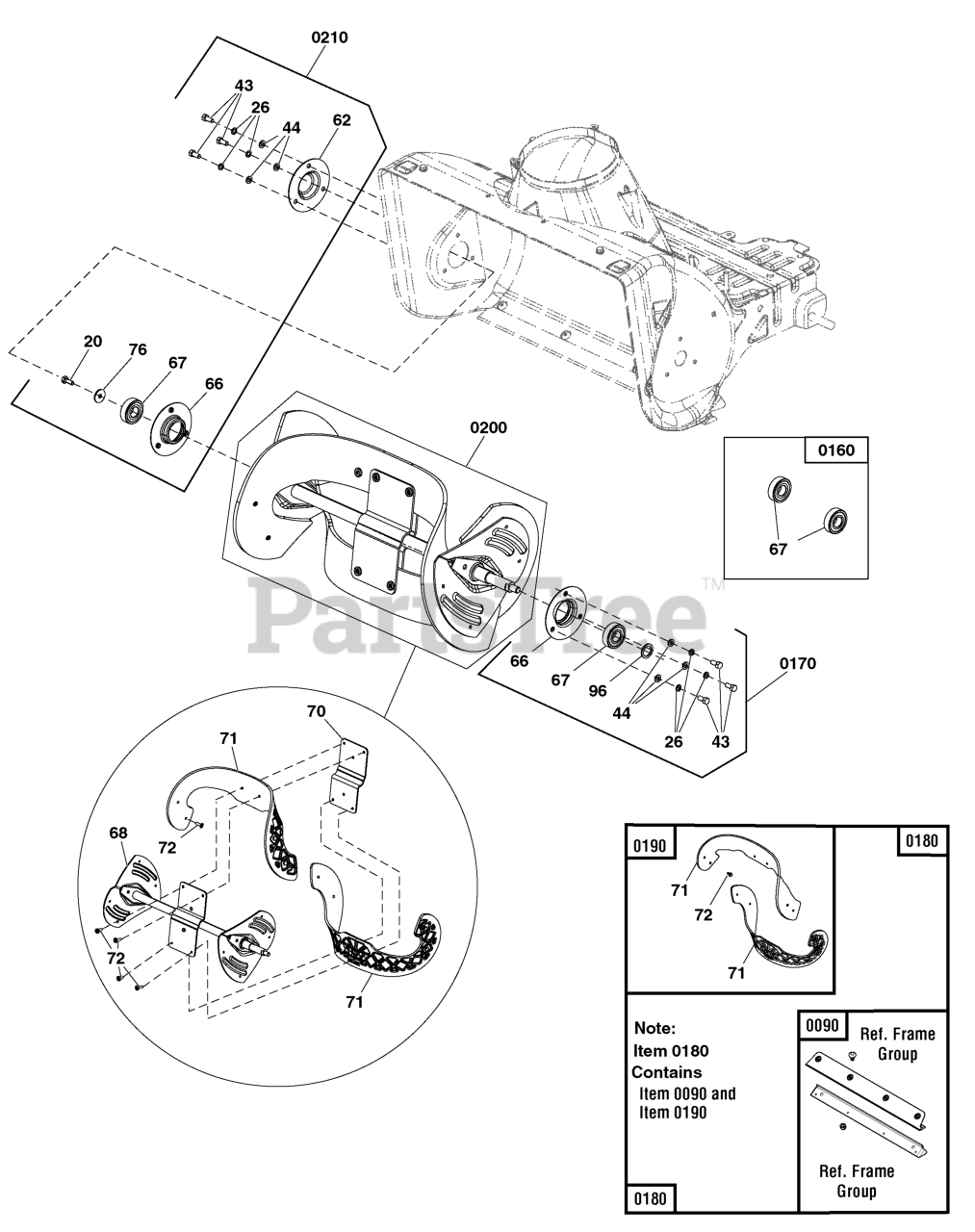

Auger Group Parts Diagram

  • Title

0090

Briggs & Stratton 770004

KIT-SCRAPER BAR

Note: (Incl. Ref. Nos. 38, 63, 64, 65)

$86.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 1752935

NUT, 1/4-20, Nylon Hex, CZ
(Superseded to 1752935YP)

$3.49

$

In Stock, Qty 9

0

63

Briggs & Stratton 5025299X5

SCREW, 1/4-20 x 5/8, Allen Head
(Superseded to 5025299X5YP)

$4.99

$

In Stock, only 1 left!

0

64

BAR, Scraper, Robolon

$

$

Not available

65

SUPPORT, Scraper Blade

$

$

Not available

0160

Briggs & Stratton 709877

KIT, AUGER BEARING

Note: (Incl. Ref. No. 67)

$14.99

$

In Stock, only 1 left!

0

67

BEARING

$

$

Not available

0170

Briggs & Stratton 709878

KIT, AUGER BEARING, LEFT

Note: (Incl. Ref. Nos. 26, 43, 44, 66, 67, 96)

$30.99

$

Usually ships in 2-12 days

0

26

WASHER, M6, Split Lock, MC

$

$

Not available

43

Briggs & Stratton 7091835

SCREW, M6 1.0X12MM, Hex Head, CZ
(Superseded to 7091835YP)

$3.49

$

Usually ships in 2-12 days

0

44

WASHER, 6x12x.7, Flat

$

$

Not available

66

RETAINER, Bearing

$

$

Not available

67

BEARING

$

$

Not available

96

WASHER, Flat, 18x24x2

$

$

Not available

0180

Briggs & Stratton 709879

KIT, AUGER FLIGHT & SCRAPER BAR

Note: (Incl. Ref. Nos. 38, 63, 64, 65, 71, 72)

$213.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 1752935

NUT, 1/4-20, Nylon Hex, CZ
(Superseded to 1752935YP)

$3.49

$

In Stock, Qty 9

0

63

Briggs & Stratton 5025299X5

SCREW, 1/4-20 x 5/8, Allen Head
(Superseded to 5025299X5YP)

$4.99

$

In Stock, only 1 left!

0

64

BAR, Scraper, Robolon

$

$

Not available

65

SUPPORT, Scraper Blade

$

$

Not available

71

Briggs & Stratton 1739727

FLIGHT, Auger
(Superseded to 1687806)

$121.99

$

In Stock, Qty 20+

0

72

Briggs & Stratton 7091246

SCREW, 1/4-20 x 3/4" Pan Head Self-Tap (Torx) BZ
(Superseded to 7091246YP)

$3.99

$

In Stock, Qty 20+

0

0190

Briggs & Stratton 1687804

KIT, AUGER FLIGHT

Note: (Incl. Ref. Nos. 71, 72)

$107.99

$

In Stock, Qty 5

0

71

Briggs & Stratton 1739727

FLIGHT, Auger
(Superseded to 1687806)

$121.99

$

In Stock, Qty 20+

0

72

Briggs & Stratton 7091246

SCREW, 1/4-20 x 3/4" Pan Head Self-Tap (Torx) BZ
(Superseded to 7091246YP)

$3.99

$

In Stock, Qty 20+

0

0200

Briggs & Stratton 709881

KIT-AUGER ASSEMBLY

Note: (Incl. Ref. Nos. 68, 70, 71, 72)

$170.99

$

In Stock, Qty 6

0

68

SHAFT, Auger Assembly

$

$

Not available

70

PLATE, Center

$

$

Not available

71

Briggs & Stratton 1739727

FLIGHT, Auger
(Superseded to 1687806)

$121.99

$

In Stock, Qty 20+

0

72

Briggs & Stratton 7091246

SCREW, 1/4-20 x 3/4" Pan Head Self-Tap (Torx) BZ
(Superseded to 7091246YP)

$3.99

$

In Stock, Qty 20+

0

0210

Briggs & Stratton 709882

KIT, AUGER BEARING, RIGHT

Note: (Incl. Ref. Nos. 20, 26, 43, 44, 62, 66, 67, 76)

$43.99

$

Usually ships in 2-12 days

0

20

BOLT, M6x16, Hex Head

$

$

Not available

26

WASHER, M6, Split Lock, MC

$

$

Not available

43

Briggs & Stratton 7091835

SCREW, M6 1.0X12MM, Hex Head, CZ
(Superseded to 7091835YP)

$3.49

$

Usually ships in 2-12 days

0

44

WASHER, 6x12x.7, Flat

$

$

Not available

62

CAP, Bearing

$

$

Not available

66

RETAINER, Bearing

$

$

Not available

67

BEARING

$

$

Not available

76

WASHER, 6x23x3, Flat

$

$

Not available
