1696729-00 - Brute 22" Snow Thrower, 9.5 Gross TP (2017) Wheel & Body Covering Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

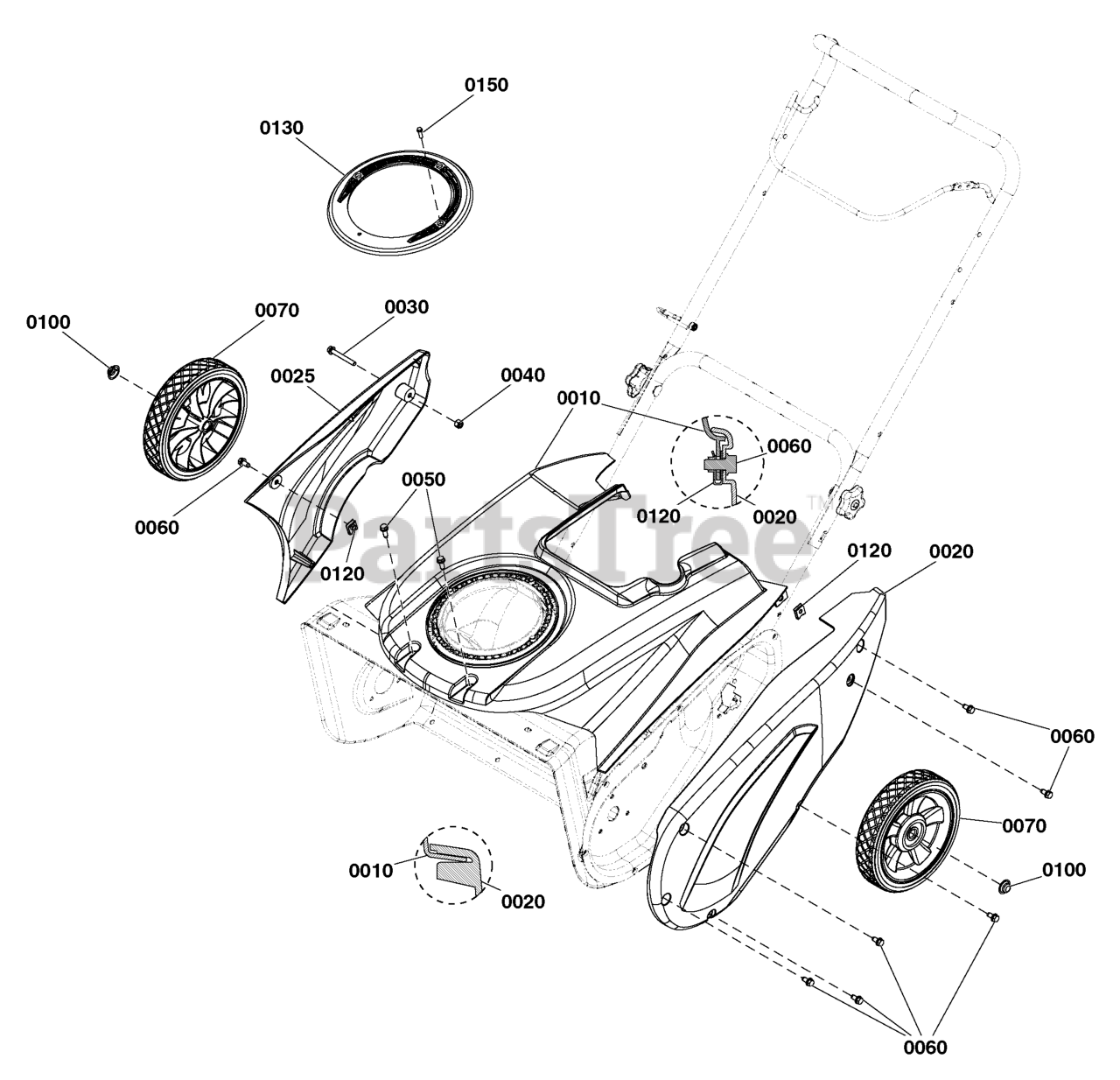

Wheel & Body Covering Group Parts Diagram

  • Title

0010

Murray 709892

KIT, Top Cover

Note: (Incl. Ref. Nos. 0040, 0050, 0060, 0120 & 0150)

$187.99

$

Usually ships in 2-12 days

0

0020

Murray 709897

KIT, Drive Case Cover

Note: (Incl. Ref. Nos. 0060 & 0120)

$63.99

$

In Stock, only 1 left!

0

0025

Murray 709917

KIT, Side Cover, Right

Note: (Incl. Ref. Nos. 0060 & 0120)

$96.99

$

Usually ships in 2-12 days

0

0030

Murray 1750777YP

CAPSCREW, Hex Washer Head, 1/4 x 20 x 2

$4.49

$

In Stock, only 2 left!

0

0040

Murray 703232

NUT, Nylock, 1/4

Note: (Included with Ref. No. 0010)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

Note: (Included with Ref. No. 0010)

$3.99

$

In Stock, only 4 left!

0

0060

Murray 704130

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2

Note: (Included with Ref. No. 0010, 0020 & 0025)

$3.99

$

In Stock, Qty 20+

0

0070

Murray 709522

WHEEL, Yellow, 1.7 x 8, Plastic 1/2

$27.99

$

Usually ships in 2-12 days

0

0100

Murray 709179

PUSHNUT, 1/2

$67.99

$

Usually ships in 2-12 days

0

0120

Murray 770056

NUT, Clip

Note: (Included with Ref. No. 0010, 0020 & 0025)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 708735

COVER, Chute Rotation Moisture

$8.99

$

In Stock, only 1 left!

0

0150

Murray 316042MA

SCREW, Hex Washer Head, #10-HL x 5/8

Note: (Included with Ref. No. 0010)

$4.49

$

Usually ships in 2-12 days

0
