1696781-02 - Snapper Turbo Spacer Kit for 38" Mower Turbo Upfit Kit Parts Diagram

Turbo Spacer Kit for 38" Mower

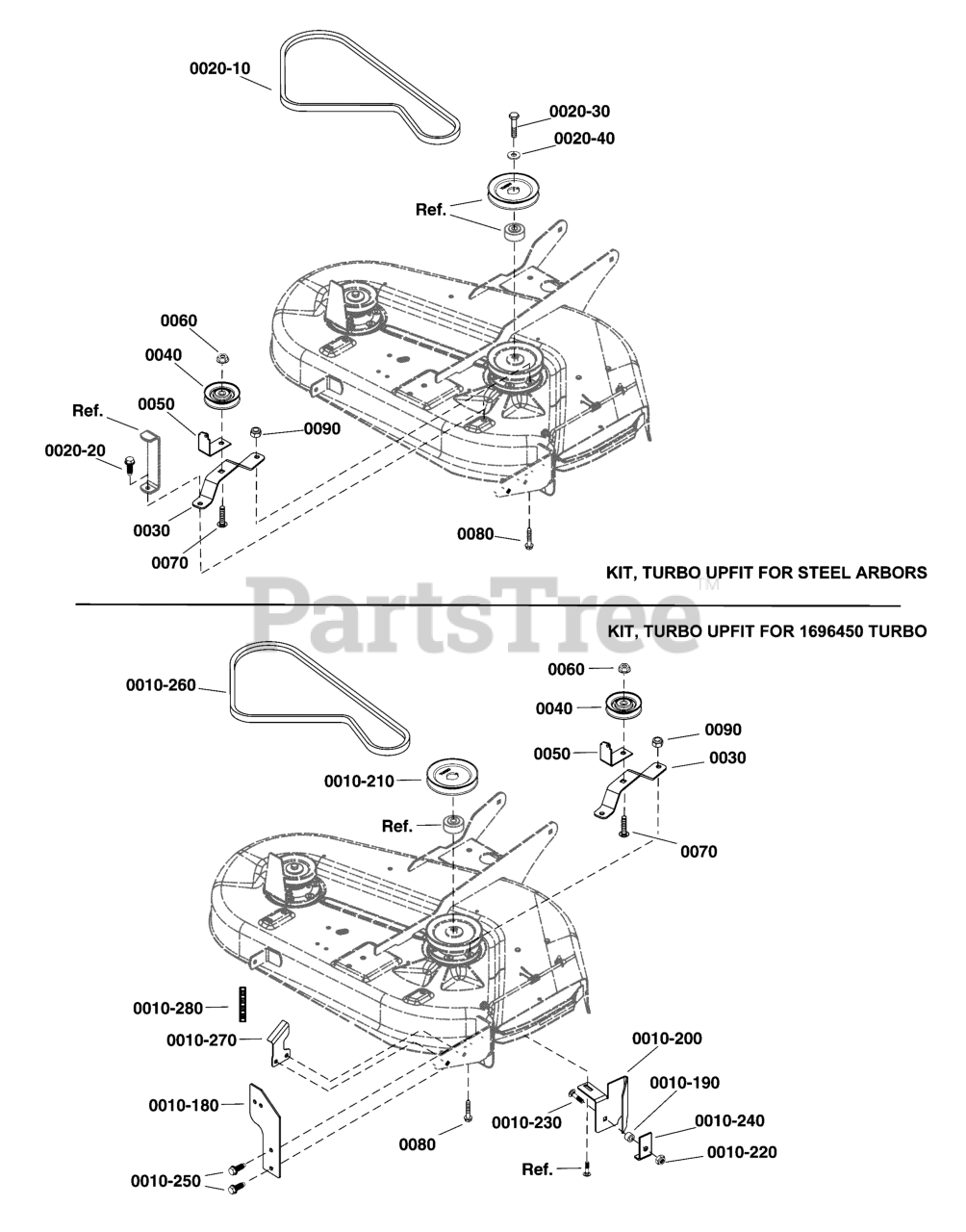

Turbo Upfit Kit Parts Diagram

  • Title

--

38" UPFIT KIT FOR 1696450 TURBO

$

$

Not available

0010-180

Snapper 1724370ASM

BRACE, Turbo

$11.99

$

Usually ships in 2-12 days

0

0010-190

Snapper 1666294SM

SPACER, .385 ID x .6697 OD x .455 Long

$4.99

$

In Stock, Qty 20+

0

0010-200

Snapper 1733076ASM

DEFLECTOR

$114.99

$

Usually ships in 2-12 days

0

0010-210

Snapper 1709941SM

PULLEY, 4-5/16" OD

$28.99

$

Usually ships in 2-12 days

0

0010-220

Snapper 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0010-230

Snapper 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

Usually ships in 2-12 days

0

0010-240

Snapper 1705308ASM

BRACKET, L 12GA 1.00WD 1.98LG 0.62LG

$33.99

$

Usually ships in 2-12 days

0

0010-250

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 18

0

0010-260

Snapper 1737416YP

BELT, COG - 48.25 LG

$40.99

$

Usually ships in 2-12 days

0

0010-270

Snapper 1757997AYP

BRACKET, Height of Cut

$16.99

$

Usually ships in 2-12 days

0

0010-280

Snapper 1726642SM

DECAL, Height Of Cut, 1 2 3 4

$10.99

$

Usually ships in 2-12 days

0

--

38" UPFIT KIT FOR STEEL ARBORS

$

$

Not available

0020-10

Snapper 1737073YP

V-BELT, Cog, 47.875

$31.99

$

In Stock, only 1 left!

0

0020-20

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0020-30

Snapper 705877

CAPSCREW, Hex Head, 7/16-14 x 2 1/2

$7.49

$

Usually ships in 2-12 days

0

0020-40

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0030

Snapper 1759885CKYP

BRACKET, Idler Pulley

$67.99

$

Usually ships in 2-12 days

0

0040

Snapper 1721134SM

PULLEY, 3" OD

$30.99

$

Usually ships in 2-12 days

0

0050

Snapper 1724373ASM

BRACKET, L 12GA 1.24WD 2.24LG 2.28LG

$17.99

$

Usually ships in 2-12 days

0

0060

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0070

Snapper 703858

BOLT, Carriage, 3/8-16 X 1 3/4

$4.99

$

In Stock, Qty 5

0

0080

Snapper 2860678SM

CAPSCREW, Taptite R, 5/16-18 x 1-3/4

$4.49

$

In Stock, Qty 7

0

0090

Snapper 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 12

0
