1696783 A-00 - Simplicity Turbo Collection System for 52" FAB Mower Deck Turbo Mounting Group Parts Diagram

Turbo Collection System for 52" FAB Mower Deck

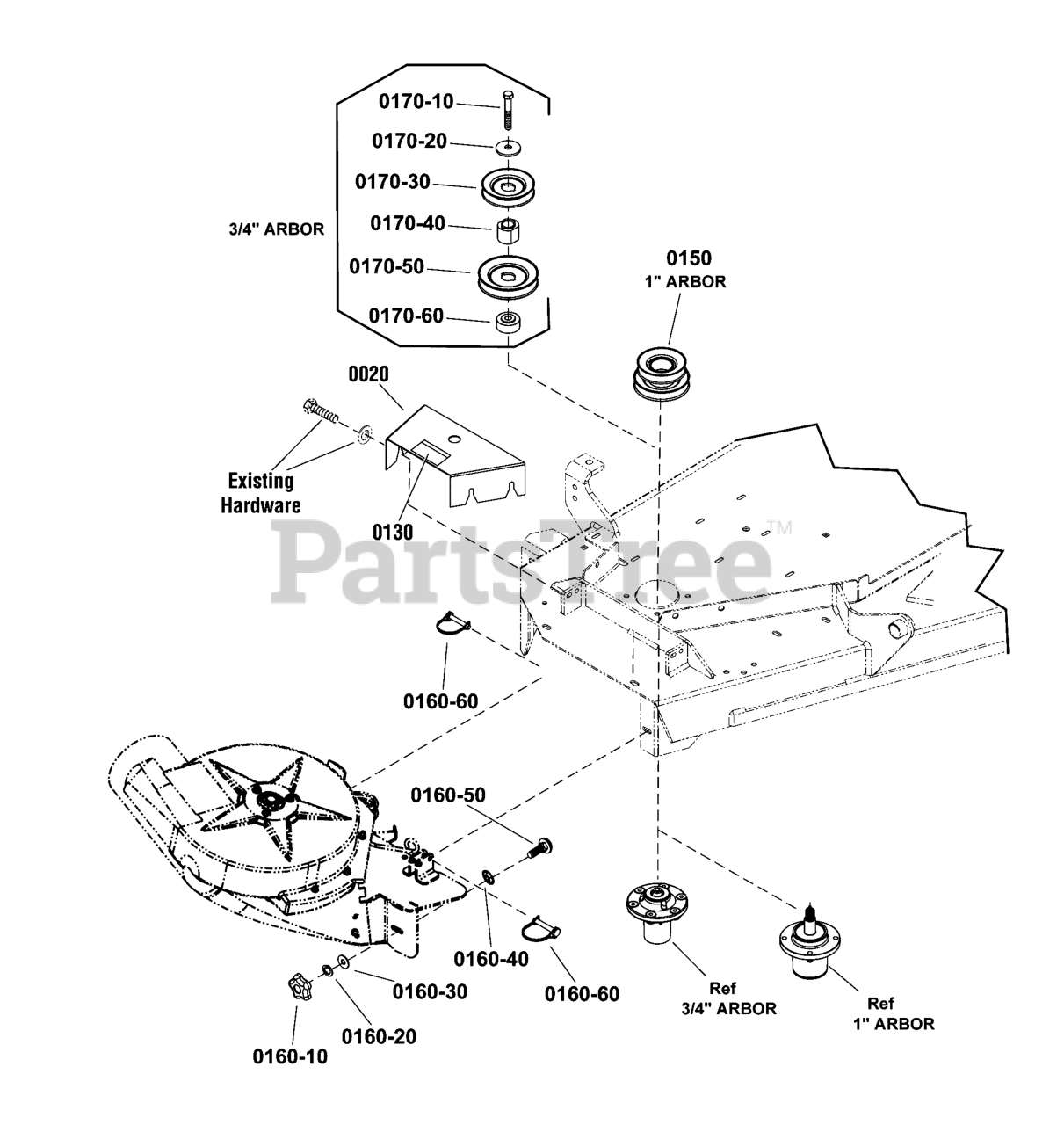

Turbo Mounting Group Parts Diagram

  • Title

0020

Simplicity 1761045CKYP

GUARD, Pulley w/Decal

$85.99

$

Usually ships in 2-12 days

0

0130

Simplicity 5103184YP

DECAL, Danger

$13.99

$

Usually ships in 2-12 days

0

0150

Simplicity 5103468YP

PULLEY, Double

$182.99

$

Usually ships in 2-12 days

0

--

*HARDWARE BAG

Note: (Not a serviceable part, order components separately,1756733)

$

$

Not available

0160-10

Simplicity 7105085YP

KNOB, 5 Prong, 5/16-18

$7.49

$

In Stock, Qty 20+

0

0160-20

Simplicity 703116

LOCKWASHER, Split, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0160-30

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0160-40

Simplicity 703297

RETAINER, Pushnut, 5/16 x 5/8

$3.99

$

In Stock, Qty 6

0

0160-50

Simplicity 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, only 2 left!

0

0160-60

Simplicity 5100847SM

SNAPPERPIN, 5/16 X 2

$16.99

$

In Stock, only 1 left!

0

--

CAPSCREW-HEX HD 7/16-14X2.750 G5 ZC/CL

Note: (Not a serviceable part, order components separately, 80020799)

$

$

Not available

0170-10

Simplicity 1926110SM

CAPSCREW, Hex Head, 7/16-14 x 2-3/4, GR5

$6.49

$

In Stock, Qty 6

0

0170-20

Simplicity 1656916SM

WASHER, Spring

$7.99

$

In Stock, Qty 20+

0

0170-30

Simplicity 1713090SM

PULLEY, 3 3/4

$26.99

$

In Stock, only 1 left!

0

0170-40

Simplicity 1713634SM

HUB, Double, 1-9/32 Tall

$17.99

$

Usually ships in 2-12 days

0

0170-50

Simplicity 1713098SM

PULLEY, .49" Shallow-Groove OD 4.25"

$19.99

$

In Stock, Qty 20+

0

0170-60

Simplicity 1758623YP

SPACER, Hub

$

$

Not available
