1696802-00 - Simplicity 38"/96cm Mower Deck 38" (96cm) Mower Deck - Height Adjustment & Roller Group Parts Diagram

38"/96cm Mower Deck

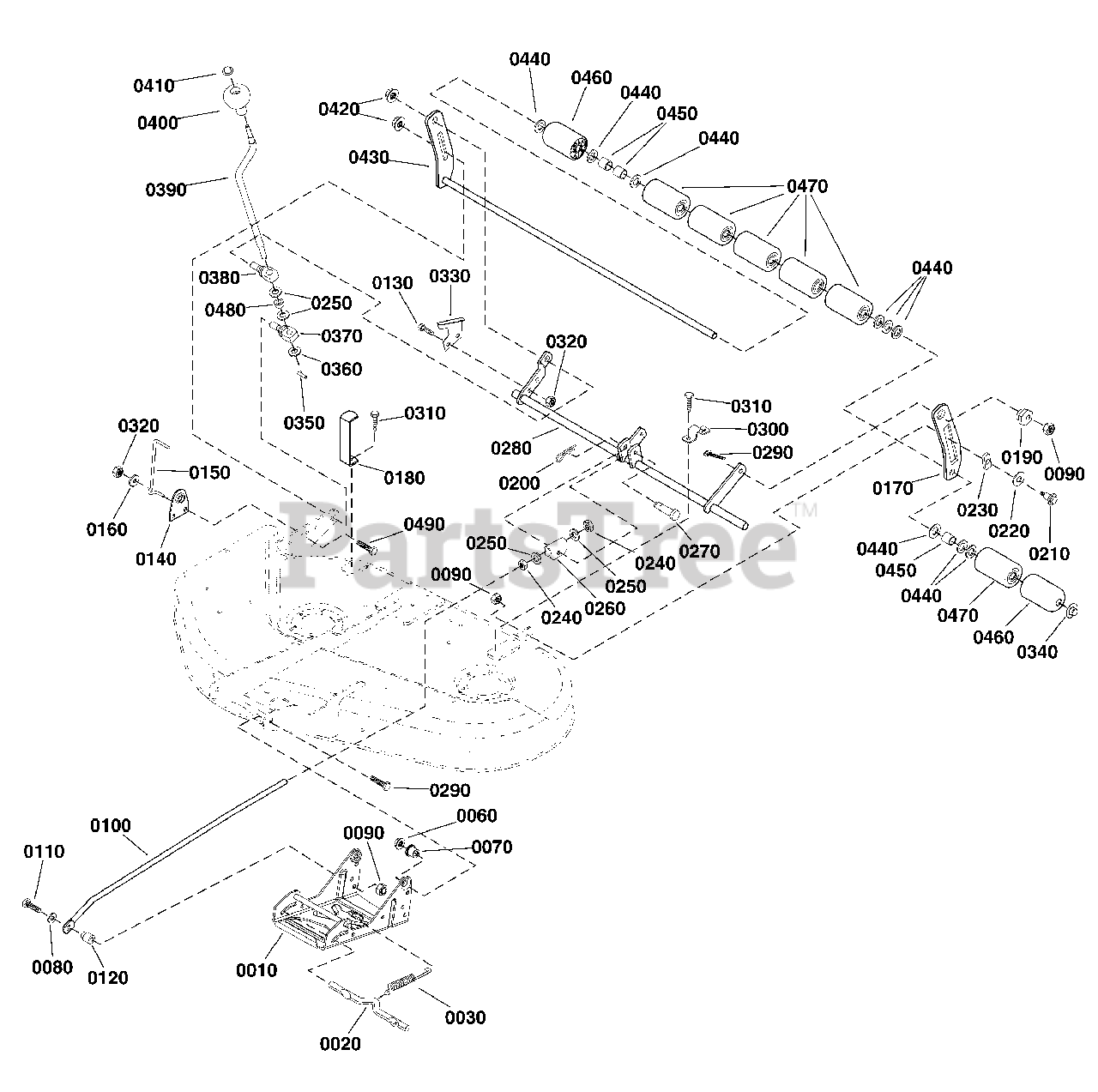

38" (96cm) Mower Deck - Height Adjustment & Roller Group Parts Diagram

  • Title

0010

Simplicity 1720044A

HITCH, Mower 7GA
(Superseded to 1760192AYP)

$155.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1715759

ROD, 3/8" Dia., 8" Long
(Superseded to 1715759SM)

$7.99

$

In Stock, only 4 left!

0

0030

Simplicity 2156302

SPRING (Qty. 1 used on 990391 Only)
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 9

0

0060

Simplicity 1960687

NUT, Hex Lock Flange, 5/16 - 18 ESNA
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0070

Simplicity 1732443

SPACER, 3/8ID x 3/4OD x 3/4
(Superseded to 1732443SM)

$5.99

$

In Stock, only 4 left!

0

0080

Simplicity 1924940

Flatwasher, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 2860681

NUT, Hex Toplock, Spiral Lock Flange, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 11

0

0100

Simplicity 1729625

ROD, E-Coat, 1/2-13 x 5.3, 28.900LG
(Superseded to 1729625SM)

$43.99

$

In Stock, only 1 left!

0

0110

Simplicity 1922606

BOLT, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0120

Simplicity 1706644

SPACER,3/8X3/4X15/16
(Superseded to 1706644SM)

$8.49

$

Usually ships in 2-12 days

0

0130

Simplicity 1923325

CAPSCREW, Hex Head, 5/16-18 x 7/8 G5 Black
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

0140

Simplicity 1704115A

PLATE, Support
(Superseded to 1704115ASM)

$11.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1732092

ROD, 1/4 Diameter, Indicator, Cutting Height
(Superseded to 1732092SM)

$11.99

$

In Stock, only 1 left!

0

0160

Simplicity 1919381

WASHER-0.312(0.34IDX1.00ODX.13THK)BLK
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 11

0

0170

Simplicity 1733117A

BAR, Roller Square Slot
(Superseded to 1733117ASM)

$18.99

$

In Stock, only 1 left!

0

0180

Simplicity 1733226A

UPSTOP
(Superseded to 1733226ASM)

$20.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1704082

NUT, Hex Adjusting, Eccentric,1-1/4 OD, 687TH
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 11

0

0200

Simplicity 1960074

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0210

Simplicity 2172622

* BOLT, Shoulder, 3/8-16 1-11/32, GR5
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

0220

Simplicity 1924361

WASHER, Plain, 17/32 x 1-1/4 x 5/64
(Superseded to 703451)

$4.49

$

In Stock, Qty 11

0

0230

Simplicity 1677507

SLIDE, Roller Bar
(Superseded to 1677507SM)

$6.99

$

In Stock, Qty 20+

0

0240

Simplicity 1913744

NUT, 1/2-13 Hex Jam, Black
(Superseded to 1913744SM)

$4.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1960170

Flatwasher, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0260

Simplicity 1704081A

TRUNNION, Rod
(Superseded to 1704081ASM)

$7.99

$

Usually ships in 2-12 days

0

0270

Simplicity 2118053

PIN, Round Head Drilled, 3/8 x 2, Black
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

0280

Simplicity 1733118A

SHAFT ASSEMBLY, Rocker 38" (96cm)
(Superseded to 1733118ASM)

$110.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1931352

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 8

0

0300

Simplicity 1665374

STRAP, ROCKER SHAFT
(Superseded to 1761690HYP)

$7.99

$

In Stock, Qty 6

0

0310

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 1931277

NUT, Hex Flange Whiz Lock, 5/16-18 all Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Simplicity 1704116A

BRACKET, Height of Cut 16GA
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1960520

NUT, Push for 5/8 Diameter Stud Capped
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

0350

Simplicity 2816001

PIN-SPRING .188 X 1.00 PLN SAE 1095
(Superseded to 2816001SM)

$4.49

$

Usually ships in 2-12 days

0

0360

Simplicity 1704097

WASHER, Detent, 1"OD
(Superseded to 1704097SM)

$4.49

$

Usually ships in 2-12 days

0

0370

Simplicity 1733257

TRUNNION, 1-1/4 x 5/8 OD With Hole
(Superseded to 1733257SM)

$28.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1733258

TRUNNION, 1-1/4 x 5/8 OD L.H.
(Superseded to 1733258SM)

$

$

Not available

0390

Simplicity 1719901

CRANK, Height Adjust 9/16 Dia. x 16-29/32
(Superseded to 1719901SM)

$48.99

$

In Stock, Qty 6

0

0400

Simplicity 1714084

KNOB, Spinner, 3/8 ID, 2-3/16 OD x 2-1/2 Lg
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

0410

Simplicity 1960093

NUT, Push Pal 5/8 Diameter Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 8

0

0420

Simplicity 1930644

NUT, Hex Flangelock, 1/2-13
(Superseded to 1930644SM)

$3.49

$

Usually ships in 2-12 days

0

0430

Simplicity 1733121A

SHAFT ASSEMBLY, Roller 38"
(Superseded to 1733121ASM)

$

$

Not available

0440

Simplicity 1924366

WASHER, Plain, 1-1/4
(Superseded to 703580)

$4.49

$

In Stock, Qty 16

0

0450

Simplicity 1602946

SPACER, 25/64 x 13/16 x 13/16, Steel, Black
(Superseded to 1602946SM)

$13.99

$

In Stock, only 3 left!

0

0460

Simplicity 1722036

ROLLER, Rounded, 2-1/2 Long
(Superseded to 1722036SM)

$7.99

$

In Stock, only 4 left!

0

0470

Simplicity 1668513

ROLLER, 2-1/2 OD x 4-3/32 Long
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

0480

Simplicity 1716953

SPACER, Heat Treated, Powdered Metal
(Superseded to 1716953SM)

$13.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1921977

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5, Black
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0
