1696802-00 - Simplicity 38"/96cm Mower Deck 38" (96cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

38"/96cm Mower Deck

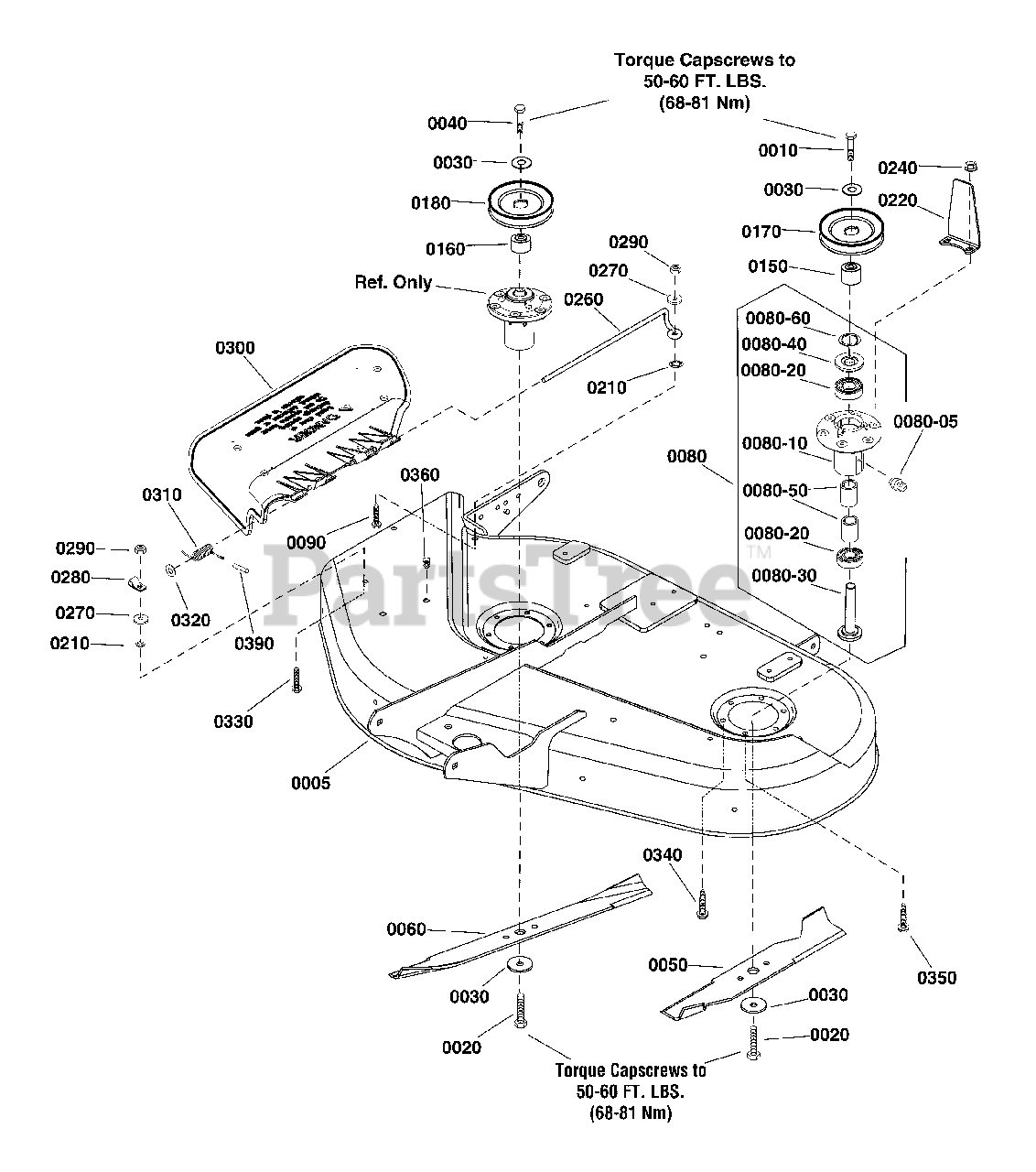

38" (96cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0005

Simplicity 1687269SM

KIT, Mower Deck w/decals
(Superseded to 1733127CYP)

$843.99

$

Usually ships in 2-12 days

0

0010

Simplicity 705877

CAPSCREW, Hex Head, 7/16-14 x 2 1/2, GR5

$7.49

$

Usually ships in 2-12 days

0

0020

Simplicity 1920676SM

CAPSCREW, HexHead, 7/16-14 X 1, G5, BLK

$5.49

$

In Stock, Qty 5

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 705424

CAPSCREW, Hex Head, 7/16-14 X1 3/4, G5
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

0050

Simplicity 1704856ASM

BLADE, Mower, 16-1/8", LH

$24.99

$

In Stock, Qty 20+

0

0060

Simplicity 1704101A

BLADE, Mower 22-1/4
(Superseded to 1716695ASM)

$29.99

$

In Stock, Qty 20+

0

0080

Simplicity 1760726

* ARBOR ASSEMBLY

Note: (*See footnote)

$

$

Currently unavailable

0080-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0080-10

Simplicity 1760371YP

HOUSING, w/Lube Fitting

$76.99

$

In Stock, Qty 17

0

0080-20

Simplicity 1735399YP

BEARING, Ball 20mm

$9.99

$

In Stock, Qty 20+

0

0080-30

Simplicity 1755472YP

SHAFT, Spindle

$

$

Not available

0080-40

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 20+

0

0080-50

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, Qty 20+

0

0080-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 1960698SM

BOLT, Round Head, Short Neck, 1/4-20 X 1
(Superseded to 703584)

$3.99

$

In Stock, only 3 left!

0

0150

Simplicity 1759940YP

SPACER, Upper Drive

$16.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1758623YP

SPACER, Hub

$

$

Not available

0170

Simplicity 1732950SM

PULLEY

$20.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1732953SM

PULLEY

$31.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703826

NUT, Nylock, 5/16-18

$3.49

$

In Stock, Qty 16

0

0220

Simplicity 1759808BMYP

UPSTOP

$

$

Not available

0240

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 11

0

0260

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 7

0

0270

Simplicity 703229

WASHER, 1/4 x 27/32

$4.49

$

In Stock, only 2 left!

0

0280

Simplicity 1704873SM

CLAMP, Wire, 5/16 Diameter . (1) .281 Hole Black

$4.49

$

Usually ships in 2-12 days

0

0290

Simplicity 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 1705449SM

DEFLECTOR, Discharge

$122.99

$

In Stock, Qty 13

0

0310

Simplicity 1759750YP

SPRING, Deflector

$8.49

$

In Stock, only 1 left!

0

0320

Simplicity 1919326SM

WASHER, 5/16, .34 ID x 3/4 OD x .06 THK

$4.49

$

In Stock, Qty 18

0

0330

Simplicity 703584

BOLT, Carriage, 1/4-20 x 1

$3.99

$

In Stock, only 3 left!

0

0340

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0350

Simplicity 2860678SM

CAPSCREW, Taptite R, 5/16-18 x 1-3/4

$4.49

$

In Stock, Qty 7

0

0360

Simplicity 7046780

PLUG, Hole, Polyethylene
(Superseded to 7046780SM)

$4.99

$

In Stock, only 1 left!

0

0390

Simplicity 1723323SM

CAP-SPRING END .093ID .75 LG BLACK VINYL

$4.99

$

In Stock, Qty 6

0
