1696803-00 - Simplicity 44"/112cm Mower Deck 44" (112cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

44"/112cm Mower Deck

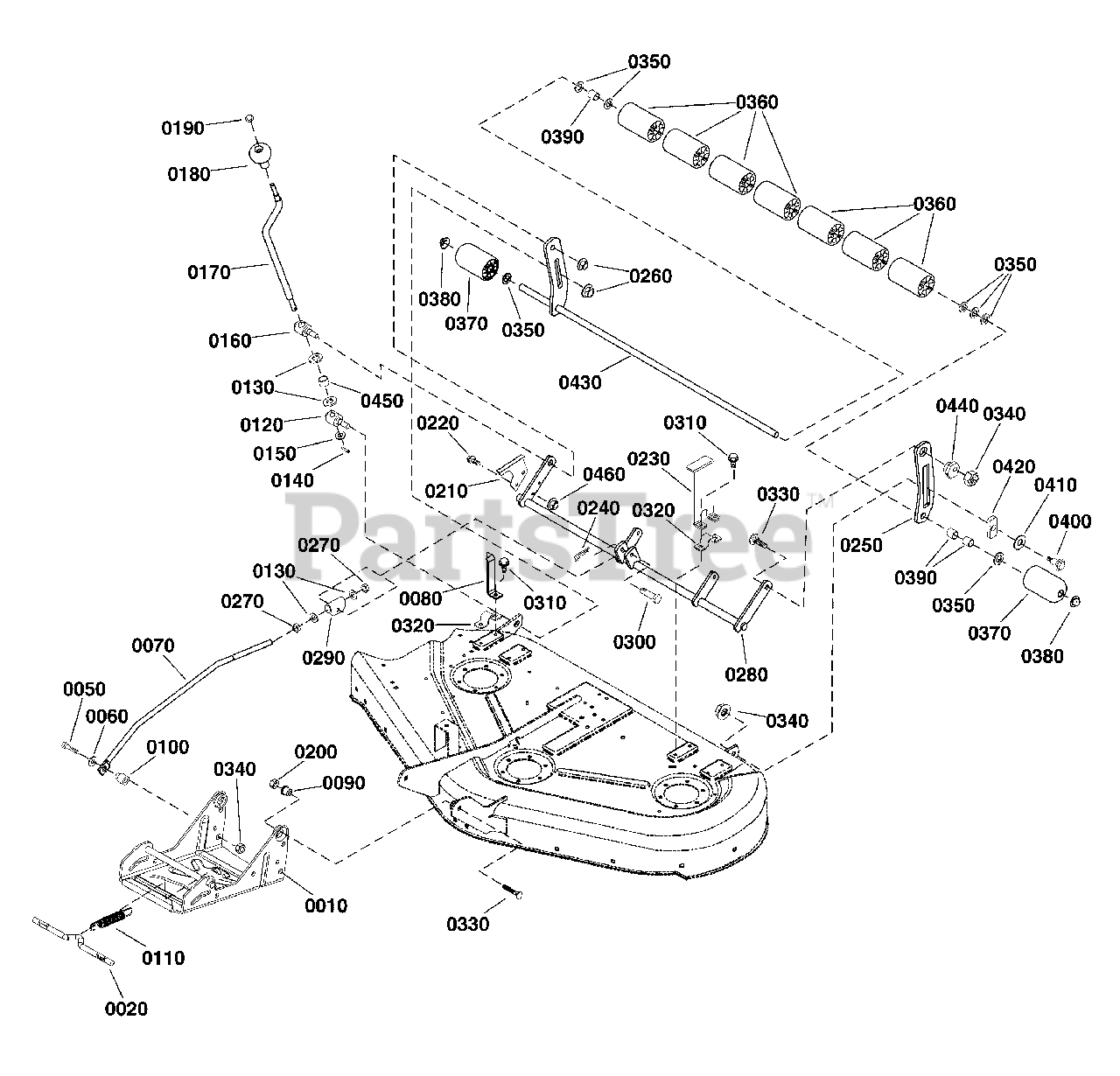

44" (112cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

  • Title

0010

Simplicity 1760192AYP

HITCH ASSEMBLY

$155.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1715759

ROD, 3/8" Dia., 8" Long
(Superseded to 1715759SM)

$7.99

$

In Stock, Qty 5

0

0050

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 11

0

0060

Simplicity 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 1733316SM

ROD, 1/2

$90.99

$

In Stock, only 1 left!

0

0080

Simplicity 1720643ASM

INDICATOR, Height of Cut

$19.99

$

In Stock, only 2 left!

0

0090

Simplicity 1732443SM

SPACER, 3/8ID x 3/4OD x 3/4

$5.99

$

In Stock, only 2 left!

0

0100

Simplicity 1706644SM

SPACER, .380/.377 I.D. x .750 O.D. x .970 Long

$8.49

$

In Stock, only 1 left!

0

0110

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 6

0

0120

Simplicity 1704086SM

TRUNNION, Threaded

$31.99

$

In Stock, only 1 left!

0

0130

Simplicity 1960170SM

WASHER, 1/2 x 1 OD
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0140

Simplicity 2816001SM

PIN, Spring, 3/16 x 1

$4.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1704097SM

WASHER, Detent, Black

$4.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1704087SM

TRUNNION, Threaded

$109.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1719901SM

CRANK, Height Adjustment, Black

$48.99

$

In Stock, Qty 5

0

0180

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1960093SM

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 5

0

0200

Simplicity 1960687SM

NUT, Hex Flange Nylock, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0210

Simplicity 1704116ASM

BRACKET, Height of Cut 16GA
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0230

Simplicity 1733308ASM

UPSTOP

$30.99

$

In Stock, only 1 left!

0

0240

Simplicity 1960074SM

CLIP, Hair Pin, 1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0250

Simplicity 1733117ASM

BAR, Roller

$18.99

$

In Stock, only 1 left!

0

0260

Simplicity 1930644SM

NUT, 1/2-13 Hex Flange Two-Way Lock Black

$3.49

$

Usually ships in 2-12 days

0

0270

Simplicity 1913744SM

NUT, Hex Jam, 1/2 Jam, 1/2-13

$4.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1733109ASM

SHAFT ASSEMBLY, Rocker 44"

$76.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1704081ASM

TRUNNION, 2 Wide for 9/16 Rod

$7.99

$

Usually ships in 2-12 days

0

0300

Simplicity 2118053SM

PIN, Round Head, Drilled, 3/8 x 2, Black
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

0310

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 1665374SM

STRAP-1.00WD 3.06LG .134THK ROLLER ECOAT
(Superseded to 1761690HYP)

$7.99

$

In Stock, Qty 6

0

0330

Simplicity 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5

$4.49

$

In Stock, Qty 8

0

0340

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 10

0

0350

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG, Black, Poly

$10.99

$

In Stock, Qty 7

0

0370

Simplicity 1722036SM

ROLLER, Rounded, 4.1 LG, 650 ID, 2.50 OD Rounded End, Black, Poly

$7.99

$

In Stock, Qty 9

0

0380

Simplicity 1960520SM

NUT, Push For .625 DIA Stud Capped, Blk
(Superseded to 771009)

$3.99

$

In Stock, Qty 16

0

0390

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

Usually ships in 2-12 days

0

0400

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0410

Simplicity 1924361SM

WASHER, Flat
(Superseded to 703451)

$4.49

$

In Stock, Qty 9

0

0420

Simplicity 1677507SM

SLIDE, .803 x 1.7

$6.99

$

In Stock, Qty 18

0

0430

Simplicity 1733122ASM

SHAFT ASSEMBLY, Roller 44"

$95.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 11

0

0450

Simplicity 1709195SM

SPACER-0.666 ID X 0.876OD X 1.25 LG SPLIT BLK

$5.99

$

In Stock, Qty 9

0

0460

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0
