1696839-00 - Snapper Cargo Box for Bed Only Cargo Bed Parts Diagram

Cargo Box for Bed Only

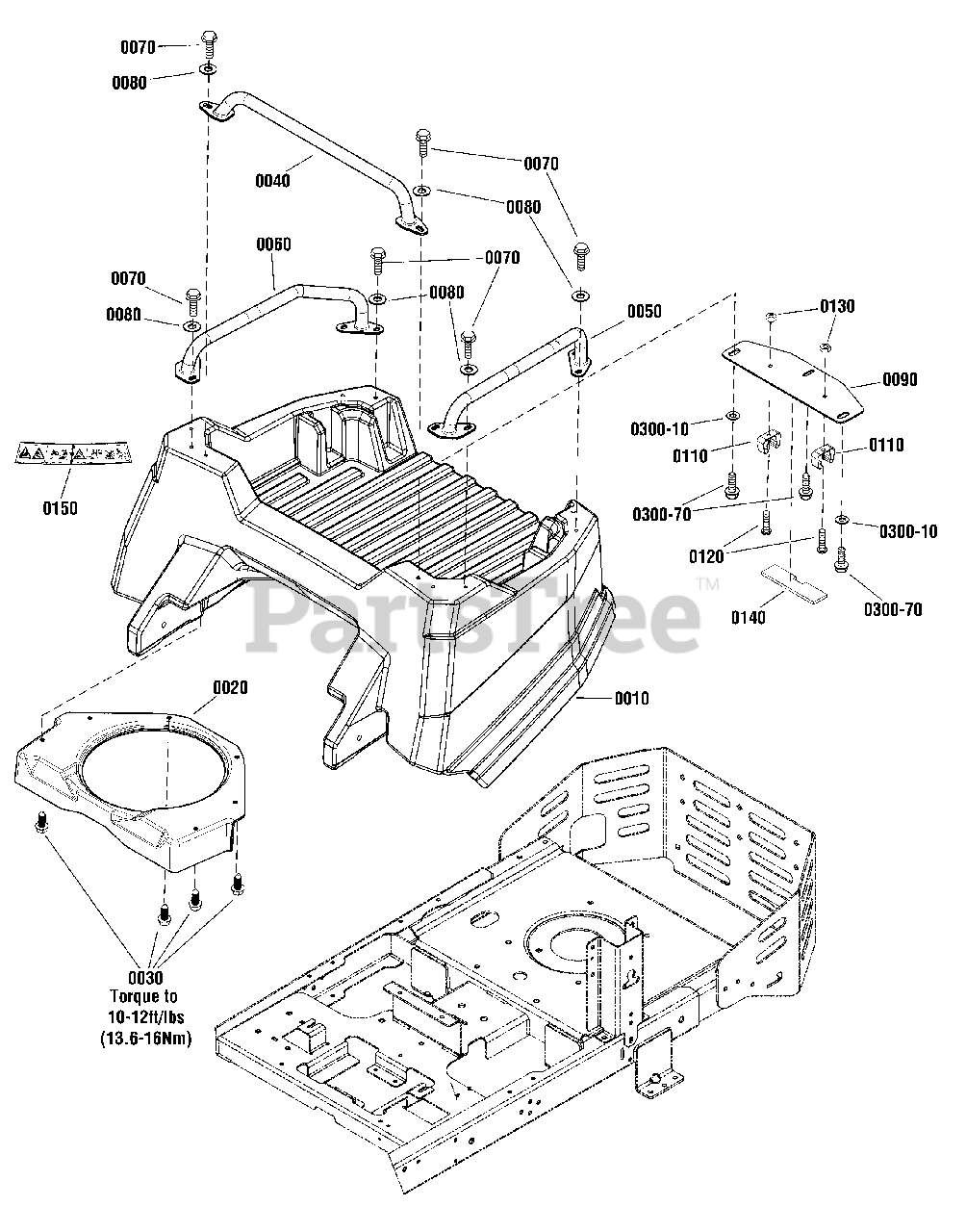

Cargo Bed Parts Diagram

  • Title

0010

Snapper 1758154YP

BOX, Cargo

$773.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759078YP

PLENUM, Utility Box

$138.99

$

Usually ships in 2-12 days

0

0030

Snapper 708152

SCREW, Hex Washer Head

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 1759079YP

RAIL, Front

$132.99

$

Usually ships in 2-12 days

0

0050

Snapper 1759083YP

RAIL, Side, LH

$132.99

$

Usually ships in 2-12 days

0

0060

Snapper 1759086YP

RAIL, Side, RH

$132.99

$

Usually ships in 2-12 days

0

0070

Snapper 1931646SM

SCREW, Hex Flange, 1/4-20 X 1/2
(Superseded to 7091579SM)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 7091253YP

WASHER, Flat

$4.99

$

Usually ships in 2-12 days

0

0090

Snapper 1759357AYP

PLATE, Latch

$33.99

$

Usually ships in 2-12 days

0

0110

Snapper 1726728SM

CLIP
(Superseded to 1501672MA)

$9.49

$

In Stock, Qty 14

0

0120

Snapper 1930531SM

SCREW, Truss, #10-32, GR5

$4.49

$

In Stock, only 2 left!

0

0130

Snapper 1928919SM

NUT, Hex, #10 - 32

$3.99

$

In Stock, Qty 13

0

0140

Snapper 1759603YP

PAD, Friction

$14.99

$

Usually ships in 2-12 days

0

0150

Snapper 1759649YP

DECAL, Danger, (CE)

$

$

Not available

--

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Not available

0300-10

Snapper 5025288YP

WASHER, 1/4 Fender

$3.99

$

In Stock, Qty 12

0

0300-70

Snapper 1931646SM

SCREW, Hex Flange, 1/4-20 X 1/2
(Superseded to 7091579SM)

$3.99

$

Usually ships in 2-12 days

0
