1696891-00 - Snapper Cultivator Attachment for 82V Battery Electric 1696891 Parts Diagram

Cultivator Attachment for 82V Battery Electric

1696891 Parts Diagram

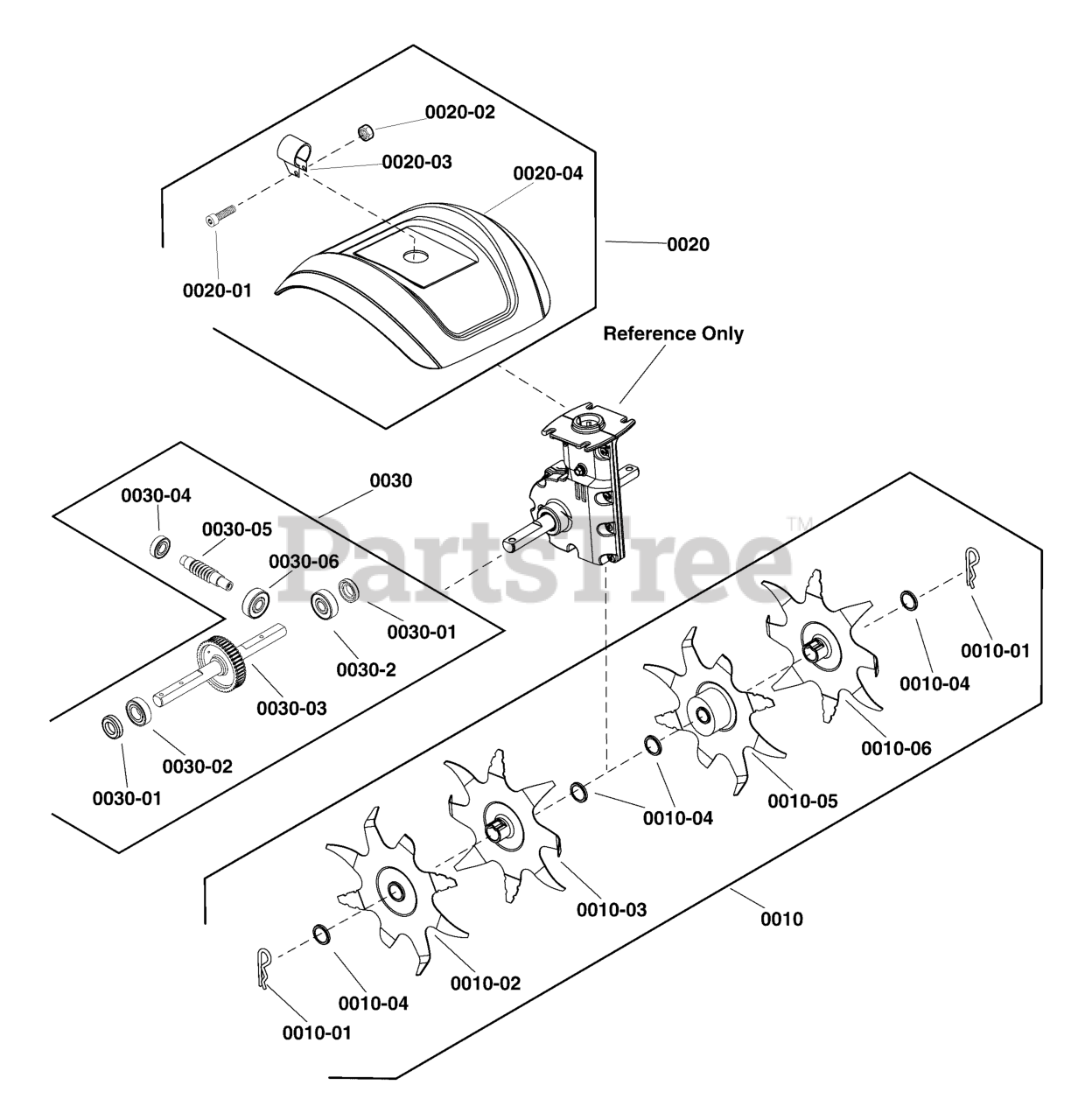

  • Title

0010

Snapper 771074

KIT, Blade

Note: (Includes Ref 0010-01 through 0010-06)

$165.99

$

Usually ships in 2-12 days

0

0010-01

PIN

$

$

Not available

0010-02

GEAR, Left A

$

$

Not available

0010-03

GEAR, Left B

$

$

Not available

0010-04

WASHER

$

$

Not available

0010-05

GEAR, Right C

$

$

Not available

0010-06

GEAR, Right D

$

$

Not available

0020

Snapper 771075

KIT, Splash Guard

Note: (Includes Ref 0020-01 through 0020-04)

$61.99

$

Usually ships in 2-12 days

0

0020-01

SCREW, M6*30

$

$

Not available

0020-02

NUT, M6

$

$

Not available

0020-03

CLAMP

$

$

Not available

0020-04

GUARD, Splash

$

$

Not available

0030

Snapper 84003806

GEAR ASSEMBLY

Note: (Includes Ref 0030-01 through 0030-06)

$

$

Currently unavailable

0030-01

SEAL, Oil

$

$

Not available

0030-02

BEARING

$

$

Not available

0030-03

SHAFT & GEAR

$

$

Not available

0030-04

BEARING

$

$

Not available

0030-05

GEAR, Worm

$

$

Not available

0030-06

BEARING

$

$

Not available
