Simplicity 1696939-00 - Simplicity 38" Mower Deck 38" (96cm) Mower Deck - Height Adjustment & Roller Group Parts Lookup with Diagrams

0010

Simplicity 1760192AYP

HITCH ASSEMBLY

$155.99

$

In Stock, only 2 left!

0020

Simplicity 1715759SM

ROD, 3/8 x 8

$7.99

$

In Stock, Qty 8

0030

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 11

0060

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0070

Simplicity 1732443SM

SPACER, 3/8 x 3/4 x 3/4

$5.99

$

In Stock, Qty 6

0080

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0090

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 10

0100

Simplicity 1729625SM

ROD, 1/2-13 x 5.3

$43.99

$

Usually ships in 2-12 days

0110

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0120

Simplicity 1706644SM

SPACER, .380/.377 I.D. x .750 O.D. x .970 Long

$8.49

$

In Stock, only 2 left!

0130

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 18

0140

Simplicity 1704115ASM

PLATE, Support

$11.99

$

Usually ships in 2-12 days

0150

Simplicity 1732092SM

ROD, 1/4

$11.99

$

Usually ships in 2-12 days

0160

Simplicity 1919381SM

WASHER, Flat, .34 ID x 1" OD

(Superseded to 703298) 

$4.49

$

In Stock, Qty 12

0170

Simplicity 1761590COYP

BAR, Roller, 38"

$37.99

$

Usually ships in 2-12 days

0180

Simplicity 1733226ASM

UPSTOP

$20.99

$

Usually ships in 2-12 days

0190

Simplicity 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 10

0200

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0210

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34, 1/2 Shoulder

$6.99

$

In Stock, Qty 20+

0220

Simplicity 703451

WASHER, Flat, 17/32 X 1 1/4

$4.49

$

Usually ships in 2-12 days

0230

Simplicity 1677507SM

SLIDE, .803 x 1.7

$6.99

$

In Stock, Qty 16

0240

Simplicity 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

Usually ships in 2-12 days

0250

Simplicity 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0260

Simplicity 1704081ASM

TRUNNION

$7.99

$

Usually ships in 2-12 days

0270

Simplicity 704241

PIN, Round Head, 3/8 X 2

$9.99

$

Usually ships in 2-12 days

0280

Simplicity 1761295COYP

SHAFT, Rocker, 38"

$168.99

$

Usually ships in 2-12 days

0290

Simplicity 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 10

0300

Simplicity 1665374BMYP

STRAP, Rocker Shaft

$

Not available 

0310

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0320

Simplicity 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0330

Simplicity 1704116BMYP

BRACKET, Height of Cut

$11.99

$

In Stock, only 1 left!

0340

Simplicity 771009

PUSHNUT

$3.99

$

In Stock, Qty 20+

0350

Simplicity 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0360

Simplicity 704039

CLIP, Hair Pin

$4.49

$

In Stock, only 1 left!

0370

Simplicity 1761788YP

MOTOR, Electric

$107.99

$

In Stock, only 1 left!

0380

Simplicity 1960757SM

NUT, Hex, 1/4-20 L.H. Thread

$5.49

$

In Stock, only 1 left!

0390

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 12

0400

Simplicity 5101162YP

SPACER, .52 X 1.00 X .56

$7.49

$

In Stock, only 2 left!

0410

Simplicity 1761477CKYP

ARM, Mount EHOC

$14.99

$

Usually ships in 2-12 days

0420

Simplicity 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, only 1 left!

0430

Simplicity 1761551COYP

SHAFT, Roller, 38"

$182.99

$

Usually ships in 2-12 days

0440

Simplicity 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0450

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 13

0460

Simplicity 1722036SM

ROLLER, Rounded, 4.1 LG, 650 ID, 2.50 OD Rounded End

$7.99

$

In Stock, Qty 20+

0470

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG

$10.99

$

In Stock, Qty 20+

0480

Simplicity 7092017YP

BOLT, 1/2-20 X 1.15, 5/8 Shoulder

$7.99

$

In Stock, only 2 left!

0490

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 12

0500

Simplicity 7014334YP

SPACER, .625 OD X .388 ID X .801

$7.99

$

Usually ships in 2-12 days

0510

Simplicity 703858

BOLT, Carriage, 3/8-16 X 1 3/4

$4.99

$

In Stock, Qty 5

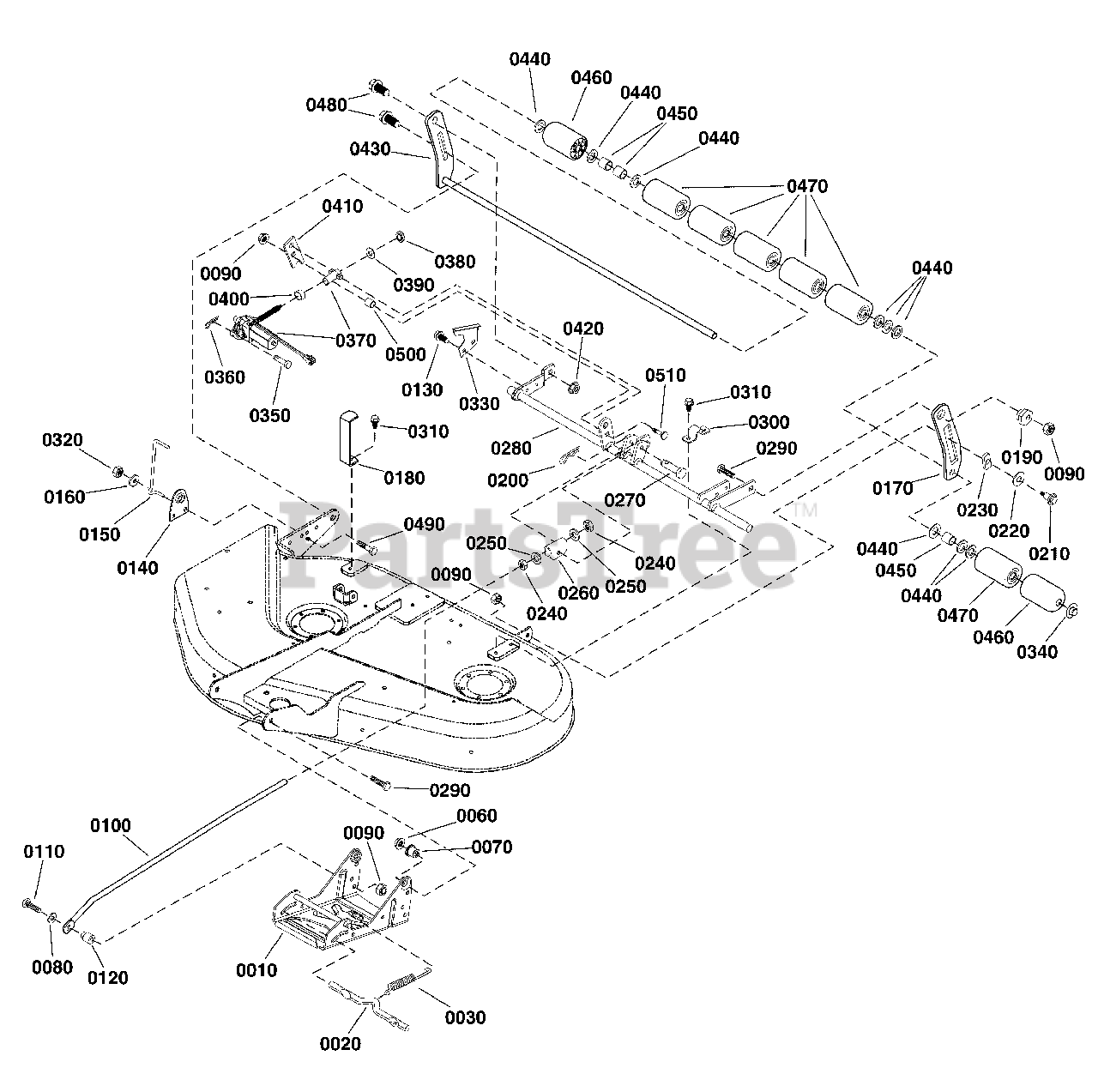

1696939-00 - Simplicity 38" Mower Deck 38" (96cm) Mower Deck - Height Adjustment & Roller Group Parts Diagram

38" (96cm) Mower Deck - Height Adjustment & Roller Group Parts Diagram
