1696940-00 - Simplicity 42" Mower Deck 42" Mower Deck - Height Adjustment & Roller Bar Group (2992424) Parts Diagram

42" Mower Deck

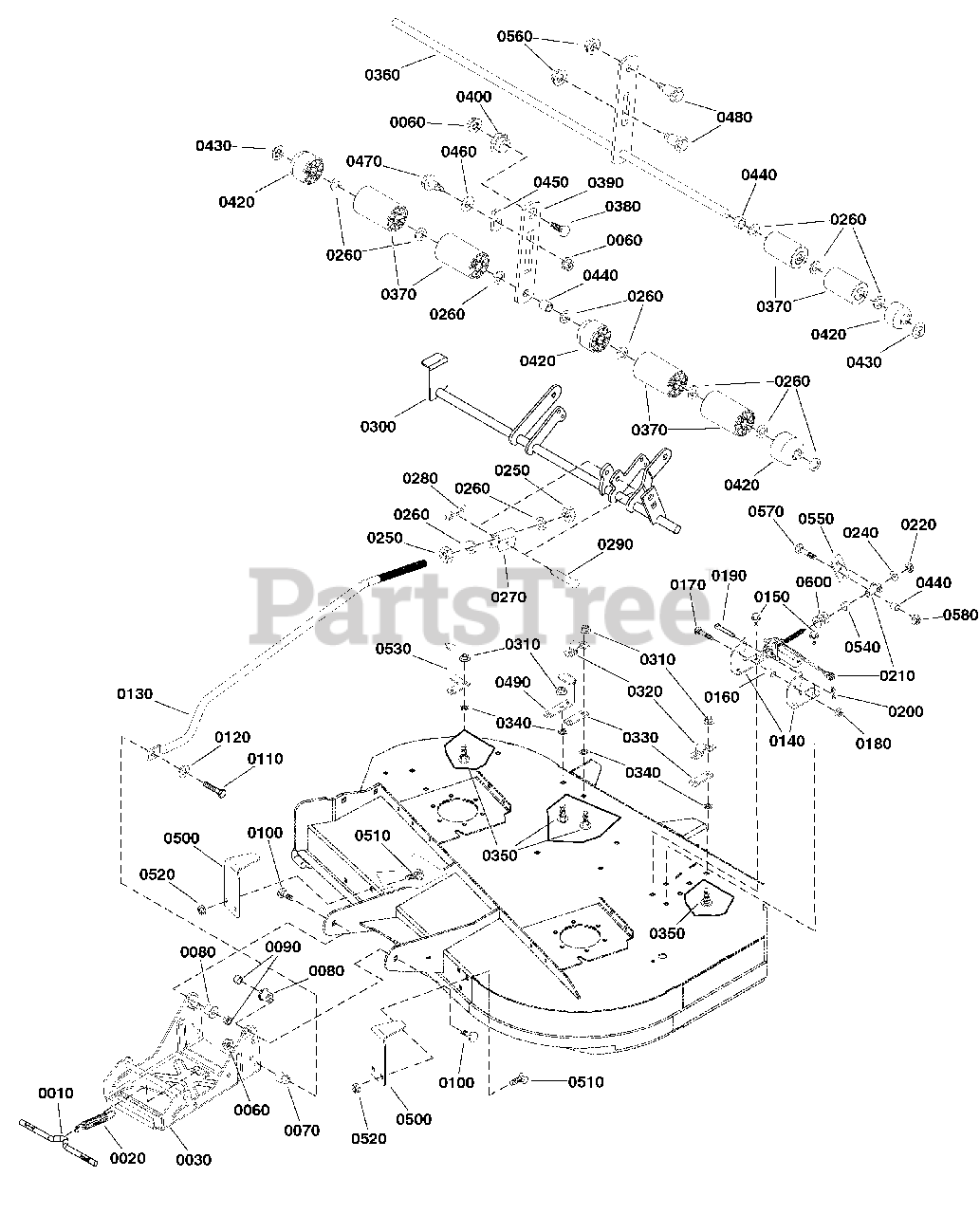

42" Mower Deck - Height Adjustment & Roller Bar Group (2992424) Parts Diagram

  • Title

0010

Simplicity 1715759SM

ROD, 3/8 x 8

$7.99

$

In Stock, Qty 8

0

0020

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 11

0

0030

Simplicity 1760192AYP

HITCH ASSEMBLY

$155.99

$

In Stock, only 2 left!

0

0060

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 11

0

0070

Simplicity 1706644SM

SPACER, .380/.377 I.D. x .750 O.D. x .970 Long

$8.49

$

In Stock, only 2 left!

0

0080

Simplicity 1732443SM

SPACER, 3/8 x 3/4 x 3/4

$5.99

$

In Stock, Qty 6

0

0090

Simplicity 71046MA

NUT, Hex Nylock, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

0100

Simplicity 7091945YP

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

0110

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 15

0

0120

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0130

Simplicity 1758543YP

ROD, Pitch

$50.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1756489AYP

BRACKET, Motor

$10.99

$

Usually ships in 2-12 days

0

0150

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0160

Simplicity 1733068SM

SPACER, 0.39 x 3/4 x 0.965

$13.99

$

In Stock, only 1 left!

0

0170

Simplicity 5025145X14

BOLT, 5/16-18 X 1-3/4, CARRIAGE
(Superseded to 5025145X14YP)

$2.49

$

Usually ships in 2-12 days

0

0180

Simplicity 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 9

0

0190

Simplicity 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0200

Simplicity 704039

CLIP, Hair Pin

$4.49

$

In Stock, only 1 left!

0

0210

Simplicity 1761788YP

MOTOR, Electric

$107.99

$

In Stock, only 1 left!

0

0220

Simplicity 1960757SM

NUT, Hex, 1/4-20 L.H. Thread

$5.49

$

In Stock, only 1 left!

0

0240

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 17

0

0250

Simplicity 703912

NUT, Hex, 5/8-11

$3.49

$

In Stock, only 1 left!

0

0260

Simplicity 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0270

Simplicity 1706645BMYP

TRUNNION

$

$

Not available

0280

Simplicity 403162MA

PIN, Hair, 3/32 X 1.6

$

$

Not available

0290

Simplicity 704241

PIN, Round Head, 3/8 X 2

$9.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1761410COYP

SHAFT, Rocker

$139.99

$

Usually ships in 2-12 days

0

0310

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0320

Simplicity 1665374ASM

STRAP, Rocker Shaft

$

$

Not available

0330

Simplicity 1757527YP

SPACER, Bearing Strap

$9.99

$

Usually ships in 2-12 days

0

0340

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0350

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 16

0

0360

Simplicity 1758959BMYP

SHAFT, Roller

$78.99

$

In Stock, only 1 left!

0

0370

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG

$10.99

$

In Stock, Qty 20+

0

0380

Simplicity 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 10

0

0390

Simplicity 1758738BMYP

BAR, Roller

$34.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 10

0

0420

Simplicity 1717675SM

ROLLER, .650 ID, 2.5" OD, 2.05" Long, Rounded End

$6.99

$

In Stock, Qty 20+

0

0430

Simplicity 771009

PUSHNUT

$3.99

$

In Stock, Qty 20+

0

0440

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 13

0

0450

Simplicity 1677507SM

SLIDE, .803 x 1.7

$6.99

$

In Stock, Qty 16

0

0460

Simplicity 703451

WASHER, Flat, 17/32 X 1 1/4

$4.49

$

Usually ships in 2-12 days

0

0470

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34, 1/2 Shoulder

$6.99

$

In Stock, Qty 20+

0

0480

Simplicity 7092017YP

BOLT, 1/2-20 X 1.15, 5/8 Shoulder

$7.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1761815CKYP

UPSTOP

$31.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1759106BMYP

UPSTOP

$20.99

$

Usually ships in 2-12 days

0

0510

Simplicity 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0520

Simplicity 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0530

Simplicity 1757998BMYP

INDICATOR, Height of Cut

$17.99

$

Usually ships in 2-12 days

0

0540

Simplicity 5044609SM

SPACER, .52 X 1.00 X .38, CZ

$6.49

$

Usually ships in 2-12 days

0

0550

Simplicity 1733776AYP

ARM, Rear

$14.99

$

Usually ships in 2-12 days

0

0560

Simplicity 15X112MA

NUT, Hex Flange, Serrated, 1/2-20

$5.49

$

Usually ships in 2-12 days

0

0570

Simplicity 1960706SM

BOLT, Carriage, Short Neck, 1/2-13 x 2

$5.99

$

Usually ships in 2-12 days

0

0580

Simplicity 1960689SM

NUT, Hex, Toplock Flange,1/2-13

$3.49

$

Usually ships in 2-12 days

0

0600

Simplicity 704123

WASHER, 1/2 Flat

$4.49

$

In Stock, Qty 17

0
