1696941-00 - Simplicity 44" Mower Deck 44" (112cm) Mower Deck - Height Adjust & Roller Group (2992425) Parts Diagram

44" Mower Deck

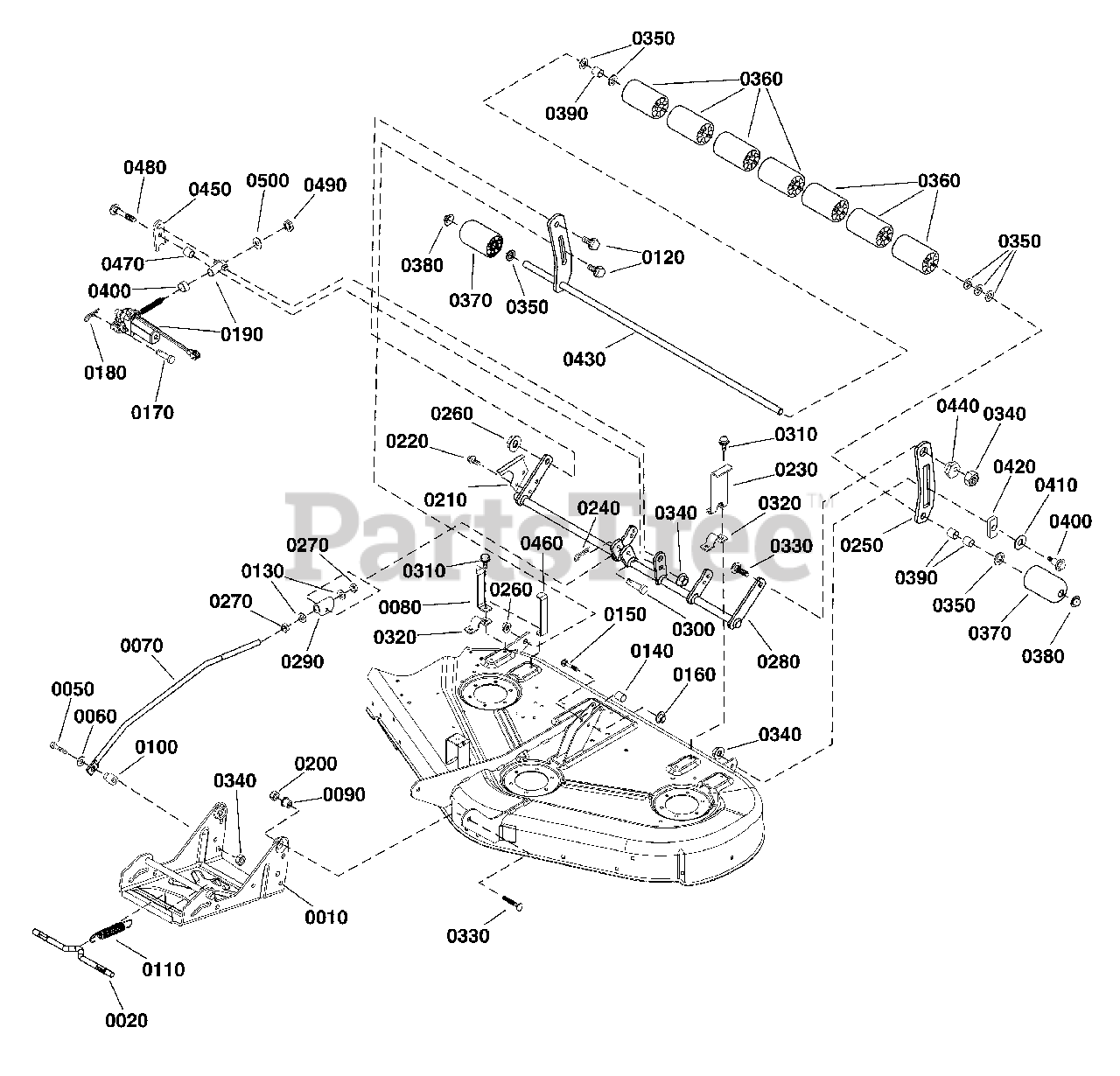

44" (112cm) Mower Deck - Height Adjust & Roller Group (2992425) Parts Diagram

  • Title

0010

Simplicity 1760192AYP

HITCH ASSEMBLY

$164.99

$

In Stock, only 2 left!

0

0020

Simplicity 1715759SM

ROD, 3/8 x 8

$8.49

$

In Stock, Qty 5

0

0050

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

Usually ships in 2-12 days

0

0060

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 1733316SM

ROD, 1/2

$95.99

$

In Stock, only 4 left!

0

0080

Simplicity 1720643ASM

INDICATOR, Height of Cut

$20.99

$

In Stock, only 1 left!

0

0090

Simplicity 1732443SM

SPACER, 3/8 x 3/4 x 3/4

$6.49

$

In Stock, Qty 12

0

0100

Simplicity 1706644SM

SPACER, .380/.377 I.D. x .750 O.D. x .970 Long

$8.99

$

In Stock, only 3 left!

0

0110

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 13

0

0120

Simplicity 7092017YP

BOLT, 1/2-20 X 1.15, 5/8 Shoulder

$7.99

$

In Stock, Qty 17

0

0130

Simplicity 703853

WASHER, 1/2

$5.49

$

In Stock, Qty 20+

0

0140

Simplicity 1733068SM

SPACER, 0.39 x 3/4 x 0.965

$13.99

$

Usually ships in 2-12 days

0

0150

Simplicity 5025145X14

BOLT, 5/16-18 X 1-3/4, CARRIAGE
(Superseded to 5025145X14YP)

$2.49

$

Usually ships in 2-12 days

0

0160

Simplicity 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 8

0

0170

Simplicity 703063

PIN, Sheer, 1/4 X 1 3/4

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 704039

CLIP, Hair Pin

$4.49

$

In Stock, Qty 19

0

0190

Simplicity 1761788YP

MOTOR, Electric

$113.99

$

In Stock, Qty 6

0

0200

Simplicity 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0210

Simplicity 1704116BMYP

BRACKET, Height of Cut

$12.99

$

In Stock, only 1 left!

0

0220

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 16

0

0230

Simplicity 1733308ASM

UPSTOP

$32.99

$

Usually ships in 2-12 days

0

0240

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0250

Simplicity 1733117ASM

BAR, Roller

$20.99

$

Usually ships in 2-12 days

0

0260

Simplicity 15X112MA

NUT, Hex Flange, Serrated, 1/2-20

$5.49

$

In Stock, Qty 20+

0

0270

Simplicity 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 20+

0

0280

Simplicity 1761411COYP

SHAFT, Rocker, 44"

$190.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1704081ASM

TRUNNION

$7.99

$

Usually ships in 2-12 days

0

0300

Simplicity 704241

PIN, Round Head, 3/8 X 2

$9.99

$

In Stock, only 4 left!

0

0310

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$

$

Not available

0330

Simplicity 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 5

0

0340

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0350

Simplicity 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG

$11.99

$

In Stock, Qty 20+

0

0370

Simplicity 1722036SM

ROLLER, Rounded, 4.1 LG, 650 ID, 2.50 OD Rounded End

$7.99

$

In Stock, Qty 20+

0

0380

Simplicity 771009

PUSHNUT

$3.99

$

In Stock, Qty 20+

0

0390

Simplicity 1602946SM

SPACER, .66 ID

$14.99

$

In Stock, Qty 20+

0

0400

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34, 1/2 Shoulder

$7.49

$

In Stock, Qty 20+

0

0410

Simplicity 703451

WASHER, Flat, 17/32 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0420

Simplicity 1677507SM

SLIDE, .803 x 1.7

$7.49

$

In Stock, Qty 20+

0

0430

Simplicity 1761552COYP

SHAFT, Roller, 44"

$255.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, only 4 left!

0

0450

Simplicity 1761477CKYP

ARM, Mount EHOC

$20.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1761594CJYP

UPSTOP

$32.99

$

Usually ships in 2-12 days

0

0470

Simplicity 7014334YP

SPACER, .625 OD X .388 ID X .801

$8.49

$

Usually ships in 2-12 days

0

0480

Simplicity 703858

BOLT, Carriage, 3/8-16 X 1 3/4

$4.99

$

In Stock, only 1 left!

0

0490

Simplicity 1960757SM

NUT, Hex, 1/4-20 L.H. Thread

$5.49

$

In Stock, Qty 11

0

0500

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0
