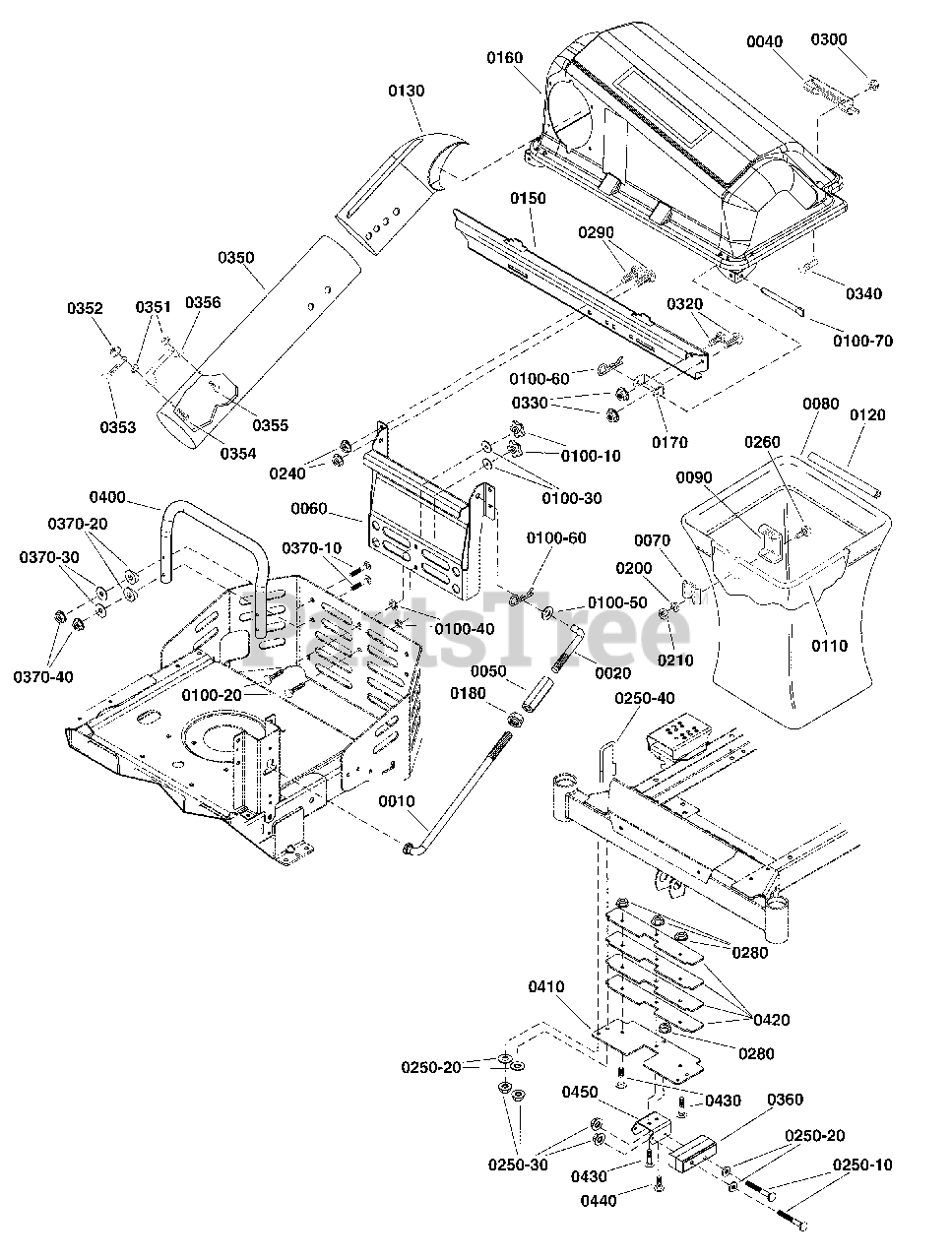

1697100-00 - Simplicity Twin Grass Catcher & Front Weight Grass Catcher Parts Diagram

Twin Grass Catcher & Front Weight

Grass Catcher Parts Diagram

  • Title

0010

Simplicity 1759374YP

ROD, Bag Support

$114.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1759375YP

ROD, Bag Support Upper

$103.99

$

Usually ships in 2-12 days

0

0040

Simplicity 054537MA

HANDLE, Plastic

$18.99

$

Usually ships in 2-12 days

0

0050

Simplicity 708163

NUT, Coupling

$39.99

$

Usually ships in 2-12 days

0

0060

Simplicity 84002548

MOUNT, Grass Catcher

$182.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1672023ASM

CLAMP, 10 Gauge for (2) 1-2" Diameter Rods

$11.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1703764SM

BAG, Grass, Cloth, 15-1/2 x 16 x 22-1/2

$96.99

$

In Stock, only 2 left!

0

0090

Simplicity 1703807ASM

HANGER, Grass Bag Hoop, 10 Gauge Twin

$21.99

$

In Stock, only 3 left!

0

--

Simplicity 80081097

HARDWARE BAG

Note: (Not a serviceable part. Order components individually)

$

$

Currently unavailable

0100-10

Simplicity 1733098SM

KNOB, Threaded, 5 Lobe, 5/16-18 x 3/4 Lg

$9.99

$

In Stock, only 2 left!

0

0100-20

Simplicity 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, only 1 left!

0

0100-30

Simplicity 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 12

0

0100-40

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0100-50

Simplicity 704123

WASHER, 1/2 Flat

$4.49

$

In Stock, Qty 17

0

0100-60

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0100-70

Simplicity 054407ZMA

PIN, Cover Hinge, 3/8 Dia.x 3-3/4

$14.99

$

In Stock, only 1 left!

0

0110

Simplicity 1733491SM

HOOP, Twin, 1/2 Dia.

$146.99

$

In Stock, only 2 left!

0

0120

Simplicity 1733709SM

EDGING, Tube Grass Bag

$16.99

$

In Stock, only 2 left!

0

0130

Simplicity 1733885SM

ELBOW, Upper Tube, Black Poly, Regular 3 Bag

$103.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1759713YP

CROSS SUPPORT, Twin

$159.99

$

Usually ships in 2-12 days

0

0160

Simplicity 84002550

COVER ASSEMBLY

$

$

Currently unavailable

0170

Simplicity 1736886BMYP

PIVOT, Hinge

$34.99

$

In Stock, only 1 left!

0

0180

Simplicity 703340

NUT, Hex, 1/2-13, GR5

$7.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0210

Simplicity 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 703793

NUT, Lock, Flange, 3/8-16

$4.49

$

In Stock, Qty 9

0

--

Simplicity 80081098

HARDWARE BAG

Note: (Not a serviceable part. Order components individually)

$

$

Currently unavailable

0250-10

Simplicity 703875

CAPSCREW, Hex Head 3/8-16 X 4, GR 5

$4.99

$

Usually ships in 2-12 days

0

0250-20

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 10

0

0250-30

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0250-40

Simplicity 1759656YP

BOLT, U, 3/8-16 X 4 1/4

$24.99

$

Usually ships in 2-12 days

0

0260

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0280

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0290

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, Qty 5

0

0300

Simplicity 703412

NUT, Nylock, #10-24, GR2

$4.49

$

In Stock, Qty 12

0

0320

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 2 left!

0

0330

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, only 2 left!

0

0340

Simplicity 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

In Stock, only 4 left!

0

0350

Simplicity 7104383SM

TUBE, Clear

$

$

Not available

0351

Simplicity 703914

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 18

0

0352

Simplicity 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0353

Simplicity 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0354

Simplicity 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0355

Simplicity 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0356

Simplicity 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 4 left!

0

0351

Simplicity 1928372SM

NUT, Lock, KEPS, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

0352

Simplicity 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0353

Simplicity 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0354

Simplicity 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0355

Simplicity 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0356

Simplicity 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 4 left!

0

0360

Simplicity 1759653YP

WEIGHT, Front

$176.99

$

Usually ships in 2-12 days

0

--

Simplicity 80081182

HARDWARE BAG

Note: (Not a serviceable part. Order components individually)

$

$

Currently unavailable

0370-10

Simplicity 704035

BOLT, Carriage, 5/16-18 X 2

$4.49

$

In Stock, only 2 left!

0

0370-20

Simplicity 1759361YP

SADDLE, Tube, 1.25 O.D.

$5.99

$

Usually ships in 2-12 days

0

0370-30

Simplicity 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 12

0

0370-40

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0400

Simplicity 1759315AYP

TUBE, Support

$68.99

$

Usually ships in 2-12 days

0

0410

Simplicity 84002401

WEIGHT, Lower

$78.99

$

Usually ships in 2-12 days

0

0420

Simplicity 84002402

WEIGHT, Upper

$41.99

$

Usually ships in 2-12 days

0

0430

Simplicity 772406

BOLT, Carriage, 3/8-16 x 2

$3.99

$

Usually ships in 2-12 days

0

0440

Simplicity 703814

BOLT, Carriage, 3/8-16 x 1

$4.49

$

In Stock, only 4 left!

0

0450

Simplicity 84002552

BRACKET, Weight Mount

$

$

Currently unavailable
