1697102-00 - Snapper Mulch Kit for 36" Mower Mulching Kit Parts Diagram

Mulch Kit for 36" Mower

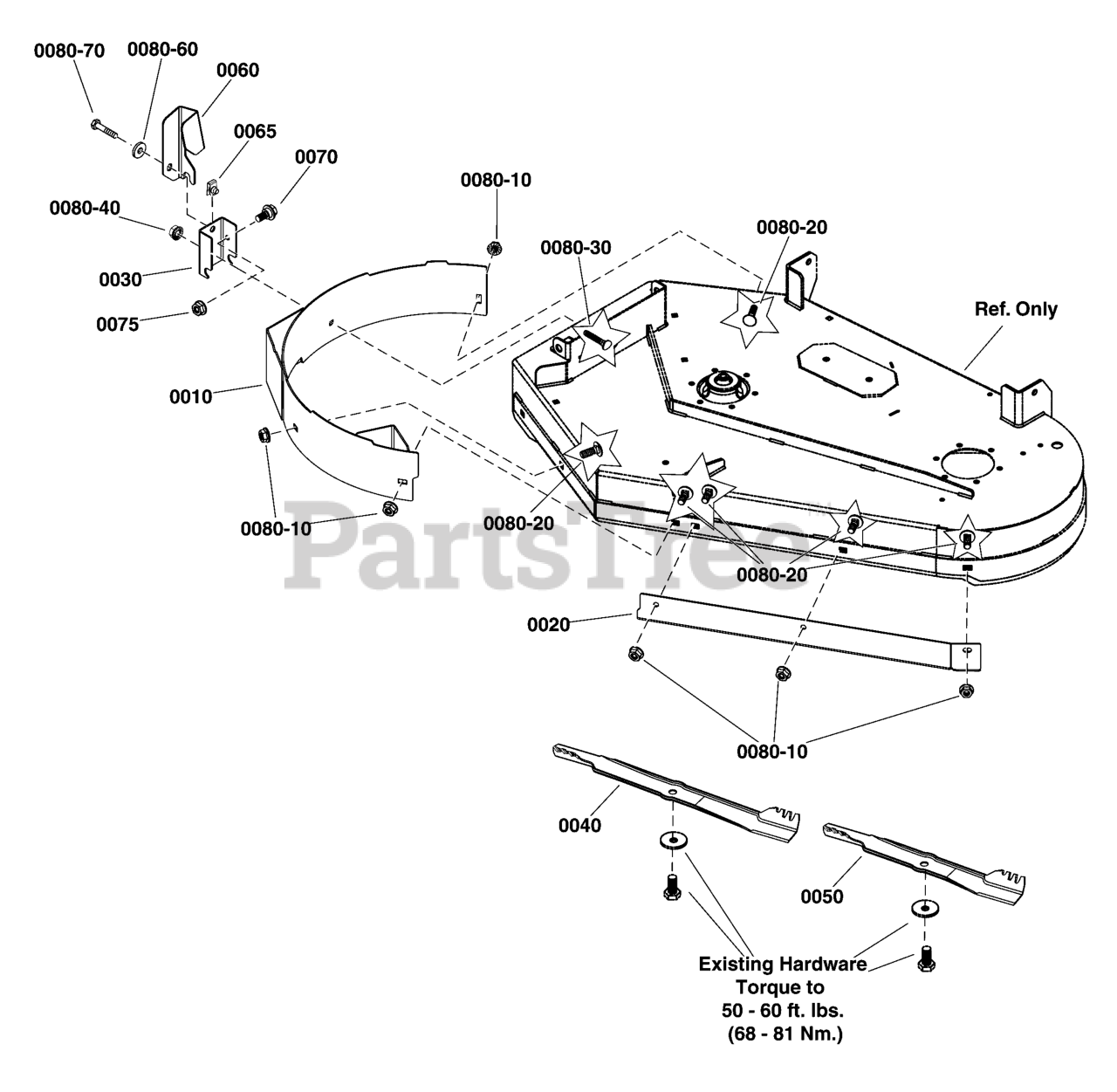

Mulching Kit Parts Diagram

  • Title

0010

Snapper 84002753

BAFFLE, Mulching

$219.99

$

Usually ships in 2-12 days

0

0020

Snapper 84002754

BAFFLE, Front, Trimside

$40.99

$

Usually ships in 2-12 days

0

0030

Snapper 84002755

BRACKET, Mulching

$9.99

$

Usually ships in 2-12 days

0

0040

Snapper 84002756

BLADE, Mulching, 22.24 LG

$52.99

$

Usually ships in 2-12 days

0

0050

Snapper 84002757

BLADE, Mulching, 14.42 LG

$45.99

$

Usually ships in 2-12 days

0

0060

Snapper 84002904

BRACKET, Deflector

$

$

Currently unavailable

0065

Snapper 1960717SM

NUT, Speed, 5/16-1

$6.49

$

Usually ships in 2-12 days

0

0070

Snapper 1752802YP

BOLT, Shoulder, 5/16-18 x 1.03LG

$5.99

$

Usually ships in 2-12 days

0

0075

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 9

0

0080

HARDWARE BAG

Note: (Not a serviceable part, includes Ref. Nos. 0080-10 through 0080-70. Order components separately)

$

$

Not available

0080-10

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 9

0

0080-20

Snapper 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 16

0

0080-30

Snapper 704035

BOLT, Carriage, 5/16-18 X 2

$4.49

$

In Stock, only 2 left!

0

0080-40

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 11

0

0080-60

Snapper 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0080-70

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 10

0
