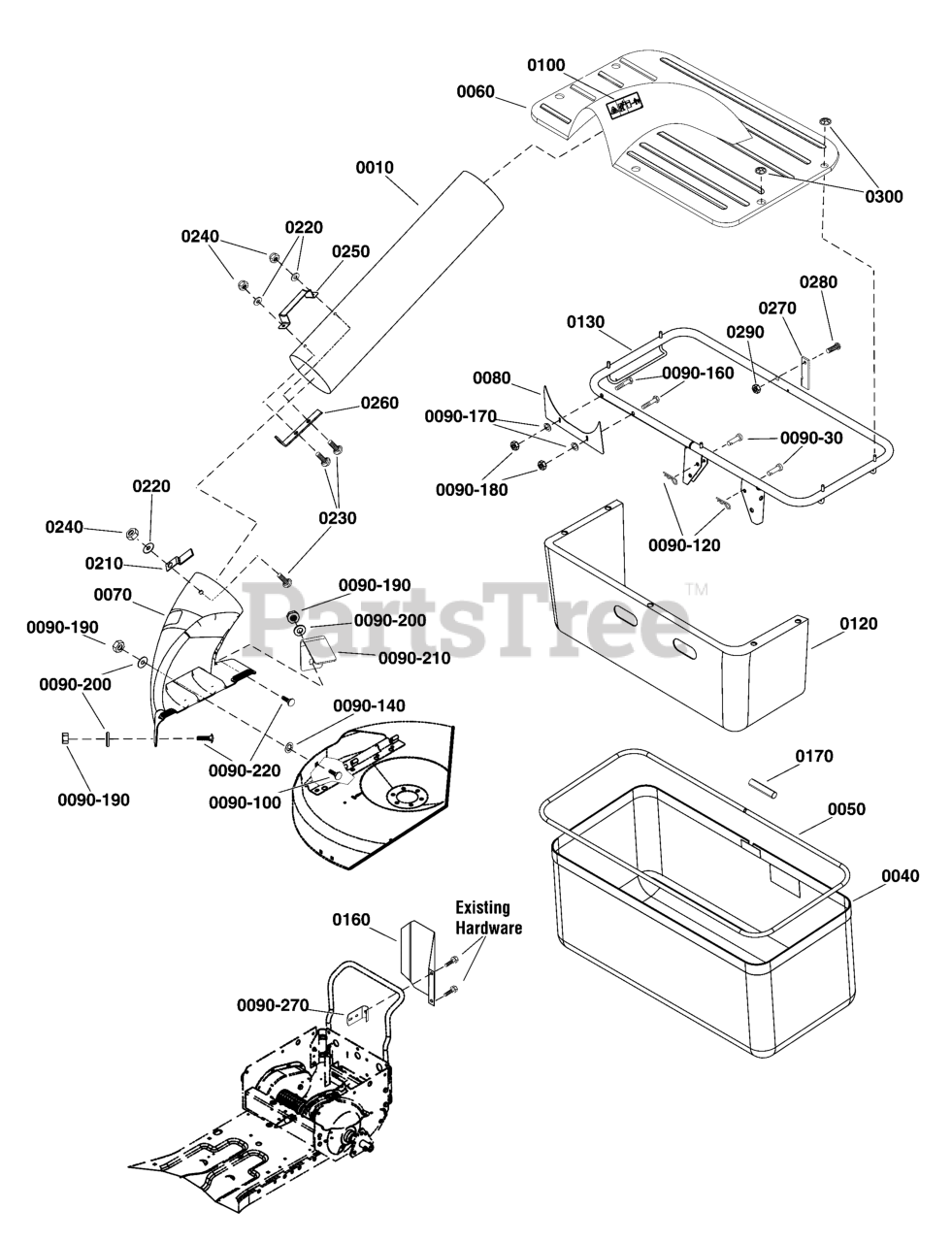

1697108A-00 - Snapper Grass Catcher Single Bag for Rider Grass Catcher Parts Diagram

Grass Catcher Single Bag for Rider

Grass Catcher Parts Diagram

  • Title

0010

Snapper 7027915YP

Tube, Grass

$137.99

$

Usually ships in 2-12 days

0

0040

Snapper 7024819YP

BAG, Grass, Single

$

$

Not available

0050

Snapper 7057248YP

ROD, Bag

$103.99

$

Usually ships in 2-12 days

0

0060

Snapper 7104012YP

TOP, Grass Container

$296.99

$

Usually ships in 2-12 days

0

0070

Snapper 7503112YP

DECK ADAPTER ASSEMBLY

$271.99

$

Usually ships in 2-12 days

0

0080

Snapper 7063287BMYP

SHIELD, Grass Catcher

$

$

Not available

--

HARDWARE BAG

Note: (Not a serviceable part). Order components separately.

$

$

Not available

0090-30

Snapper 704029

PIN, Clevis, 5/16 X 1.68

$4.49

$

In Stock, Qty 6

0

0090-100

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0090-120

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0090-140

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0090-160

Snapper 703234

CAPSCREW, Hex Head, 1/4-20 X 1 1/2, G5

$4.49

$

In Stock, only 3 left!

0

0090-170

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

0090-180

Snapper 704319

NUT, 1/4-20 Hex Top Lock, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0090-190

Snapper 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 12

0

0090-200

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0090-210

Snapper 7301385BMYP

BRACKET, Mounting

$24.99

$

Usually ships in 2-12 days

0

0090-220

Snapper 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 16

0

0090-270

Snapper 7031954YP

SUPPORT, Bumper

$13.99

$

Usually ships in 2-12 days

0

0100

Snapper 7104709YP

DECAL, Thrown Objects

$23.99

$

Usually ships in 2-12 days

0

0120

Snapper 7016108YP

SKIRT, Bagger Dust

$39.99

$

In Stock, only 1 left!

0

0130

Snapper 7047973YP

FRAME, Single Bag Catcher

$204.99

$

In Stock, only 1 left!

0

0160

Snapper 7071677BMYP

GUARD, Muffler

$

$

Currently unavailable

0170

Snapper 7012556YP

CONNECTOR, 1/2 X 3

$7.49

$

Usually ships in 2-12 days

0

0210

Snapper 7031951YP

LATCH, Chute

$5.99

$

In Stock, Qty 5

0

0220

Snapper 703462

WASHER, Internal Tooth, 1/4

$4.49

$

In Stock, Qty 13

0

0230

Snapper 703101

BOLT, Carriage, 1/4-20 x 3/4 , GR5

$3.99

$

In Stock, Qty 5

0

0240

Snapper 703127

NUT, Hex, 1/4-20

$3.49

$

In Stock, only 3 left!

0

0250

Snapper 7037745YP

HANDLE, Tube

$10.99

$

Usually ships in 2-12 days

0

0260

Snapper 7031952YP

BASE, Handle Tube

$7.49

$

In Stock, only 2 left!

0

0270

Snapper 7031725YP

LATCH

$5.49

$

Usually ships in 2-12 days

0

0280

Snapper 704136

PANEL, Control

$

$

Currently unavailable

0290

Snapper 703937

NUT, Ny Lock, #10-32

$3.49

$

Usually ships in 2-12 days

0

0300

Snapper 704315

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0
