1697211-00 - Snapper 82V Edger Attachment Edger Parts Diagram

82V Edger Attachment

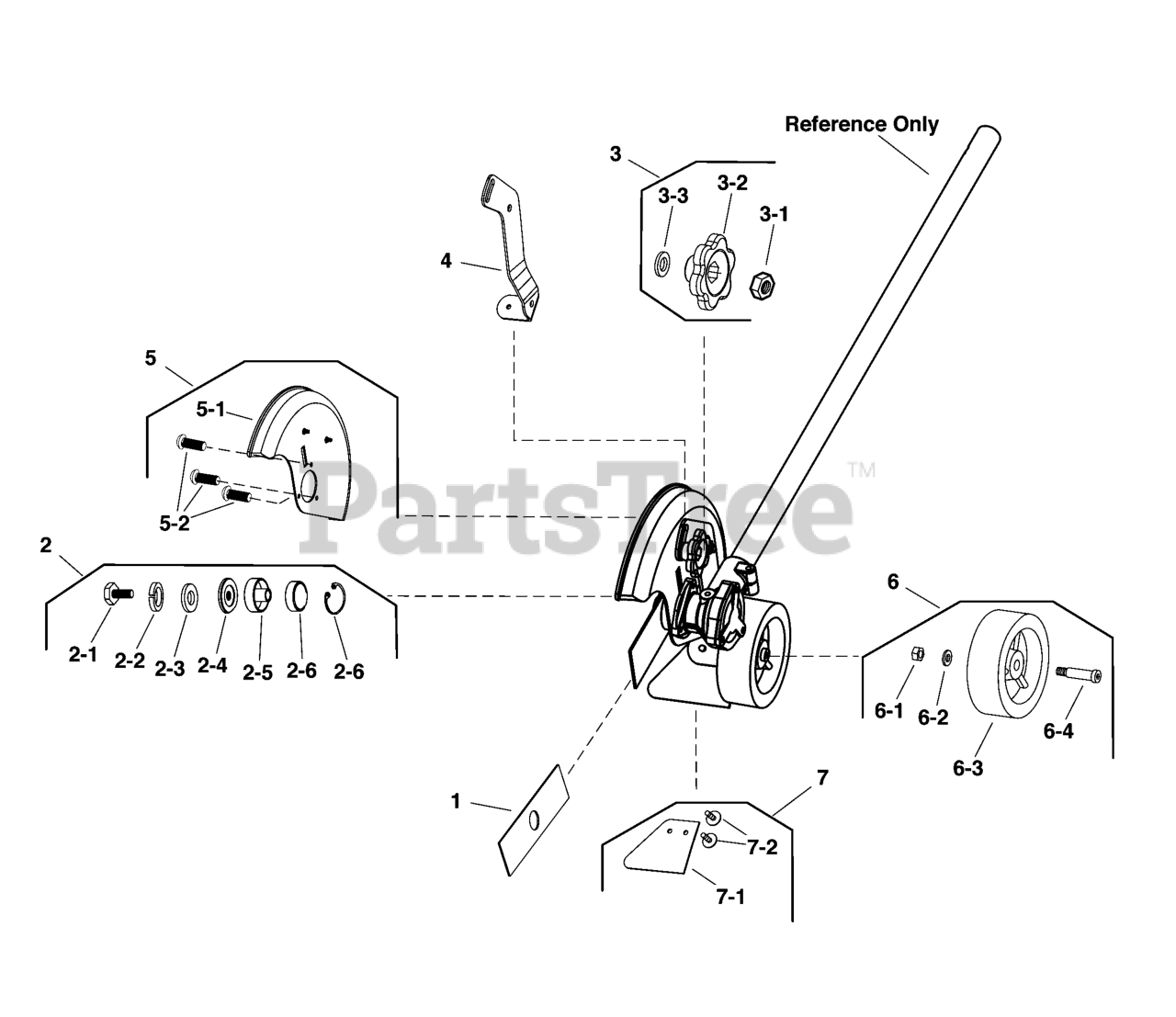

Edger Parts Diagram

  • Title

1

Snapper 84004480

BLADE, Edger

$11.99

$

In Stock, only 1 left!

0

2

Snapper 84004481

KIT, Hardware, Blade

Note: (Includes Ref 2-1 through 2-7)

$10.99

$

Usually ships in 2-12 days

0

2-1

BOLT, M8*20

$

$

Not available

2-2

WASHER, GB/T 93

$

$

Not available

2-3

WASHER, GB/T 97.1

$

$

Not available

2-4

WASHER, Spline

$

$

Not available

2-5

BLADE, Insert

$

$

Not available

2-6

SEAL, GB/T9877.2, 17*32*9

$

$

Not available

2-7

RING, Retaining, GB/T893.1 32

$

$

Not available

3

Snapper 84004482

KIT, Knob, Guard

Note: (Includes Ref 3-1 through 3-3)

$3.99

$

Usually ships in 2-12 days

0

3-1

NUT, GB923, M8

$

$

Not available

3-2

KNOB

$

$

Not available

3-3

WASHER, GB/T 96.1

$

$

Not available

4

Snapper 84004483

HEIGHT ADJUST, Blade

$25.99

$

Usually ships in 2-12 days

0

5

Snapper 84004484

KIT, Guard, Blade

Note: (Includes Ref 5-1 & 5-2)

$31.99

$

In Stock, only 1 left!

0

5-1

BOLT, GB/T9074.4, M5*13

$

$

Not available

5-2

GUARD, Blade

$

$

Not available

6

Snapper 84004485

KIT, Wheel

Note: (Includes Ref 6-1 through 6-4)

$

$

Currently unavailable

6-1

NUT, GB/T889.1, M8*1.25

$

$

Not available

6-2

WASHER, GB/T 97.1

$

$

Not available

6-3

WHEEL

$

$

Not available

6-4

BOLT, GB/T5789, M8*50

$

$

Not available

7

Snapper 84004486

KIT, Guard

Note: (Includes Ref 7-1 & 7-2)

$3.99

$

Usually ships in 2-12 days

0

7-1

GUARD, Blade

$

$

Not available

7-2

RIVET, Push-In

$

$

Not available
